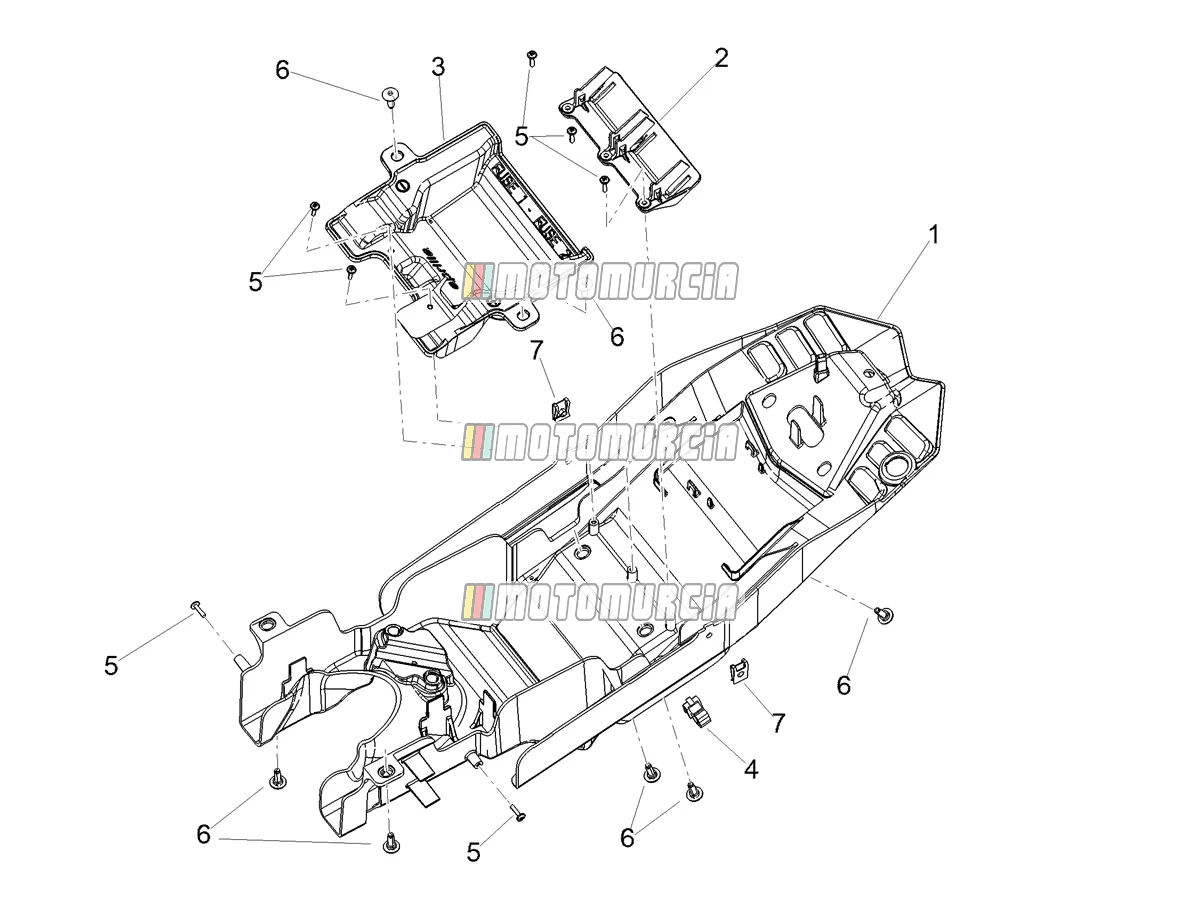

Exploded view — Saddle Compartment

‹ Back to model

Aprilia Tuono 660 2021

Aprilia Tuono 660 2021

Saddle Compartment

Products

1 Saddle supp.lower lockup Available 2B007272

Under Seat Cover Tray Piaggio Group · 2B007272 Available

€ 66,93

2 Fuse block support Available 2B006602

Bracket Piaggio Group · 2B006602 Available

€ 11,88

3 Battery cover Available 2B006672

Battery Cover Piaggio Group · 2B006672 Available

€ 20,26

4 Clamp Available CM013201

Clamp Piaggio Group · CM013201 Available

€ 1,32

5 Screw Available AP8150413

Thread Screw 3,9x14 mm, stainless steel Piaggio Group · AP8150413 · Quantity needed: 7 Available

€ 1,69

6 Screw Available 2B014101

Screw Piaggio Group · 2B014101 · Quantity needed: 8 Available

€ 3,78

7 Clip nuts (M5) Available AP8102375

Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 2 Available

€ 2,47
