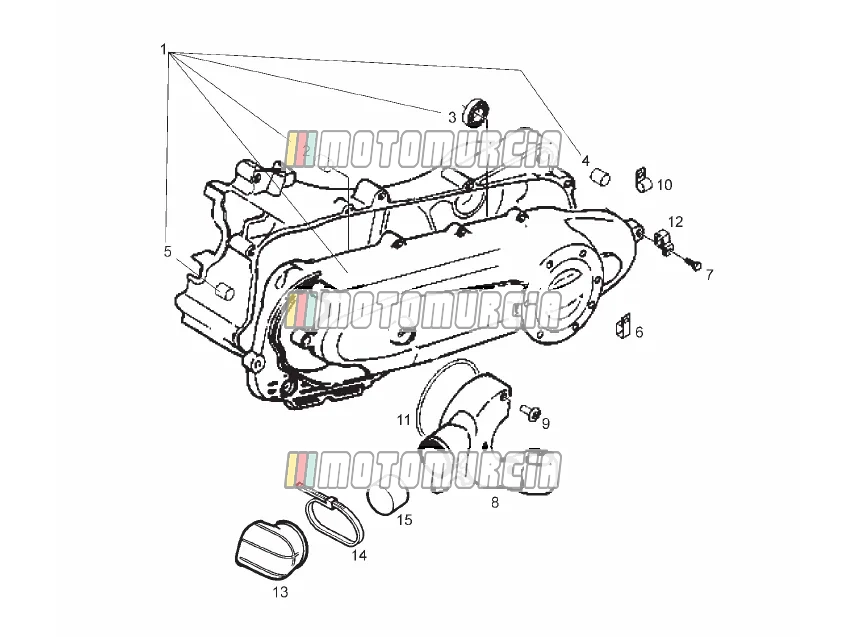

Exploded view — Side Cover

Products

1 Transmission cover 843115 No longer available

• 843115 Transmission cover
  No longer available

2 Bush Ø8xØ12x8 Available 431860

•

  Bronze Bushes 8x12x8 Piaggio Group · 431860 Available · Shipped in 3–5 working days

  € 1,65

  Add to cart

3 Bearing Available 82521R

•

  Ball bearing 638 Z, 8x28x9 mm Piaggio Group · 82521R Available · Shipped in 3–5 working days

  € 23,82

  Add to cart

4 Dowel pin Backorder B015956

•

  Adapter Sleeve 9,5x15 Piaggio Group · B015956 Backorder · Shipped in 2–4 weeks

  € 1,32

  Add to cart

5 Bush Available 286209

•

  Bronze Bushes Piaggio Group · 286209 Available · Shipped in 3–5 working days

  € 2,93

  Add to cart

6 Clamp Available 271451

•

  Clamp Piaggio Group · 271451 Available · Shipped in 3–5 working days

  € 3,21

  Add to cart

7 Screw Available B016792

• • Touring version


  Flanged Screw M6x30 Piaggio Group · B016792 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

8 Cooling Cover 969804 No longer available

• 969804 Cooling Cover
  No longer available

9 Screw Available 435295

•

  Screw Piaggio Group · 435295 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

10 Clamp Available 482291

•

  Clamp Piaggio Group · 482291 Available · Shipped in 3–5 working days

  € 1,51

  Add to cart

11 Gasket Available 435251

•

  Oil seal Piaggio Group · 435251 Available · Shipped in 3–5 working days

  € 9,22

  Add to cart

12 4 - Hose clamp Available 844964

•

  Clamp Piaggio Group · 844964 Available · Shipped in 3–5 working days

  € 2,27

  Add to cart

13 Hose Backorder 969899

•

  Sleeve Piaggio Group · 969899 Backorder · Shipped in 2–4 weeks

  € 10,85

  Add to cart

14 Hose clamp 290X4,8 Backorder 00F00900531

• • Year of manufacture: 2011


  Clamp 290x4,8 mm Piaggio Group · 00F00900531 Backorder · Shipped in 2–4 weeks

  € 5,60

  Add to cart

15 Air filter - belt cover Available 969921

•

  Air Filter Insert Piaggio Group · 969921 Available · Shipped in 3–5 working days

  € 18,15

  Add to cart
