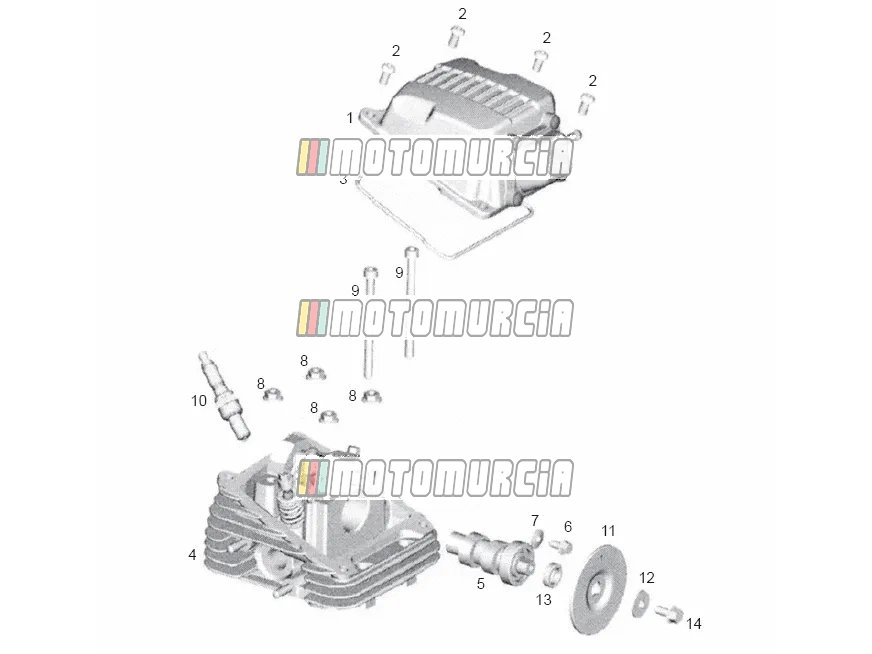

Exploded view — Cylinder Head Cover

Products

1 Cover 840025 No longer available

• 840025 Cover
  No longer available

2 Screw Backorder 840541

•

  Screw Piaggio Group · 840541 Backorder

  € 2,24

  Add to cart

3 Gasket - head cover 843684 No longer available

• 843684 Gasket - head cover
  No longer available

4 Cylinder head 834760 No longer available

• 834760 Cylinder head
  No longer available

5 Camshaft 969248 No longer available

• 969248 Camshaft
  No longer available

6 Screw Available 484123

•

  Flanged Screw Piaggio Group · 484123 Available

  € 0,99

  Add to cart

7 Belleville spring d.5,2x15 Backorder 969315

•

  Washer 5,2x15 mm Piaggio Group · 969315 Backorder

  € 0,99

  Add to cart

8 Nut Available 969224

•

  Standard nut Piaggio Group · 969224 Available

  € 0,99

  Add to cart

9 Screw Available 319242

•

  Screw M6x80 Piaggio Group · 319242 Available

  € 1,77

  Add to cart

10 Spark plug (Champion) Available 438027

•

  Spark Plugs RG4HC Piaggio Group · 438027 Available

  € 14,98

  Add to cart

11 Timing system gear Available 434943

•

  Rear Sprocket Piaggio Group · 434943 Available

  € 11,99

  Add to cart

12 Washer Available 436695

•

  Disk Spring 6,4x20x2 mm Piaggio Group · 436695 Available

  € 2,47

  Add to cart

13 Spacer Available 969265

•

  Spacer Piaggio Group · 969265 Available

  € 2,47

  Add to cart

14 Screw Available B016426

•

  Flanged Screw M6x14 Piaggio Group · B016426 Available

  € 1,48

  Add to cart
