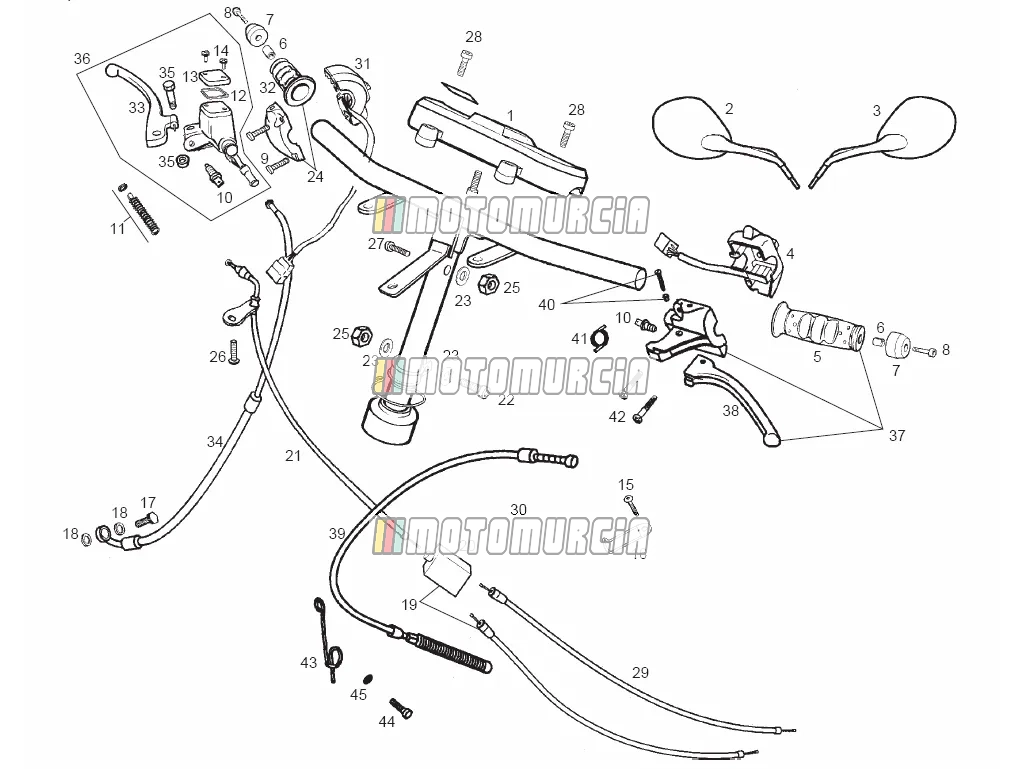

Exploded view — Handlebar - Controls

Products

01 LOWER TRIPLE CLAMP 00G00901671 No longer available

• 00G00901671 LOWER TRIPLE CLAMP
  No longer available

02 MIRROR RH. 00G02207671 No longer available

• 00G02207671 MIRROR RH.
  No longer available

03 MIRROR LH. 00G04608921 No longer available

• 00G04608921 MIRROR LH.
  No longer available

04 INDICATOR SWITCH ASSY 00G01701701 No longer available

• 00G01701701 INDICATOR SWITCH ASSY
  No longer available

05 REAR BRAKE LEVER GRIP 00G00902071 No longer available

• 00G00902071 REAR BRAKE LEVER GRIP
  No longer available

06 Washer 00G05800251 No longer available

• 00G05800251 Washer
  No longer available

07 COUNTERWEIGHT, HANDLEBAR 00G02102921 No longer available

• 00G02102921 COUNTERWEIGHT, HANDLEBAR
  No longer available

08 HEX.SOCKET-HEAD SCREW5M80X45 00004154500 No longer available

• 00004154500 HEX.SOCKET-HEAD SCREW5M80X45
  No longer available

09 THROTTLE GRIP CAP SECUR SCREW 00F00901151 No longer available

• 00F00901151 THROTTLE GRIP CAP SECUR SCREW
  No longer available

10 Brake light switch Available 00D01000701

• • AJP Industrial
  • J.Juan


  Stop light switch, J.Juan Piaggio Group · 00D01000701 Available · Shipped in 3–5 working days

  € 5,23

  Add to cart

  Alternatives from other brands



  Stop Light Switch Screw-on Model Domino · 22182004 Available · Shipped in 1–2 working days

  € 5,59

  Add to cart

11 Brake repair set 00H02101811 No longer available

• 00H02101811 Brake repair set
  No longer available

12 BRAKE FLUID RESERVOIR CAP SEAL Available 00H02100861

•

  Gasket Piaggio Group · 00H02100861 Available · Shipped in 3–5 working days

  € 17,74

  Add to cart

13 Brake fluid reservoir cover 00H02100191 No longer available

• 00H02100191 Brake fluid reservoir cover
  • AJP Industrial
  No longer available

14 Screw 4M80X12 00014041200 No longer available

• 00014041200 Screw 4M80X12
  No longer available

15 Screw Available 969296

• • ABS version
  • E3
  • E4


  Flanged Screw M6x10 Piaggio Group · 969296 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

16 Plate 00G03702181 No longer available

• 00G03702181 Plate
  No longer available

17 Oil pipe screw Available 862494

•

  Hollow screw Piaggio Group · 862494 Available · Shipped in 3–5 working days

  € 9,33

  Add to cart

18 Washer gasket Available 867238

• • J.Juan
  • J.Juan brake system


  Shim Piaggio Group · 867238 Available · Shipped in 3–5 working days

  € 4,85

  Add to cart

19 REAR THROTTLE CABLE/SLEEVE S/A 00G00900401 No longer available

• 00G00900401 REAR THROTTLE CABLE/SLEEVE S/A
  No longer available

20 THROTTLE CABLE CONNECTOR BOX Backorder 00G00901861

•

  Cable splitter Piaggio Group · 00G00901861 Backorder · Shipped in 2–4 weeks

  € 18,60

  Add to cart

21 CTO.CABLE FUNDA GAS PR.GP1 00G00910171 No longer available

• 00G00910171 CTO.CABLE FUNDA GAS PR.GP1
  No longer available

22 Screw Available 00000004845

•

  Allen screw Piaggio Group · 00000004845 Available · Shipped in 3–5 working days

  € 3,19

  Add to cart

23 Washer Available 00000031080

•

  Washer Ø 8,00 mm Piaggio Group · 00000031080 Available · Shipped in 3–5 working days

  € 1,88

  Add to cart

24 THROTTLE TWIST GRIP ASSY Available 00G00902081

•

  Throttle grip Piaggio Group · 00G00902081 Available · Shipped in 3–5 working days

  € 33,11

  Add to cart

25 Nut Backorder 00000023080

• • Year of manufacture: 2011


  Standard nut M8 Piaggio Group · 00000023080 Backorder · Shipped in 2–4 weeks

  € 1,44

  Add to cart

26 Screw Available 00012051200

•

  Screw M5 Piaggio Group · 00012051200 Available · Shipped in 3–5 working days

  € 1,72

  Add to cart

27 Screw 00002084011 No longer available

• 00002084011 Screw
  No longer available

28 Screw 6M100X12 Backorder 00000004612

• • Year of manufacture: 2011


  Screw M6 Piaggio Group · 00000004612 Backorder · Shipped in 2–4 weeks

  € 1,59

  Add to cart

29 Doub. carb. trans. Available 582256

• • CH version, free speed


  Throttle cable Piaggio Group · 582256 Available · Shipped in 3–5 working days

  € 28,68

  Add to cart

30 CABLE ASSY, CHOKE. Backorder 00G00900651

•

  Starter cable Piaggio Group · 00G00900651 Backorder · Shipped in 2–4 weeks

  € 14,29

  Add to cart

31 HEADLAMP DIP SWITCH Available 00G02301171

•

  Light switch Piaggio Group · 00G02301171 Available · Shipped in 3–5 working days

  € 36,71

  Add to cart

32 THROTTLE TWIST GRIP 00G00902091 No longer available

• 00G00902091 THROTTLE TWIST GRIP
  No longer available

33 Brake lever 00G00901201 No longer available

• 00G00901201 Brake lever
  No longer available

34 FRONT BRAKE FLUID TUBE ASSY 00G00904751 No longer available

• 00G00904751 FRONT BRAKE FLUID TUBE ASSY
  No longer available

35 SCREW ASSY 00F05800021 No longer available

• 00F05800021 SCREW ASSY
  No longer available

36 Brake hydraulic pump Available 00G02102081

•

  Master brake cylinder right Piaggio Group · 00G02102081 Available · Shipped in 3–5 working days

  € 257,19

  Add to cart

37 LEFT LEVER BRACKET 00G02101611 No longer available

• 00G02101611 LEFT LEVER BRACKET
  No longer available

38 Clutch lever Available 00F00910291

• • Maintenance kit


  Brake Lever left Piaggio Group · 00F00910291 Available · Shipped in 3–5 working days

  € 21,66

  Add to cart

39 REAR BRAKE CABLE/SLEEVE ASSY 00G00905431 No longer available

• 00G00905431 REAR BRAKE CABLE/SLEEVE ASSY
  No longer available

40 LEVER HINGE PIN SCREW ASSY 00G00900211 No longer available

• 00G00900211 LEVER HINGE PIN SCREW ASSY
  No longer available

41 Brake return spring Available 177072

•

  Spring Piaggio Group · 177072 Available · Shipped in 3–5 working days

  € 1,52

  Add to cart

43 REAR BRAKE SPRING GUIDE 00G00901531 No longer available

• 00G00901531 REAR BRAKE SPRING GUIDE
  No longer available

44 Washer Available 00000031060

•

  Washer Ø 6,00 mm Piaggio Group · 00000031060 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

45 Screw Backorder 00004061600

•

  Screw M6x16 Piaggio Group · 00004061600 Backorder · Shipped in 2–4 weeks

  € 2,04

  Add to cart
