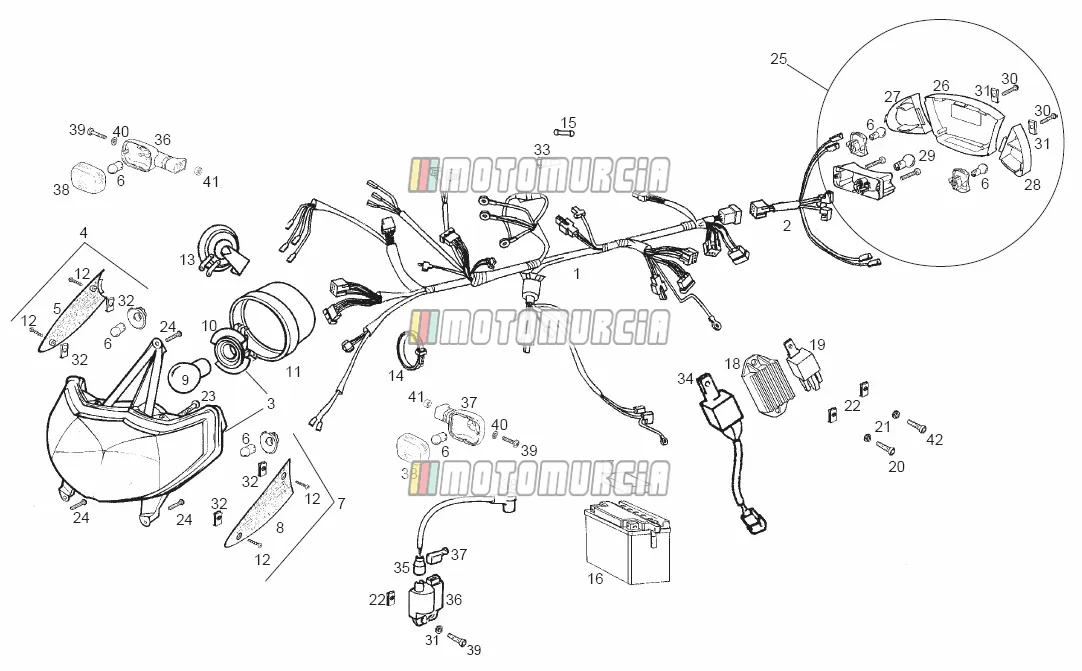

Exploded view — Electrical System
‹ Back to model
Derbi GP Series O2 Export 2001
Products
01 CTO.INSTAL.ELECT.PRED.O2 PG
-
00G01030301 CTO.INSTAL.ELECT.PRED.O2 PGNo longer available
02 TAILLIGHT WIRING ASSY PREDATOR
-
00G05702051 TAILLIGHT WIRING ASSY PREDATORNo longer available
03 Headlight
-
00G01012011 HeadlightNo longer available
04 FR RH INDICATOR LIGHT ASSY PRE Backorder
-
Indicator front, right Piaggio Group · 00G01703021 Backorder · Shipped in 2–4 weeks€ 22,19
05 Front right jewel Backorder
-
00G01703101 Front right jewelIndicator front, right Piaggio Group · 00G01703021 ↻ Replaces 00G01703101, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks€ 22,19
06 Lamp Available
-
0000A517011 LampBulbs Bulb, 12 V, 10 W, orange Piaggio Group · 584332 ↻ Replaces 0000A517011, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 4,79
07 FR LEFT INDICATOR LIGHT ASSY P Backorder
-
Indicator front, left Piaggio Group · 00G01703311 Backorder · Shipped in 2–4 weeks€ 22,19
08 FRONT LEFT INDICATOR LIGHT LEN Backorder
-
Indicator Glass front, left Piaggio Group · 00G01703071 Backorder · Shipped in 2–4 weeks€ 11,72
09 Lamp Available
-
Bulbs Bulb, 12 V, 35/35 W Piaggio Group · 00H01000131 Available · Shipped in 3–5 working days€ 10,53
10 HEADLIGHT BULB SOCKET
-
00G01003111 HEADLIGHT BULB SOCKETNo longer available
11 HEADLIGHT BULBHOLDER PROT PRED
-
00G05700141 HEADLIGHT BULBHOLDER PROT PREDNo longer available
12 INDICATOR LENS SECURING SCREW
-
00G01700091 INDICATOR LENS SECURING SCREWNo longer available
13 Horn
-
00F01001311 HornNo longer available
14 Hose clamp 290X4,8 Backorder
-
Clamp 290x4,8 mm Piaggio Group · 00F00900531 Backorder · Shipped in 2–4 weeks€ 5,60
15 00F01010911 Available
-
Fuse 4 A Piaggio Group · 00F01010911 Available · Shipped in 3–5 working days€ 2,87
16 Battery
-
00G03300401 BatteryNo longer available
17 FUEL TANK SIDE STOP
-
00G06300771 FUEL TANK SIDE STOPNo longer available
18 Regulator Available
-
00G01002841 RegulatorRegulator, with flasher relay Piaggio Group · 58096R ↻ Replaces 00G01002841, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 82,72
19 Ignition coil Available
-
00G03901011 Ignition coilStarting Relay 12 V, 80 A Piaggio Group · 58115R ↻ Replaces 00G03901011, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 24,91
20 Screw Available
-
Allen screw M5 Piaggio Group · 00000004515 Available · Shipped in 3–5 working days€ 1,44
21 Washer D5 Available
-
00000031050 Washer D5Shim Piaggio Group · 847226 ↻ Replaces 00000031050, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 0,99
22 Nut D5 Available
-
00H01500691 Nut D5Sheet nut M5 Piaggio Group · 00G04401462 ↻ Replaces 00H01500691, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 1,48
23 HEADLIGHT ADJUSTER SCREW PREDA
-
00G01002101 HEADLIGHT ADJUSTER SCREW PREDANo longer available
24 SPHER HD ALLEN SCREW
-
00008151600 SPHER HD ALLEN SCREWNo longer available
25 Taillight assy.
-
00G01006321 Taillight assy.No longer available
26 Taillight lens Backorder
-
Tail light cover Piaggio Group · 00G01003341 Backorder · Shipped in 2–4 weeks€ 45,22
27 LENS, TURN SIGNAL REAR LH Backorder
-
Indicator Glass rear, right Piaggio Group · 00G01703891 Backorder · Shipped in 2–4 weeks€ 11,02
28 LENS, TURN SIGNAL REAR LH
-
00G01703901 LENS, TURN SIGNAL REAR LHNo longer available
29 BULB, TAILLIGHT/STOP
-
00E01020371 BULB, TAILLIGHT/STOPNo longer available
30 Screw Available
-
Screw Piaggio Group · 00G01001571 Available · Shipped in 3–5 working days€ 2,49
31 Nut D6 Available
-
00D01501371 Nut D6Sheet nut Piaggio Group · 254485 ↻ Replaces 00D01501371, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 2,04
32 Nut
-
00F01700051 NutNo longer available
33 FUSE HOLDER Backorder
-
Fuse Holder Piaggio Group · 00G02300811 Backorder · Shipped in 2–4 weeks€ 67,23
34 Flasher relay Available
-
Indicator Relay Piaggio Group · 00H05700481 Available · Shipped in 3–5 working days€ 43,64
35 Insulating cap Available
-
Cap Piaggio Group · 231571 Available · Shipped in 3–5 working days€ 3,84
36 CDI unit Available
-
Ignition Coil Piaggio Group · 00G03310171 Available · Shipped in 3–5 working days€ 81,78
37 Cap Available
-
Insulating Cover CDI Piaggio Group · 255256 Available · Shipped in 3–5 working days€ 5,08
38 Spark plug cap Available
-
00G03303271 Spark plug capSpark Plug Connector Piaggio Group · 825186 ↻ Replaces 00G03303271, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 29,05
39 SCREW M5X25
-
00000004525 SCREW M5X25No longer available
40 Screw Available
-
Allen screw M5 Piaggio Group · 00000004512 Available · Shipped in 3–5 working days€ 7,07
