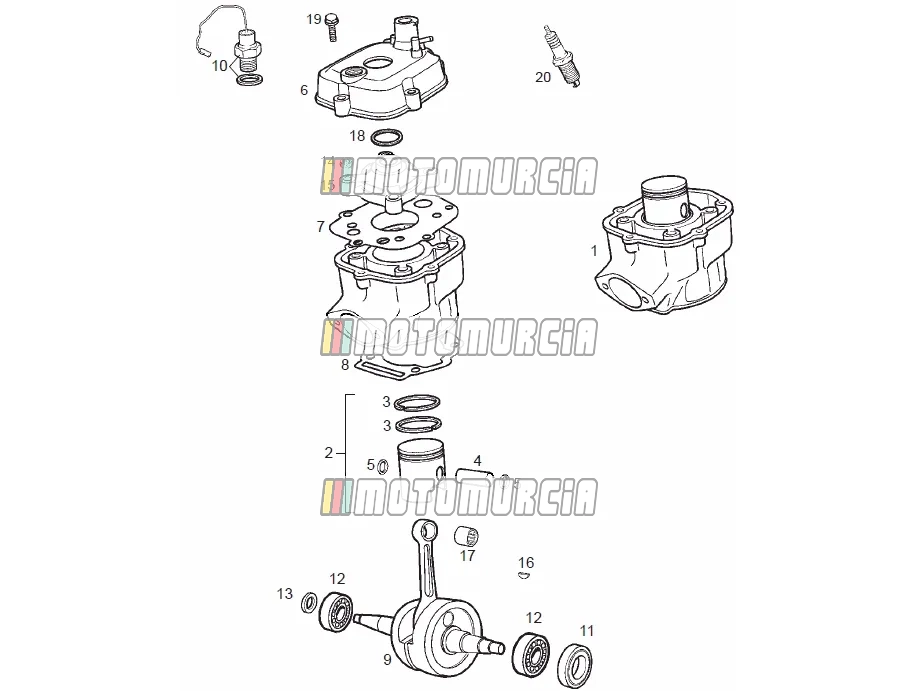

Exploded view — Cylinder - Piston

Products

1 Cylinder kit (D=40 mm, 50 ccm - D50B) Available 1A0097335

•

  Cylinder cast iron Piaggio Group · 1A0097335 Available

  € 370,22

  Add to cart

2 Piston assy D-V/FE Available 8770700004

•

  Piston für Guss Zylinder Piaggio Group · 8770700004 Available

  € 75,78

  Add to cart
•

  Piston für Guss Zylinder Piaggio Group · 8770700002 Available

  € 75,78

  Add to cart
•

  Piston für Guss Zylinder Piaggio Group · 8770700003 Backorder

  € 75,78

  Add to cart
•

  Piston für Guss Zylinder Piaggio Group · 8770700001 Backorder

  € 75,78

  Add to cart

3 2 - Ring Available 877072

•

  Piston Ring Piaggio Group · 877072 Available

  € 26,34

  Add to cart

4 Piston pin Backorder 847012

•

  Piston Pin Piaggio Group · 847012 Backorder

  € 36,36

  Add to cart

5 Seeger Available 878519

•

  Piston Clip Piaggio Group · 878519 Available

  € 12,37

  Add to cart

6 Head cover CM1519014 No longer available

• CM1519014 Head cover
  No longer available

7 Cylinder head gasket 847009 No longer available

• 847009 Cylinder head gasket
  No longer available

8 10 - Gasket - cylinder base (0,75 mm) Available CM164903

•

  Cylinder Base Gasket thickness: 0,70 mm Piaggio Group · CM164903 Available

  € 10,95

  Add to cart
•

  Cylinder Base Gasket thickness: 0,50 mm Piaggio Group · CM164902 Available

  € 9,69

  Add to cart
•

  Cylinder Base Gasket thickness: 0,30 mm Piaggio Group · CM164901 Available

  € 9,12

  Add to cart

9 Crankshaft Available 83052R

•

  Crankshaft Piaggio Group · 83052R Available

  € 642,04

  Add to cart

10 Water temperature switch Available 880325

•

  Water temperature probe Piaggio Group · 880325 Available

  € 23,76

  Add to cart

12 Crankshaft bearing Available 8471726

•

  Crankshaft bearing 6204 C4, 20x47x14 mm Piaggio Group · 8471726 Available

  € 23,17

  Add to cart

13 Oil seal Available 847020

•

  Crankshaft seal Piaggio Group · 847020 Available

  € 14,02

  Add to cart

14 Nut (M7x1) Available 436947

•

  Standard nut Piaggio Group · 436947 Available

  € 1,43

  Add to cart

15 Cylinder head 8470084 No longer available

• 8470084 Cylinder head
  No longer available

16 Woodruff key Available 847215

•

  Alternator wedge Piaggio Group · 847215 Available

  € 5,38

  Add to cart

17 Needle bearing (12x15x14,8) Available 847529

•

  Big end bearing 12x15x15 mm Piaggio Group · 847529 Available

  € 22,74

  Add to cart

18 O-Ring Available 1A014908

•

  Cylinder Head Gasket Piaggio Group · 1A014908 Available

  € 5,29

  Add to cart

19 Screw Available B016774

•

  Hexagon Screw M6x25 Piaggio Group · B016774 Available

  € 1,48

  Add to cart

20 Spark plug Available 847085

•

  Spark Plugs B8ES Piaggio Group · 847085 Available

  € 6,98

  Add to cart
