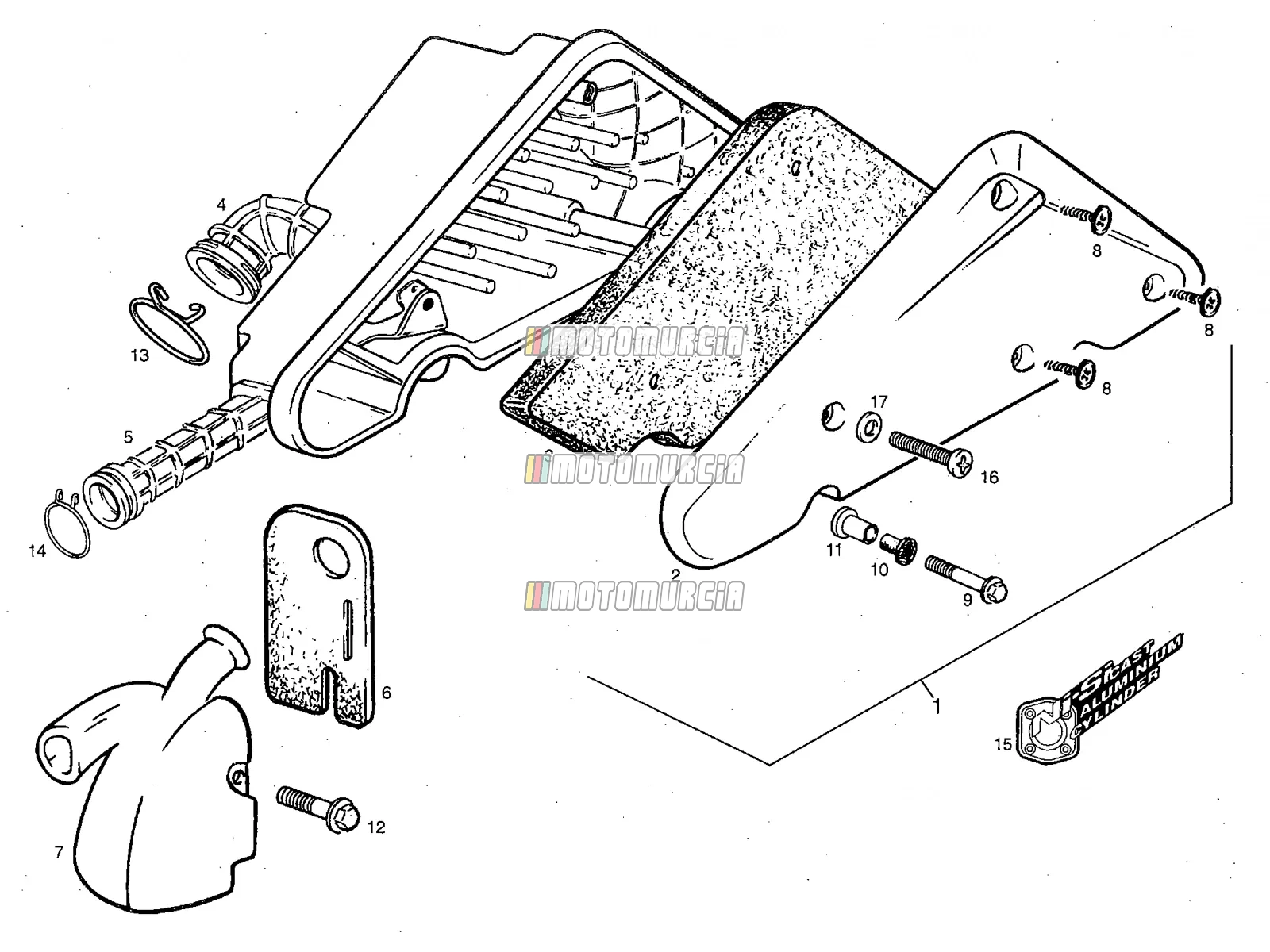

Exploded view — Air Filter

Products

01 FILTER BOX ASSY 00G01809541 No longer available

• 00G01809541 FILTER BOX ASSY
  No longer available

02 FILTER BOX COVER 00G00501771 No longer available

• 00G00501771 FILTER BOX COVER
  No longer available

03 Air filter 00G03202251 No longer available

• 00G03202251 Air filter
  No longer available

04 AIR INTAKE HOSE Backorder 00G03203261

•

  Intake Manifold Piaggio Group · 00G03203261 Backorder

  € 33,63

  Add to cart

05 BREATHER TUBE 00G03206491 No longer available

• 00G03206491 BREATHER TUBE
  No longer available
• 00G03208491 BREATHER TUBE
  No longer available

06 PROTECTOR 00G06800511 No longer available

• 00G06800511 PROTECTOR
  No longer available

07 BREATHER TUBE DRAIN SUMP 00G06800341 No longer available

• 00G06800341 BREATHER TUBE DRAIN SUMP
  No longer available
• Oil
  No longer available

08 Screw Available 00011051801

•

  Screw 5,1x18 mm Piaggio Group · 00011051801 Available

  € 2,06

  Add to cart

09 Screw Available 414838

•

  Screw M6x35 Piaggio Group · 414838 Available

  € 1,48

  Add to cart

10 FILTER BOX SECURING BUSHING 00G06301201 No longer available

• 00G06301201 FILTER BOX SECURING BUSHING
  No longer available

11 FILTER BOX SECURING MOUNTS 00G04901261 No longer available

• 00G04901261 FILTER BOX SECURING MOUNTS
  No longer available

12 Screw Available 00G03600991

•

  Screw Piaggio Group · 00G03600991 Available

  € 1,44

  Add to cart

13 BREATHER TUBE SPRING 00G03205271 No longer available

• 00G03205271 BREATHER TUBE SPRING
  No longer available

14 BREATHER TUBE SECURING SPRING 00G06302581 No longer available

• 00G06302581 BREATHER TUBE SECURING SPRING
  No longer available

15 DECAL, ALUMINIUM CYLINDER. 00G03000901 No longer available

• 00G03000901 DECAL, ALUMINIUM CYLINDER.
  No longer available

16 ROUNDHEAD PRHILLIPS SCREW 00012054000 No longer available

• 00012054000 ROUNDHEAD PRHILLIPS SCREW
  No longer available

17 Washer gasket Available 847226

•

  Shim Piaggio Group · 847226 Available

  € 0,99

  Add to cart
