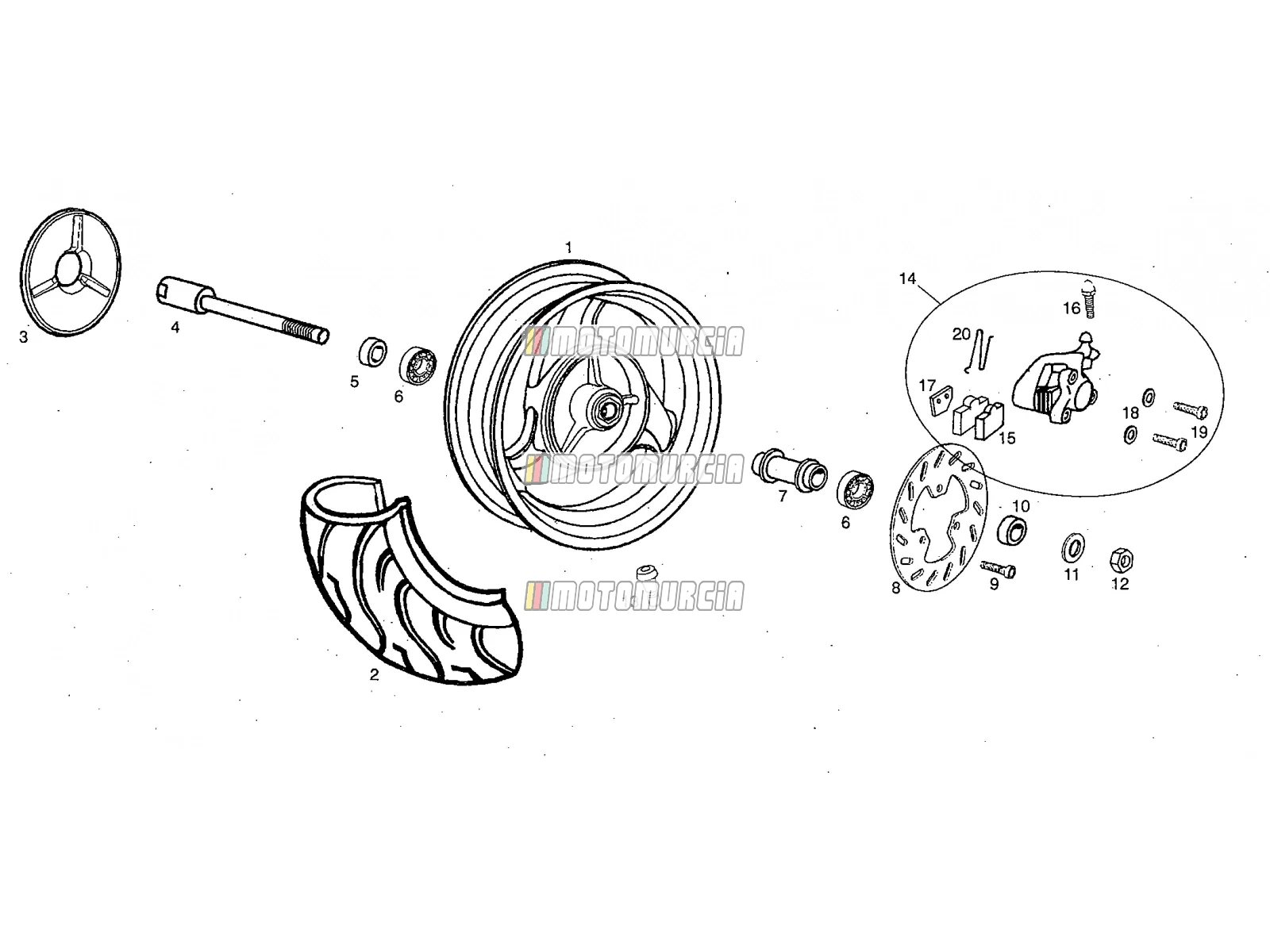

Exploded view — Front Wheel

Products

01 FRONT WHEEL ASSEMBLY 00G01205952 No longer available

• 00G01205952 FRONT WHEEL ASSEMBLY
  No longer available

02 Missing description 00G01211111 No longer available

• 00G01211111 Missing description
  No longer available

03 Wheel hub cap 00F01201121 No longer available

• 00F01201121 Wheel hub cap
  No longer available

04 Front wheel axle Front Backorder 00G01201271

•

  Wheel Axle front Piaggio Group · 00G01201271 Backorder · Shipped in 2–4 weeks

  € 30,25

  Add to cart

05 FRONT WHEEL SPACER 00001812290 No longer available

• 00001812290 FRONT WHEEL SPACER
  No longer available

06 Bearing Available 847016

•

  Ball bearing 6201 2RSH C3, 12x32x10 mm Piaggio Group · 847016 Available · Shipped in 3–5 working days

  € 11,40

  Add to cart

  Alternatives from other brands



  Wheel Bearing 6201DDU NSK · 03487534 Available · Shipped in 3–5 working days

  € 8,32

  Add to cart



  Bearing 6201/2RSH SKF Athena · MS120320100DD Available · Shipped in 4–7 working days

  € 5,84

  Add to cart



  Bearing 6201/2RSH C3 SKF Athena · MS120320100M3 Available · Shipped in 4–7 working days

  € 7,70

  Add to cart

07 FR BEARING DISTANCE BUSH ASSY 00G01200031 No longer available

• 00G01200031 FR BEARING DISTANCE BUSH ASSY
  No longer available

08 Brake disc Available 00G01202021

•

  Brake Disk front Piaggio Group · 00G01202021 Available · Shipped in 3–5 working days

  € 149,46

  Add to cart

  Alternatives from other brands



  STANDARD BRAKE DISC 5289 SBS · 5205289100 Backorder · Shipped in 2–5 weeks

  € 42,35

  Add to cart



  HALO FIXED DISC 190 Moto Master · 110737 Backorder · Shipped in 2–5 weeks

  € 45,71

  Add to cart



  UPGRADE BRAKE DISC 6025 SBS · 5206025100 Backorder · Shipped in 2–5 weeks

  € 72,60

  Add to cart

09 Brake disc fixing screw Available 00H02401282

•

  Screw Piaggio Group · 00H02401282 Available · Shipped in 3–5 working days

  € 2,93

  Add to cart

10 SPACER, REAR WHEEL DISC SIDE Available 00H01301291

•

  Spacer Piaggio Group · 00H01301291 Available · Shipped in 3–5 working days

  € 3,17

  Add to cart

11 50 - Washer Available 709037

•

  Washer 12,5x20x2 mm Piaggio Group · 709037 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

12 Nut 00232120032 No longer available

• 00232120032 Nut
  No longer available

13 Tubeless tyre valve Available 270991

•

  Tyre valves Piaggio Group · 270991 Available · Shipped in 3–5 working days

  € 6,80

  Add to cart

14 FRONT BRAKE SLAVE CYLINDER ASS 00G01204191 No longer available

• 00G01204191 FRONT BRAKE SLAVE CYLINDER ASS
  No longer available

15 Brake pads Available 00G04700141

• • Maintenance kit


  Brake pad set Piaggio Group · 00G04700141 Available · Shipped in 3–5 working days

  € 40,85

  Add to cart

  Alternatives from other brands



  105HF BRAKE PADS ORGANIC SBS · 6190105100 Available · Shipped in 4–7 working days

  € 13,92

  Add to cart



  Brake Pads Eco-Friction EF Ferodo · FRP405EF Available · Shipped in 4–7 working days

  € 15,05

  Add to cart



  BRAKE PADS SEMI METALLIC Braking · 621SM1 Available · Shipped in 4–7 working days

  € 17,42

  Add to cart

16 Bleed valve Available 864123

• • AJP Industrial
  • AJP brake system


  Bleeder Connection Piaggio Group · 864123 Available · Shipped in 3–5 working days

  € 59,57

  Add to cart

17 INTERMEDIATE PLATE, BRAKE PAD 00G04700131 No longer available

• 00G04700131 INTERMEDIATE PLATE, BRAKE PAD
  No longer available

18 Washer Available 00000033080

•

  Washer Piaggio Group · 00000033080 Available · Shipped in 3–5 working days

  € 1,44

  Add to cart

19 SCREW ALLEN 8M125X30 00004283000 No longer available

• 00004283000 SCREW ALLEN 8M125X30
  No longer available

20 Spring Available 00H01301831

•

  Split Pin Piaggio Group · 00H01301831 Available · Shipped in 3–5 working days

  € 8,05

  Add to cart
