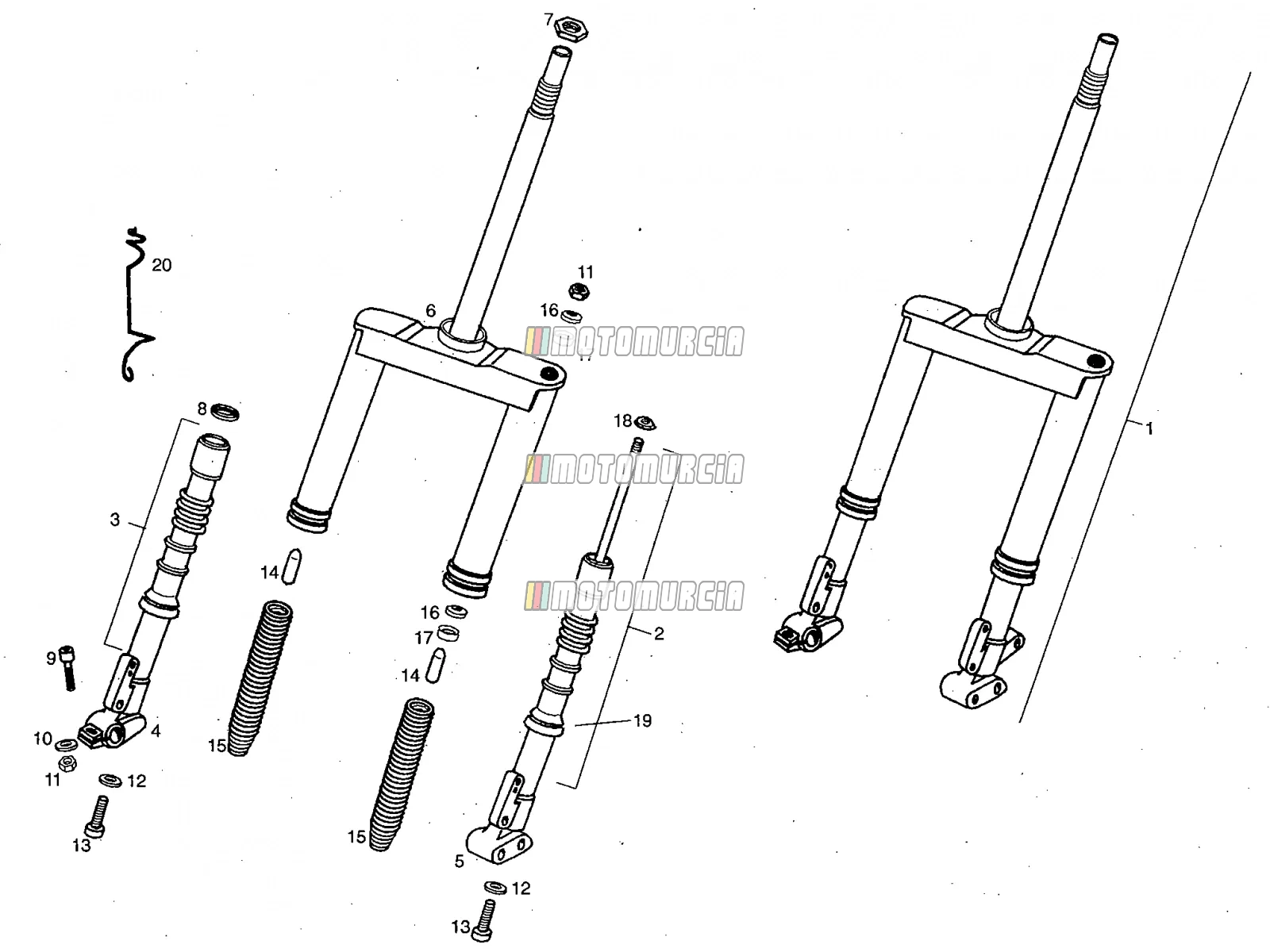

Exploded view — Front Fork

Products

01 CTO.HORQ.DIRECTRIZ PREDATOR 00G00203002 No longer available

• 00G00203002 CTO.HORQ.DIRECTRIZ PREDATOR
  No longer available

02 LEFT FORK BAR ASSY 00G02001941 No longer available

• 00G02001941 LEFT FORK BAR ASSY
  No longer available

03 RIGHT FORK BAR ASSY 00G02002871 No longer available

• 00G02002871 RIGHT FORK BAR ASSY
  No longer available

04 RIGHT FORK CAP 00G02001831 No longer available

• 00G02001831 RIGHT FORK CAP
  No longer available

05 LEFT FORK CAP 00G02001821 No longer available

• 00G02001821 LEFT FORK CAP
  No longer available

06 FORK PLATE STEM SUB/ASSY 00G00202012 No longer available

• 00G00202012 FORK PLATE STEM SUB/ASSY
  No longer available

07 Nut Available 00G00200112

•

  Standard nut Piaggio Group · 00G00200112 Available

  € 13,54

  Add to cart

08 Washer 00G02000951 No longer available

• 00G02000951 Washer
  No longer available

09 Screw Available 323990

•

  Screw Piaggio Group · 323990 Available

  € 0,99

  Add to cart

10 SECURING WASHER, CYLINDER HEAD Available 00003125280

•

  Washer Piaggio Group · 00003125280 Available

  € 1,46

  Add to cart

11 Nut Available 00000023060

•

  Standard nut M6 Piaggio Group · 00000023060 Available

  € 0,99

  Add to cart

12 CONICAL WASHER 00037000800 No longer available

• 00037000800 CONICAL WASHER
  No longer available

13 HEX.SOCRET-HEAD SCREW 8M125X20 Available 00000004820

•

  Allen screw M8 Piaggio Group · 00000004820 Available

  € 0,99

  Add to cart

14 RUBBER STOP 00G02001621 No longer available

• 00G02001621 RUBBER STOP
  No longer available

15 FORK SPRING 00G00203171 No longer available

• 00G00203171 FORK SPRING
  No longer available

16 RACE 00G00201441 No longer available

• 00G00201441 RACE
  No longer available

17 UPR LH FORK LEG SILENTBLOC 00G02000811 No longer available

• 00G02000811 UPR LH FORK LEG SILENTBLOC
  No longer available

18 LWR LH FORK SPRING WASHER 00G02000971 No longer available

• 00G02000971 LWR LH FORK SPRING WASHER
  No longer available

19 F0RK DUST GUARD 00G00202231 No longer available

• 00G00202231 F0RK DUST GUARD
  No longer available

20 Oil Oil No longer available

• Oil
  No longer available
• 00G01501381 SPEEDOMETER CABLE SLEEVE GUID.
  No longer available
