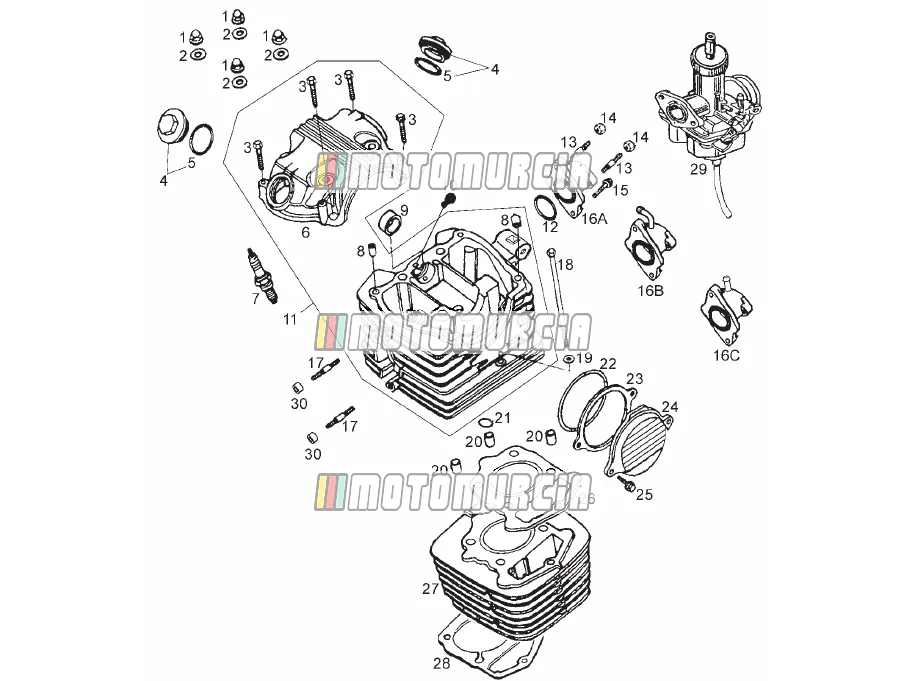

Exploded view — Cylinder

Products

1 Nut (M8) Backorder 862880

•

  Standard nut M8 Piaggio Group · 862880 Backorder

  € 8,57

  Add to cart

2 ARANDELA Available 862693

•

  Washer Piaggio Group · 862693 Available

  € 5,60

  Add to cart

3 Screw Available 862869

•

  Screw M6x35 Piaggio Group · 862869 Available

  € 2,70

  Add to cart

4 Cover 862845 No longer available

• 862845 Cover
  No longer available

5 Ring 35X3 Available 862676

•

  Oil seal 35x3 mm Piaggio Group · 862676 Available

  € 11,83

  Add to cart

6 HEAD COVER 862841 No longer available

• 862841 HEAD COVER
  No longer available

7 Spark plug Available 862704

•

  Spark Plugs D8EA Piaggio Group · 862704 Available

  € 29,09

  Add to cart

8 Pin Available 862722

•

  Adapter Sleeve Piaggio Group · 862722 Available

  € 2,64

  Add to cart

9 CASQUILLO ARBOL DE LEVAS Available 862718

•

  Sleeve Piaggio Group · 862718 Available

  € 23,78

  Add to cart

11 Cylinder head Backorder 862746

•

  Cylinder Head Piaggio Group · 862746 Backorder

  € 197,23

  Add to cart

12 Ring 33,2X3 Available 862675

•

  Oil seal 33,2x3 mm Piaggio Group · 862675 Available

  € 8,05

  Add to cart

13 Stud bolt 862759 No longer available

• 862759 Stud bolt
  No longer available

14 Nut 6M100 00026006000 No longer available

• 00026006000 Nut 6M100
  No longer available

15 Screw Available 862863

•

  Screw M6x20 Piaggio Group · 862863 Available

  € 2,35

  Add to cart

16 BOQUILLA CARBURAD.CROSS CITY 866833 No longer available

• 866833 BOQUILLA CARBURAD.CROSS CITY
  No longer available
• 862822 RACORD ADMISSION
  No longer available

17 Stud bolt Available 862758

•

  Stud Screw Piaggio Group · 862758 Available

  € 2,78

  Add to cart

18 Screw M6x110 Available 862858

•

  Screw M6x110 Piaggio Group · 862858 Available

  € 5,60

  Add to cart

19 Washer Available 862699

•

  Washer Piaggio Group · 862699 Available

  € 2,64

  Add to cart

20 Pin 862723 No longer available

• 862723 Pin
  No longer available

21 Ring 10X1,6 Backorder 862671

•

  O-Ring Piaggio Group · 862671 Backorder

  € 11,83

  Add to cart

22 Ring 75x2.65 862678 No longer available

• 862678 Ring 75x2.65
  No longer available

23 Gasket Available 862775

•

  Gasket Piaggio Group · 862775 Available

  € 2,47

  Add to cart

24 Cover 862843 No longer available

• 862843 Cover
  No longer available

26 Cylinder head gasket 862772 No longer available

• 862772 Cylinder head gasket
  No longer available

27 Cylinder Available 862724

•

  Cylinder Piaggio Group · 862724 Available

  € 310,41

  Add to cart

28 Gasket - cylinder base 862771 No longer available

• 862771 Gasket - cylinder base
  No longer available

29 Carburettor Available 862710

•

  Carburettor Piaggio Group · 862710 Available

  € 205,69

  Add to cart

30 Ring nut Available 00G06300251

•

  Sleeve Piaggio Group · 00G06300251 Available

  € 11,56

  Add to cart
