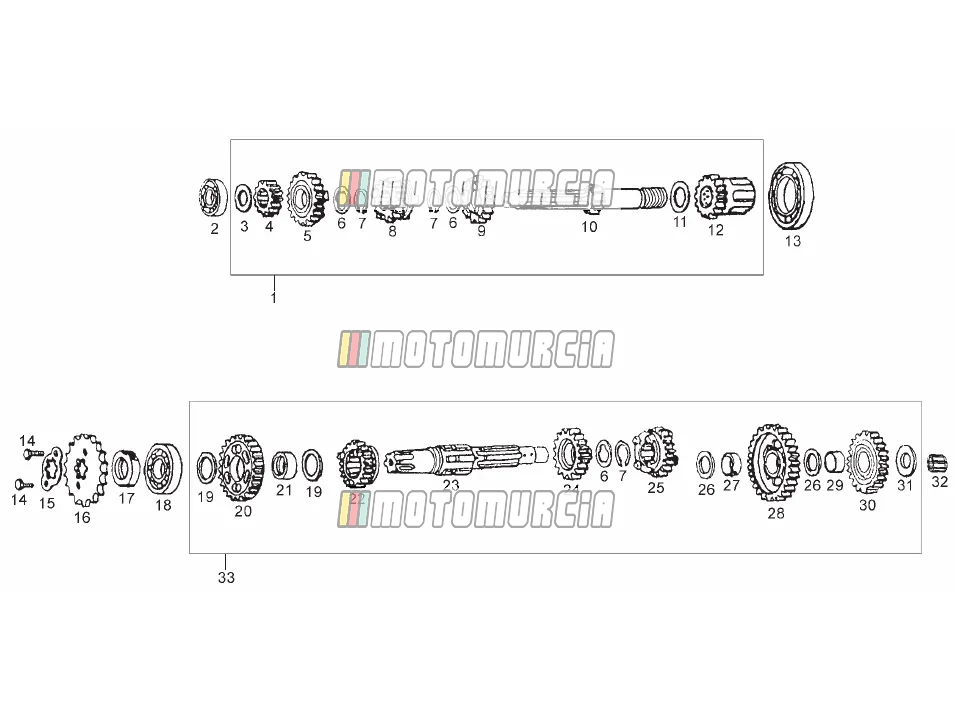

Exploded view — Gear Box

Products

1 CTO EJE PRIMARIO 862737 No longer available

• 862737 CTO EJE PRIMARIO
  No longer available

2 Bearing Backorder 862728

•

  Ball bearing Piaggio Group · 862728 Backorder

  € 15,50

  Add to cart

3 Washer 862687 No longer available

• 862687 Washer
  No longer available

4 PIÐËN 2¬ PRIMARIO Backorder 862801

•

  Front Sprocket Piaggio Group · 862801 Backorder

  € 27,08

  Add to cart

5 PIÐËN 5¬ PRIMARIO Backorder 862807

•

  Gear Wheel Piaggio Group · 862807 Backorder

  € 27,65

  Add to cart

6 Washer Backorder 862684

•

  Washer Piaggio Group · 862684 Backorder

  € 8,57

  Add to cart

7 CIRCLIP FOR SHAFT 862668 No longer available

• 862668 CIRCLIP FOR SHAFT
  No longer available

8 PIÐËN 4¬ PRIMARIO 862805 No longer available

• 862805 PIÐËN 4¬ PRIMARIO
  No longer available

9 GEAR 862803 No longer available

• 862803 GEAR
  No longer available

10 Primary gear shaft Backorder 862756

•

  Primary Shaft Piaggio Group · 862756 Backorder

  € 37,81

  Add to cart

11 Washer Backorder 862690

•

  Washer Piaggio Group · 862690 Backorder

  € 5,60

  Add to cart

12 PIÐËN ARRANQUE 862810 No longer available

• 862810 PIÐËN ARRANQUE
  No longer available

13 Bearing 862725 No longer available

• 862725 Bearing
  No longer available

14 BOLT M6 X 10 862856 No longer available

• 862856 BOLT M6 X 10
  No longer available
•

  Screw M6x10 Piaggio Group · 862857 Available

  € 2,70

  Add to cart

15 Plate Available 862821

•

  Plate Piaggio Group · 862821 Available

  € 4,42

  Add to cart

16 OUTPUT PIGNION Available 862817

•

  Rear Sprocket Number of Teeth: 15 Piaggio Group · 862817 Available

  € 9,41

  Add to cart

17 Oil seal Backorder 862827

•

  Shaft Seal Piaggio Group · 862827 Backorder

  € 14,91

  Add to cart

18 Bearing Backorder 862726

•

  Ball bearing Piaggio Group · 862726 Backorder

  € 19,77

  Add to cart

19 Washer Backorder 862691

•

  Washer Piaggio Group · 862691 Backorder

  € 5,60

  Add to cart

20 Pinion 2A Backorder 862802

•

  Gear Wheel Piaggio Group · 862802 Backorder

  € 27,08

  Add to cart

21 Ring nut 862715 No longer available

• 862715 Ring nut
  No longer available

22 PIÐËN 5¬ SECUNDARIO 862808 No longer available

• 862808 PIÐËN 5¬ SECUNDARIO
  No longer available

23 Driven shaft 862753 No longer available

• 862753 Driven shaft
  No longer available

24 PIÐËN 4¬ SECUNDARIO Backorder 862806

•

  Gear Wheel Piaggio Group · 862806 Backorder

  € 38,84

  Add to cart

25 GEAR Backorder 862804

•

  Gear Wheel Piaggio Group · 862804 Backorder

  € 37,81

  Add to cart

26 Washer Backorder 862689

•

  Washer Piaggio Group · 862689 Backorder

  € 5,60

  Add to cart

27 CASQUILLO 862713 No longer available

• 862713 CASQUILLO
  No longer available

28 PIÐËN 1¬ SECUNDARIO 862800 No longer available

• 862800 PIÐËN 1¬ SECUNDARIO
  No longer available

29 CASQUILLO 862716 No longer available

• 862716 CASQUILLO
  No longer available

30 PIÐËN ARRANQUE 862811 No longer available

• 862811 PIÐËN ARRANQUE
  No longer available

31 Washer Backorder 862688

•

  Washer Piaggio Group · 862688 Backorder

  € 2,70

  Add to cart

32 Needle bearing Available 862717

•

  Needle bearing 16x22x11,5 mm Piaggio Group · 862717 Available

  € 11,31

  Add to cart

33 SECONDARY SHAFT ASSY Backorder 862738

•

  Fixed Wheel Piaggio Group · 862738 Backorder

  € 19,36

  Add to cart
