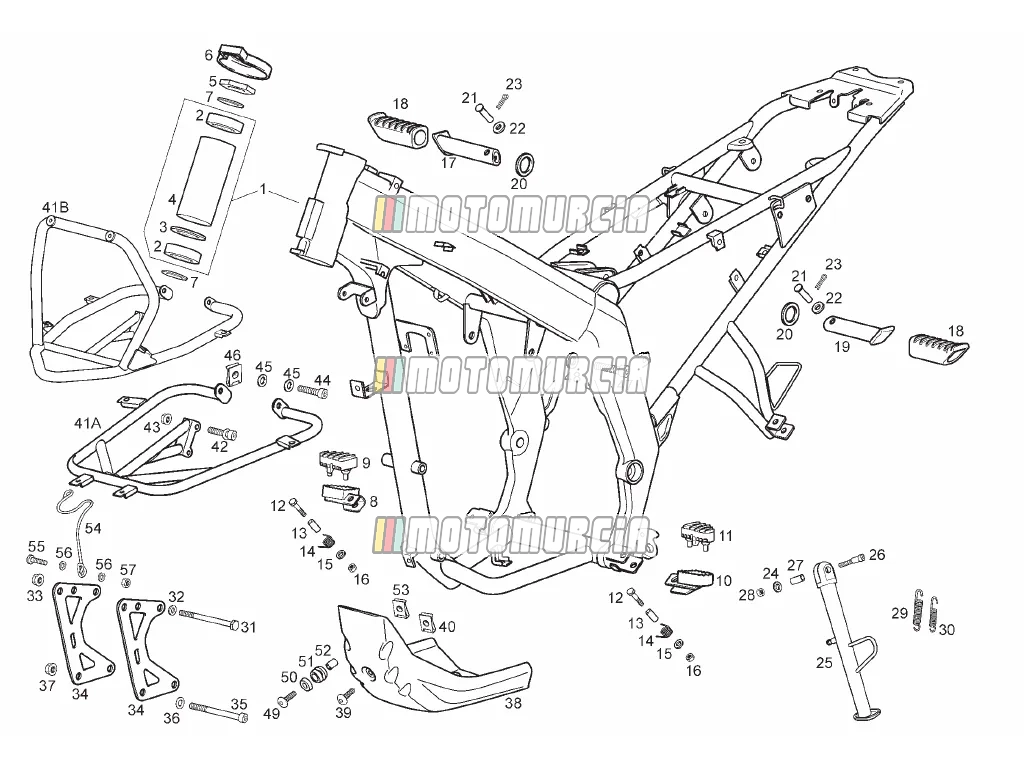

Exploded view — Central Stand

‹ Back to model

Derbi Terra 125 2011

Products

1 FRAME 8654885 No longer available

8654885 FRAME
No longer available
864583 FRAME
No longer available

2 Steering bearing Available 00000056205

Steering head bearing 6205, 25x52x15 mm Piaggio Group · 00000056205 Available

€ 13,82

3 Washer Available 00H06500451

Shim Piaggio Group · 00H06500451 Available

€ 4,96

4 Pipe Available 00H06303401

Spacer Piaggio Group · 00H06303401 Available

€ 30,09
Clip On Piaggio Group · 00H06301401 Available

€ 22,78

5 Nut Available 00G00200112

Standard nut Piaggio Group · 00G00200112 Available

€ 13,54

6 Dust cover Available 00D00200761

Dust guard Piaggio Group · 00D00200761 Available

€ 7,84

7 Washer Available 00008902630

Shim Piaggio Group · 00008902630 Available

€ 2,04

8 Footrest Available 86449301WNA

Footrest right Piaggio Group · 86449301WNA Available

€ 32,57

9 Guard Available 863248

Footrest rubber right Piaggio Group · 863248 Available

€ 15,03

10 Footrest Available 86449401WNA

Footrest left Piaggio Group · 86449401WNA Available

€ 32,57

11 Guard Available 863247

Footrest rubber left Piaggio Group · 863247 Available

€ 15,03

12 Screw Available 00022084021

Allen screw M8x40 Piaggio Group · 00022084021 Available

€ 1,44

13 Spacer Available 00002215152

Spacer Piaggio Group · 00002215152 Available

€ 1,77

14 Spring, step return Available 00H04903292

Spring Piaggio Group · 00H04903292 Available

€ 1,46

15 Washer Available 00402080001

Shim Ø 8,00 mm Piaggio Group · 00402080001 Available

€ 0,99

16 Nut Available 00023108000

Standard nut M8 Piaggio Group · 00023108000 Available

€ 5,67

17 Footrest Backorder 864179

Footrest for pillion passenger, right Piaggio Group · 864179 Backorder

€ 22,95

18 Guard 863249 No longer available

863249 Guard
No longer available

19 Footrest Backorder 864180

Footrest for pillion passenger, left Piaggio Group · 864180 Backorder

€ 25,60

20 Washer 863528 No longer available

863528 Washer
No longer available

21 Pin Available 863529

Pin Piaggio Group · 863529 Available

€ 6,35

22 Washer Backorder 863530

Washer Piaggio Group · 863530 Backorder

€ 6,21

23 Pin Available 00051020600

Bolts Piaggio Group · 00051020600 Available

€ 2,47

24 Washer Available 00D01200171

Shim Ø 6,00 mm Piaggio Group · 00D01200171 Available

€ 1,48

25 SCTO.CABALLETE LAT.GRG.GEN.TER125 Available 86320401WGB

Side Stand Piaggio Group · 86320401WGB Available

€ 140,78
86495100WGB SCTO.CABALLETE LAT.GRG.GEN.TER125 ADV
No longer available

26 Screw 863310 No longer available

863310 Screw
No longer available

27 Ring nut Available 00H00801431

Spacer Piaggio Group · 00H00801431 Available

€ 11,56

28 Nut Available 219277

Standard nut Piaggio Group · 219277 Available

€ 0,99

29 Lateral stand spring Available AP8221204

Spring for side stand Piaggio Group · AP8221204 Available

€ 11,39

30 Inner spring Available AP8221211

Spring for side stand Piaggio Group · AP8221211 Available

€ 3,47

31 Screw Available 00H03000272

Allen screw M10 Piaggio Group · 00H03000272 Available

€ 3,80

33 Nut 10M150 Available 863908

Standard nut Piaggio Group · 863908 Available

€ 3,40

34 CARTELA SOPTE.MOTOR GRG.GEN.TER125 86324600WGB No longer available

86324600WGB CARTELA SOPTE.MOTOR GRG.GEN.TER125
No longer available

36 Washer Available 00402100001

Washer Piaggio Group · 00402100001 Available

€ 1,72

38 ENGINE ALUMINIUM LOWER PROTECTOR 864959 No longer available

864959 ENGINE ALUMINIUM LOWER PROTECTOR
No longer available
863220 COMPLETE REAR COVER
No longer available

39 Screw Available 2B014101

Screw Piaggio Group · 2B014101 Available

€ 3,78

41 SCTO.SOPTE.ANT.CAREN.GRG.GEN.TER125 ADV 86495701WGB No longer available

86495701WGB SCTO.SOPTE.ANT.CAREN.GRG.GEN.TER125 ADV
No longer available
86322901WGB SCTO.SOPTE.ANT.CAREN.GRG.GEN.TER125
No longer available

42 Screw Available 00D05910081

Screw M6x16 Piaggio Group · 00D05910081 Available

€ 1,48

43 Nut Available 00000023060

Standard nut M6 Piaggio Group · 00000023060 Available

€ 0,99

44 Screw Available 00000004630

Allen screw M6 Piaggio Group · 00000004630 Available

€ 1,36

45 Washer Available 00402060001

Shim Ø 6,00 mm Piaggio Group · 00402060001 Available

€ 1,48

46 Clip nuts (M6) Available 254485

Sheet nut Piaggio Group · 254485 Available

€ 2,04

47 TOR.C/ALLEN 10M150X25 00000004125 No longer available

00000004125 TOR.C/ALLEN 10M150X25
No longer available

49 TBCEI Screw M8 Backorder 658844

Screw M8 Piaggio Group · 658844 Backorder

€ 5,14

50 Cup Available 00D01500552

Washer Piaggio Group · 00D01500552 Available

€ 1,29

51 Damper Available 00008915020

Vibrations Damper Piaggio Group · 00008915020 Available

€ 2,49

52 Spacer Available 00D01500471

Standard nut Piaggio Group · 00D01500471 Available

€ 8,66

53 Clip nuts (M5) Available 00G04401462

Sheet nut M5 Piaggio Group · 00G04401462 Available

€ 1,48

54 VARILLA SUJECION TUBO AGUA TER125 865139 No longer available

865139 VARILLA SUJECION TUBO AGUA TER125
No longer available

55 Screw Available AP8150044

Screw M6x20 Piaggio Group · AP8150044 Available

€ 1,48
