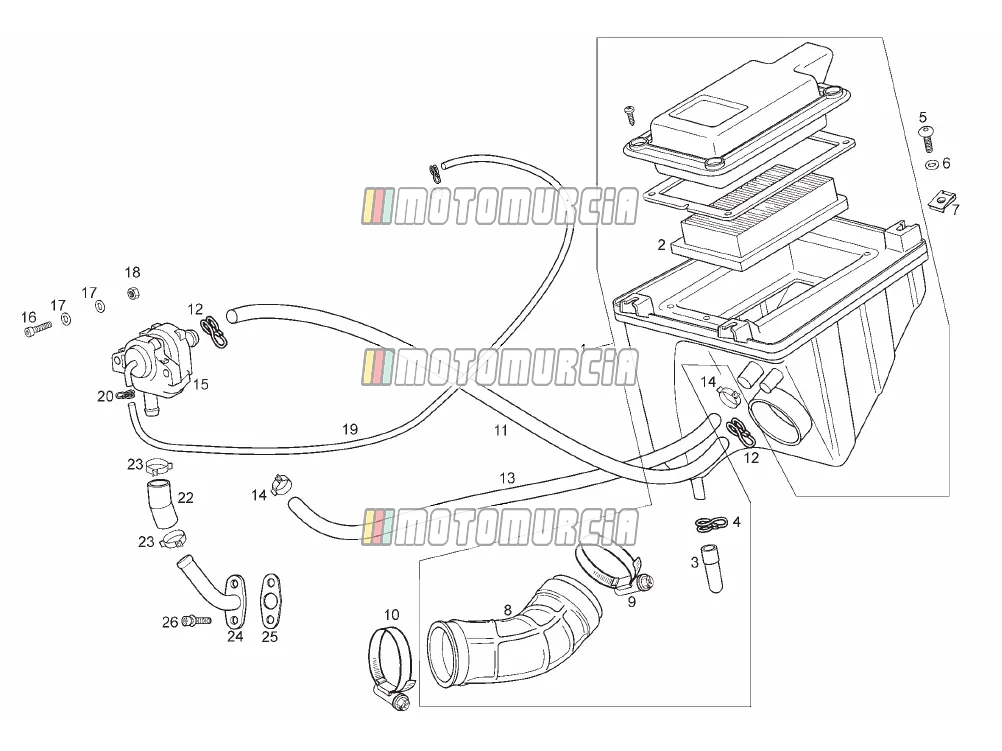

Exploded view — Filter Holder
‹ Back to model
Derbi Terra 125 2011
Products
1 Air filter box
-
866732 Air filter boxNo longer available
-
866307 Air boxNo longer available
2 Air filter Available
-
- Maintenance kit
Air Filter Insert Piaggio Group · 861130 Available · Shipped in 3–5 working days€ 35,80
3 Pipe Available
-
Pipe Piaggio Group · 862403 Available · Shipped in 3–5 working days€ 9,41
4 Clamp Available
-
Clamping Spring Piaggio Group · 862404 Available · Shipped in 3–5 working days€ 2,18
5 Screw Available
-
Screw Piaggio Group · 847227 Available · Shipped in 3–5 working days€ 6,70
7 Clip nuts (M5) Available
-
- Version with ARAS
- Year of manufacture: 2011
Sheet nut M5 Piaggio Group · 00G04401462 Available · Shipped in 3–5 working days€ 1,48
8 Air bellow
-
863212 Air bellowNo longer available
9 Clamp Available
-
Clamp Piaggio Group · 00H03200271 Available · Shipped in 3–5 working days€ 11,82
10 Clamp Available
-
Hose Clamp Piaggio Group · 862923 Available · Shipped in 3–5 working days€ 11,02
11 TUBO VALV.SAS A CAJA FILTRO TER125 Available
-
Hose Piaggio Group · 864160 Available · Shipped in 3–5 working days€ 13,01
12 Clamp Available
-
Clamp Piaggio Group · 00H06400291 Available · Shipped in 3–5 working days€ 6,44
13 Pipe Available
-
Pipe Piaggio Group · 863320 Available · Shipped in 3–5 working days€ 27,18
14 Clamp Backorder
-
Clamping Spring Piaggio Group · 00G03801091 Backorder · Shipped in 2–4 weeks€ 3,82
15 Valve
-
840561 ValveNo longer available
16 Screw Available
-
- Country: United States of America
Screw M6x25 Piaggio Group · AP8150165 Available · Shipped in 3–5 working days€ 1,21
17 Washer Available
-
- Year of manufacture: 2011
Shim Ø 6,00 mm Piaggio Group · 00402060001 Available · Shipped in 3–5 working days€ 1,48
18 Nut Available
-
- Switzerland version E3
- Year of manufacture: 2009
- Year of manufacture: 2011
- Country: Switzerland
Standard nut M6 Piaggio Group · 00000023060 Available · Shipped in 3–5 working days€ 0,99
19 Pipe Available
-
Pipe Piaggio Group · 863474 Available · Shipped in 3–5 working days€ 14,23
20 Clamp
-
00H00402501 ClampNo longer available
21 Clamp Available
-
- Year of manufacture: 2011
Hose Clamp Piaggio Group · 00D03700131 Available · Shipped in 3–5 working days€ 1,37
22 S.a.s. joint pipe Available
-
Nozzle Piaggio Group · 831259 Available · Shipped in 3–5 working days€ 6,44
23 Clamp Available
-
Clamping Spring Piaggio Group · 00H03801461 Available · Shipped in 3–5 working days€ 5,60
24 JOINT PIPE Backorder
-
Connector Piaggio Group · 864104 Backorder · Shipped in 2–4 weeks€ 54,84
25 Gasket Available
-
Gasket Piaggio Group · 832059 Available · Shipped in 3–5 working days€ 8,31
26 Screw Available
-
Screw M6x16 Piaggio Group · 00D05910081 Available · Shipped in 3–5 working days€ 1,48
