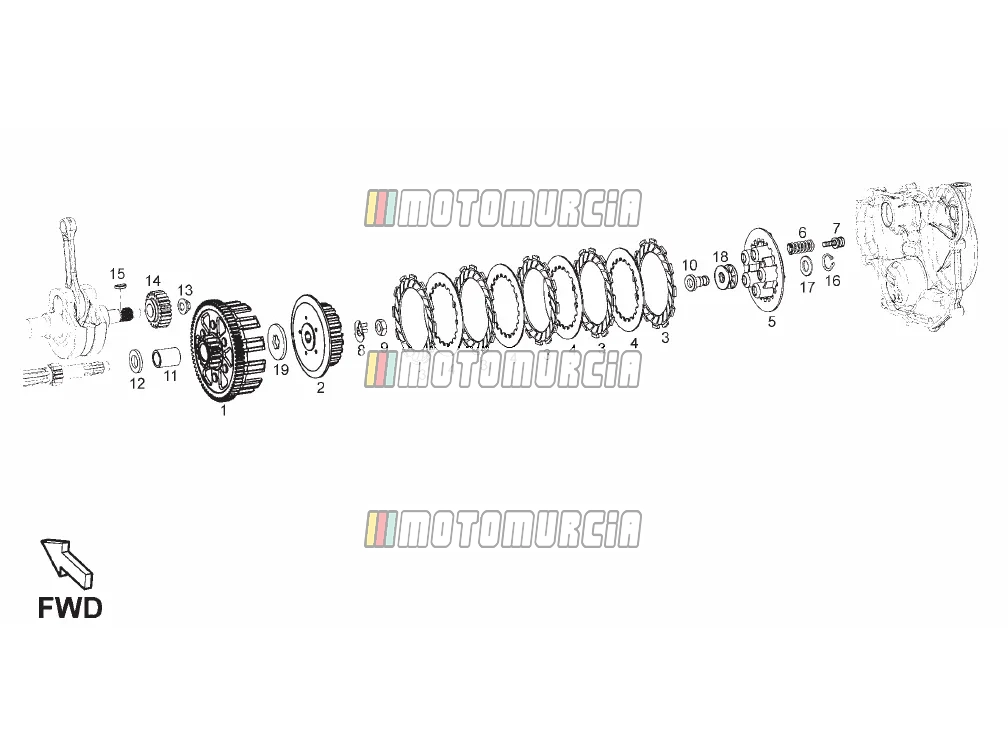

Exploded view — Clutch

Products

1 Clutch gearing CL."X" Available 8714605002

•

  Gear Wheel Piaggio Group · 8714605002 Available

  € 420,60

  Add to cart
• 8714605001 Clutch gearing CL."Y"
  No longer available

2 Boss, Clutch Available 847045

•

  Clutch Case Piaggio Group · 847045 Available

  € 88,49

  Add to cart

3 Driving clutch disc Available 871341

•

  Clutch plates Piaggio Group · 871341 · Quantity needed: 5 Available

  € 10,35

  Add to cart

4 Driven clutch disc Available 1A007879

•

  Clutch Disk driven Piaggio Group · 1A007879 · Quantity needed: 4 Available

  € 5,48

  Add to cart

5 Clutch collar Available 847046

•

  Clutch pressure plate Piaggio Group · 847046 Available

  € 81,55

  Add to cart

6 Clutch spring Available 879285

•

  Clutch Spring Piaggio Group · 879285 Available

  € 14,65

  Add to cart

7 Screw Available 847048

•

  Screw M5 Piaggio Group · 847048 Available

  € 1,48

  Add to cart

8 Washer (Lock) Available 876418

•

  Shim Piaggio Group · 876418 Available

  € 2,78

  Add to cart

9 Nut Available 847221

•

  Standard nut Piaggio Group · 847221 Available

  € 2,35

  Add to cart

10 Pin Available 847223

•

  Bolts Piaggio Group · 847223 Available

  € 2,87

  Add to cart

11 Spacer B044411 No longer available

• B044411 Spacer
  No longer available

12 Washer Available 847218

•

  Washer Piaggio Group · 847218 Available

  € 8,00

  Add to cart

13 Flanged nut M12 Available B015804

•

  Standard nut Piaggio Group · B015804 Available

  € 8,00

  Add to cart

14 Pinion CL."X" Backorder 8714475002

•

  Front Sprocket Piaggio Group · 8714475002 Backorder

  € 38,72

  Add to cart
•

  Front Sprocket Piaggio Group · 8714475001 Backorder

  € 38,72

  Add to cart

15 Transmission key Available 000097

•

  Alternator wedge, 15,3x6,45x4 Piaggio Group · 000097 Available

  € 6,20

  Add to cart

16 Seeger Available 00000047110

•

  Circlip Piaggio Group · 00000047110 Available

  € 1,44

  Add to cart

17 Washer Available 847224

•

  Spacer disc Piaggio Group · 847224 Available

  € 1,77

  Add to cart

18 Bearing Available 8472226

•

  Bearing Piaggio Group · 8472226 Available

  € 21,79

  Add to cart

19 Washer 847042 No longer available

• 847042 Washer
  No longer available
