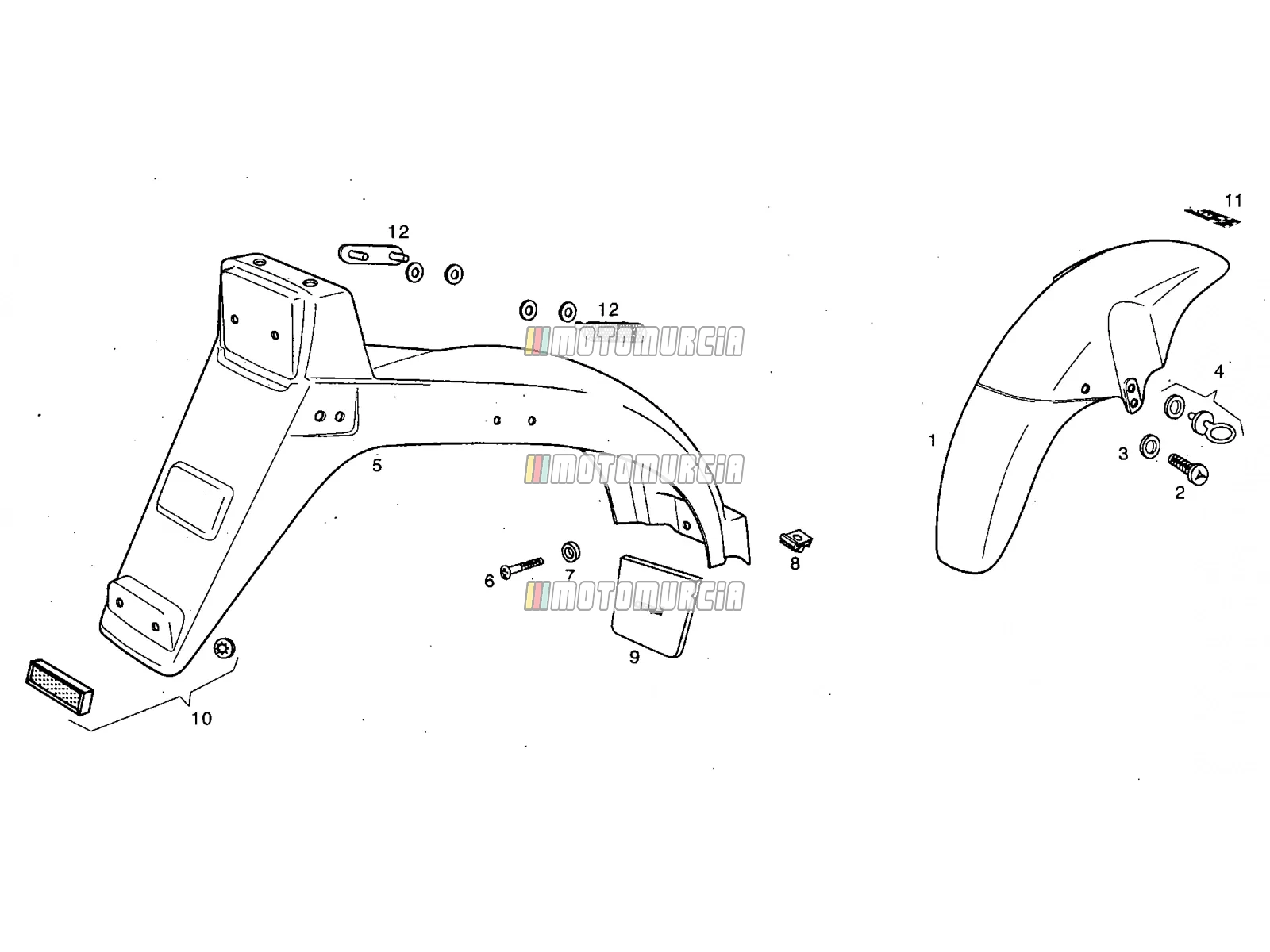

Exploded view — Mudguards

Products

01 FRONT FENDER. 00F007040245 No longer available

• 00F007040245 FRONT FENDER.
  No longer available
• 00F007040235 FRONT FENDER.
  No longer available
• 00F00704021C5 Front mudguard
  No longer available
• 00F007040265 Front mudguard
  No longer available
• 00F007040225 Front mudguard
  No longer available

02 ALLEN ROUND HEAD SCR.8M125X12 00008081200 No longer available

• 00008081200 ALLEN ROUND HEAD SCR.8M125X12
  No longer available

03 Washer Available 00000031080

•

  Washer Ø 8,00 mm Piaggio Group · 00000031080 Available

  € 1,88

  Add to cart

04 R-CTO.GUIA CABLES FENIX 00H06300781 No longer available

• 00H06300781 R-CTO.GUIA CABLES FENIX
  No longer available

05 REAR FENDER. 00F00704122 No longer available

• 00F00704122 REAR FENDER.
  No longer available
• 00F007041235 REAR FENDER.
  No longer available
• 00F007041215 REAR FENDER.
  No longer available

06 Screw Available 00012161600

•

  Screw M6 Piaggio Group · 00012161600 Available

  € 0,99

  Add to cart

07 Washer Available 00D01200171

•

  Shim Ø 6,00 mm Piaggio Group · 00D01200171 Available

  € 1,48

  Add to cart

08 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

09 REAR MUDGUARD EXTENSION 00F00700341 No longer available

• 00F00700341 REAR MUDGUARD EXTENSION
  No longer available

10 Reflector 00G04400752 No longer available

• 00G04400752 Reflector
  No longer available

11 DERBI 8 TIMES TRANSFER 00H04900231 No longer available

• 00H04900231 DERBI 8 TIMES TRANSFER
  No longer available

12 SIDE REFLECTOR (AMBER) Backorder 00G04400751

•

  Reflector yellow Piaggio Group · 00G04400751 Backorder

  € 11,77

  Add to cart
