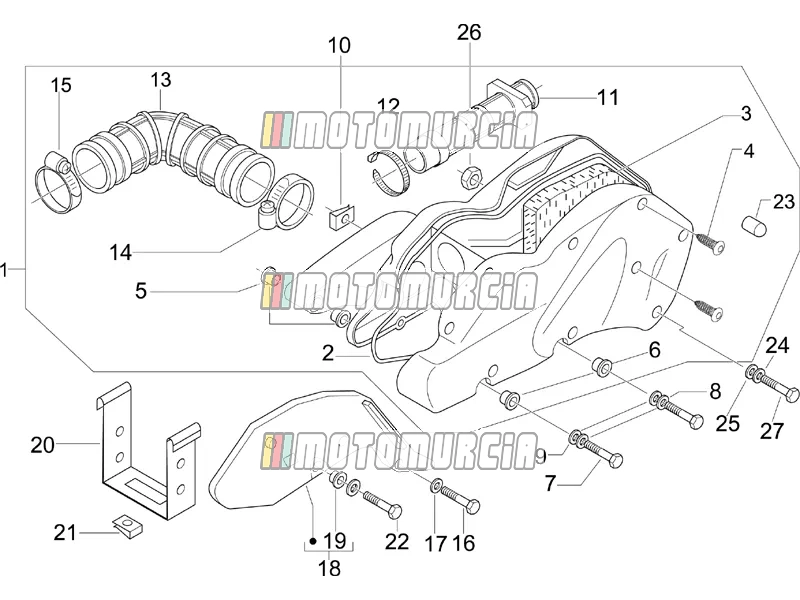

Exploded view — Air Filter

Products

1 Air filter box Backorder 871805

•

  Air Filter complete Piaggio Group · 871805 Backorder · Shipped in 2–4 weeks

  € 194,27

  Add to cart

2 Seal air filter box Available 829259

•

  Gasket Piaggio Group · 829259 Available · Shipped in 3–5 working days

  € 13,09

  Add to cart

3 Air filter Available 8292580P

•

  Air Filter Insert Premium Piaggio Group · 8292580P Available · Shipped in 3–5 working days

  € 12,15

  Add to cart

  Alternatives from other brands



  OIL FILTER Ison · ISON184 Available · Shipped in 4–7 working days

  € 6,36

  Add to cart



  Oil Filter Champion · COF084 Available · Shipped in 4–7 working days

  € 9,89

  Add to cart

4 Screw Available 258146

•

  Thread Screw Piaggio Group · 258146 · Quantity needed: 9 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

5 Bushing Available 830057

•

  Spacer Bush Piaggio Group · 830057 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 4,15

  Add to cart

6 Spacer Available 830056

•

  Sleeve Piaggio Group · 830056 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

7 Screw Available 018640

•

  Screw M6x50 Piaggio Group · 018640 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

10 Clip nuts (M6) Available 254485

• • Year of manufacture: 2012
  • Year of manufacture: 2013


  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,04

  Add to cart

11 Air intake hose Available 829543

•

  Intake Manifold Piaggio Group · 829543 Available · Shipped in 3–5 working days

  € 66,38

  Add to cart

12 Clamp Available CM001926

•

  Clamp Piaggio Group · CM001926 Available · Shipped in 3–5 working days

  € 3,93

  Add to cart

13 Air bellow Available B014736

•

  Fork Dust Cover Piaggio Group · B014736 Available · Shipped in 3–5 working days

  € 62,42

  Add to cart

14 Clamp Available 260918

•

  Clamp Piaggio Group · 260918 Available · Shipped in 3–5 working days

  € 5,13

  Add to cart

15 Clamp Available CM002910

•

  Clamping Spring Piaggio Group · CM002910 Available · Shipped in 3–5 working days

  € 1,29

  Add to cart

18 Protection Backorder 652802

•

  Protection piece Piaggio Group · 652802 Backorder · Shipped in 2–4 weeks

  € 20,76

  Add to cart

20 Bracket Backorder 975587

•

  Batteriehalterung Piaggio Group · 975587 Backorder · Shipped in 2–4 weeks

  € 13,33

  Add to cart

21 Clip nuts Available CM017409

•

  Sheet nut Piaggio Group · CM017409 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

22 Screw Available 414838

• • iGET version


  Screw M6x35 Piaggio Group · 414838 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

23 Cap Available 827831

•

  Cap, transparent Piaggio Group · 827831 Available · Shipped in 3–5 working days

  € 5,74

  Add to cart

24 Washer Available 003056

• • Enjoy 2015


  Washer 6,4x12x1 mm Piaggio Group · 003056 Available · Shipped in 3–5 working days

  € 1,84

  Add to cart

25 Washer Available 012533

•

  Washer 6,6x11 mm Piaggio Group · 012533 Available · Shipped in 3–5 working days

  € 1,45

  Add to cart

26 Nut Available 288245

• • Taiwan version


  Collar nut M6 Piaggio Group · 288245 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

27 Screw Available 259166

• 259166 Screw


  Screw Piaggio Group · 1B000678 ↻ Replaces 259166, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 0,99

  Add to cart
