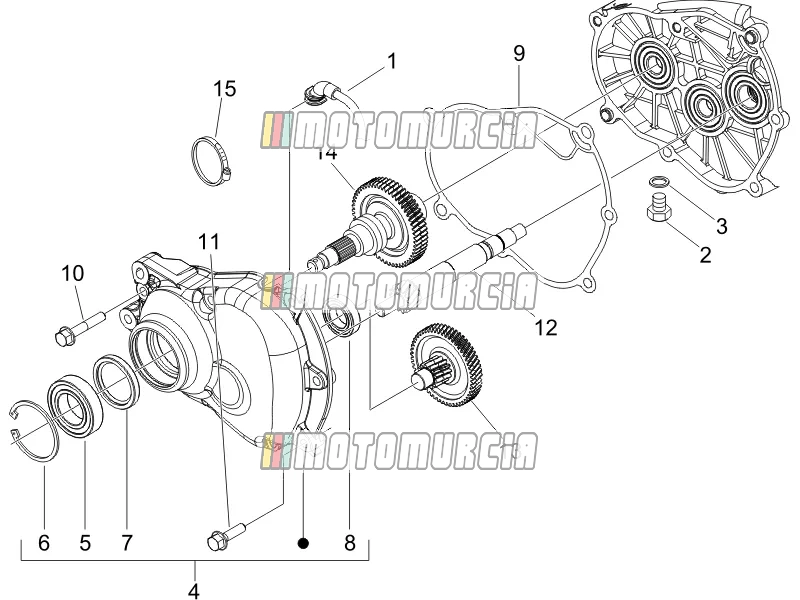

Exploded view — Reduction Unit

Products

1 Breather Available 830862

•

  Breather Pipe Piaggio Group · 830862 Available

  € 10,54

  Add to cart
•

  Breather Pipe Piaggio Group · CM162202 Available

  € 21,97

  Add to cart

2 Screw Available 269755

•

  Screw M8x12 Piaggio Group · 269755 Available

  € 1,59

  Add to cart

3 Washer Available 485703

•

  Washer 8,2x12x1 mm Piaggio Group · 485703 Available

  € 1,25

  Add to cart

4 Side cover 8481875 No longer available

• 8481875 Side cover
  No longer available

5 Radial bearing 30x55x13 Available 1A005376R

•

  Radial bearing 6006 2RS1 C3 GJN, 30x55x13 mm Piaggio Group · 1A005376R Available

  € 15,37

  Add to cart

6 Seeger Available 829206

•

  Circlip Piaggio Group · 829206 Available

  € 1,59

  Add to cart

7 Bearing Available 83018R

•

  Radial bearing TM6302Y, 15x42x13 mm Piaggio Group · 83018R Available

  € 11,14

  Add to cart

8 Oil seal Available 83082R

•

  Shaft Seal 38x50x7 mm Piaggio Group · 83082R Available

  € 6,70

  Add to cart

9 Gasket Available 847931

•

  Gasket Piaggio Group · 847931 Available

  € 8,95

  Add to cart

10 Screw Available B016806

•

  Flanged Screw M8x40 Piaggio Group · B016806 Available

  € 1,45

  Add to cart

11 5 - Screw Available B016805

•

  Flanged Screw M8x45 Piaggio Group · B016805 · Quantity needed: 6 Available

  € 1,48

  Add to cart

12 Driven pulley shaft Z=14 Available 8738755

•

  Input Shaft Number of Teeth: 14 Piaggio Group · 8738755 Available

  € 249,08

  Add to cart

13 Transmission shaft 8407685 No longer available

• 8407685 Transmission shaft
  No longer available

14 Rear wheel axis cpl. B0168855 No longer available

• B0168855 Rear wheel axis cpl.
  No longer available

15 Hose clamp Available 827277

•

  Clamp Piaggio Group · 827277 Available

  € 4,02

  Add to cart
