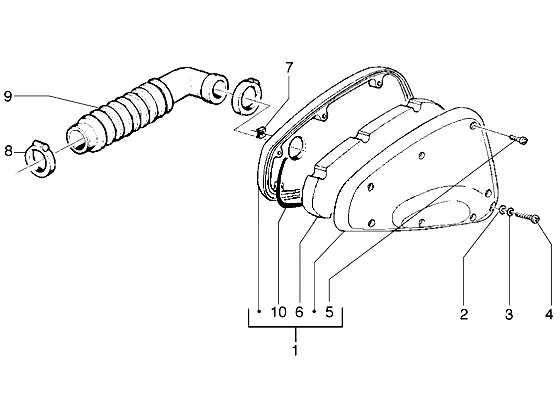

Exploded view — Air Cleaner

Products

1 Air filter Available 845662

•

  Air Filter complete Piaggio Group · 845662 Available

  € 76,65

  Add to cart

2 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 Available

  € 1,84

  Add to cart

3 Washer Available 012533

•

  Washer 6,6x11 mm Piaggio Group · 012533 Available

  € 1,45

  Add to cart

4 Screw Available 018640

•

  Screw M6x50 Piaggio Group · 018640 Available

  € 0,99

  Add to cart

5 Screw Available 258146

•

  Thread Screw Piaggio Group · 258146 · Quantity needed: 6 Available

  € 0,99

  Add to cart

6 Air filter Available 4797480P

•

  Air filter Piaggio Group · 4797480P Available

  € 9,67

  Add to cart

7 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

8 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 · Quantity needed: 2 Available

  € 1,43

  Add to cart

9 Air bellow Available 479745

•

  Intake Manifold Piaggio Group · 479745 Available

  € 24,26

  Add to cart

10 Seal air filter box Available 479749

•

  Gasket Piaggio Group · 479749 Available

  € 11,28

  Add to cart
