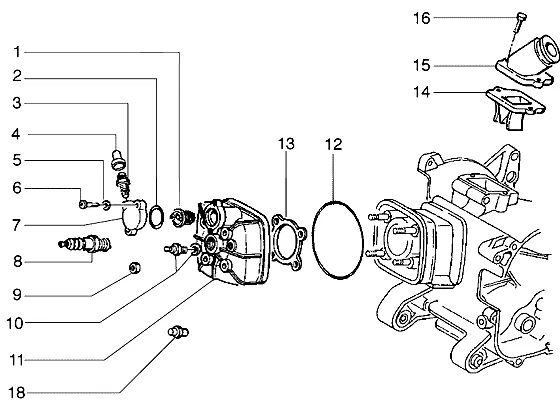

Exploded view — Cylinder Head And Induction Pipe

Products

1 Thermostat Backorder 483395

•

  Thermostat Piaggio Group · 483395 Backorder

  € 50,92

  Add to cart

2 O-Ring Available 289514

•

  O-Ring Piaggio Group · 289514 Available

  € 0,99

  Add to cart

3 Bleed screw Available 430045

•

  Bleeder Screw Piaggio Group · 430045 Available

  € 2,25

  Add to cart

4 Bleed valve cap Available 063435

•

  Covering Cap Piaggio Group · 063435 Available

  € 2,96

  Add to cart

5 Washer Available 003054

•

  Washer Piaggio Group · 003054 · Quantity needed: 2 Available

  € 1,77

  Add to cart
•

  Shim Piaggio Group · 006975 · Quantity needed: 2 Available

  € 1,25

  Add to cart
•

  Washer Piaggio Group · 078307 · Quantity needed: 2 Available

  € 1,37

  Add to cart

6 Screw 008374 No longer available

• 008374 Screw Quantity needed: 2
  No longer available
• 256212 Screw Quantity needed: 2
  No longer available
•

  Screw M6x14 Piaggio Group · 008375 · Quantity needed: 2 Available

  € 0,99

  Add to cart

7 Joint 4799874 No longer available

• 4799874 Joint
  No longer available

8 Spark plug (P2M) Available 438065

•

  Spark Plugs P2M/N2C Piaggio Group · 438065 Available

  € 5,69

  Add to cart
•

  Spark Plugs RN2C Piaggio Group · 438034 Available

  € 6,39

  Add to cart
• 438069 Spark plug
  No longer available
• 438032 Spark plug
  No longer available
•

  Spark Plugs RN1C Piaggio Group · 438031 Available

  € 6,65

  Add to cart

9 Spacer nut M6 Available 288531

•

  Standard nut Piaggio Group · 288531 Available

  € 2,27

  Add to cart

10 Water temperature switch Available 82622R

•

  Water temperature probe Piaggio Group · 82622R Available

  € 28,14

  Add to cart

11 Cylinder head Available 2865344

•

  Cylinder Head Piaggio Group · 2865344 Available

  € 54,40

  Add to cart
• 2895134 Cylinder head
  No longer available
•

  Cylinder Head pentagonal Piaggio Group · 8264906 Available

  € 100,53

  Add to cart

12 Cylinder head gasket (OLD type < 2000) Available 430733

•

  Cylinder Head Gasket Piaggio Group · 430733 Available

  € 6,74

  Add to cart
•

  Cylinder Head Gasket Piaggio Group · 482988 Available

  € 4,34

  Add to cart

13 Gasket 431026 No longer available

• 431026 Gasket
  No longer available
•

  Cylinder Head Gasket Piaggio Group · 288289 Available

  € 6,80

  Add to cart

14 Reed valve Available 82775R

•

  Reed valve Piaggio Group · 82775R Available

  € 47,24

  Add to cart

15 Union pipe 474362 No longer available

• 474362 Union pipe
  No longer available
•

  Intake manifold Piaggio Group · 1A008824 Available

  € 15,10

  Add to cart
•

  Intake manifold Piaggio Group · 417260 Available

  € 34,17

  Add to cart

16 Screw (M6x22) Available 1A000352

•

  Screw M6x22 Piaggio Group · 1A000352 · Quantity needed: 2 Available

  € 3,71

  Add to cart

17 Screw Available B016774

•

  Hexagon Screw M6x25 Piaggio Group · B016774 Available

  € 1,48

  Add to cart

18 Joint 288945 No longer available

• 288945 Joint
  No longer available

19 Cylinder air shroud Available 845692

•

  Cylinder Shroud Piaggio Group · 845692 Available

  € 19,02

  Add to cart
• 433911 Guard
  No longer available

20 Nut Available 288245

•

  Collar nut M6 Piaggio Group · 288245 · Quantity needed: 2 Available

  € 0,99

  Add to cart
