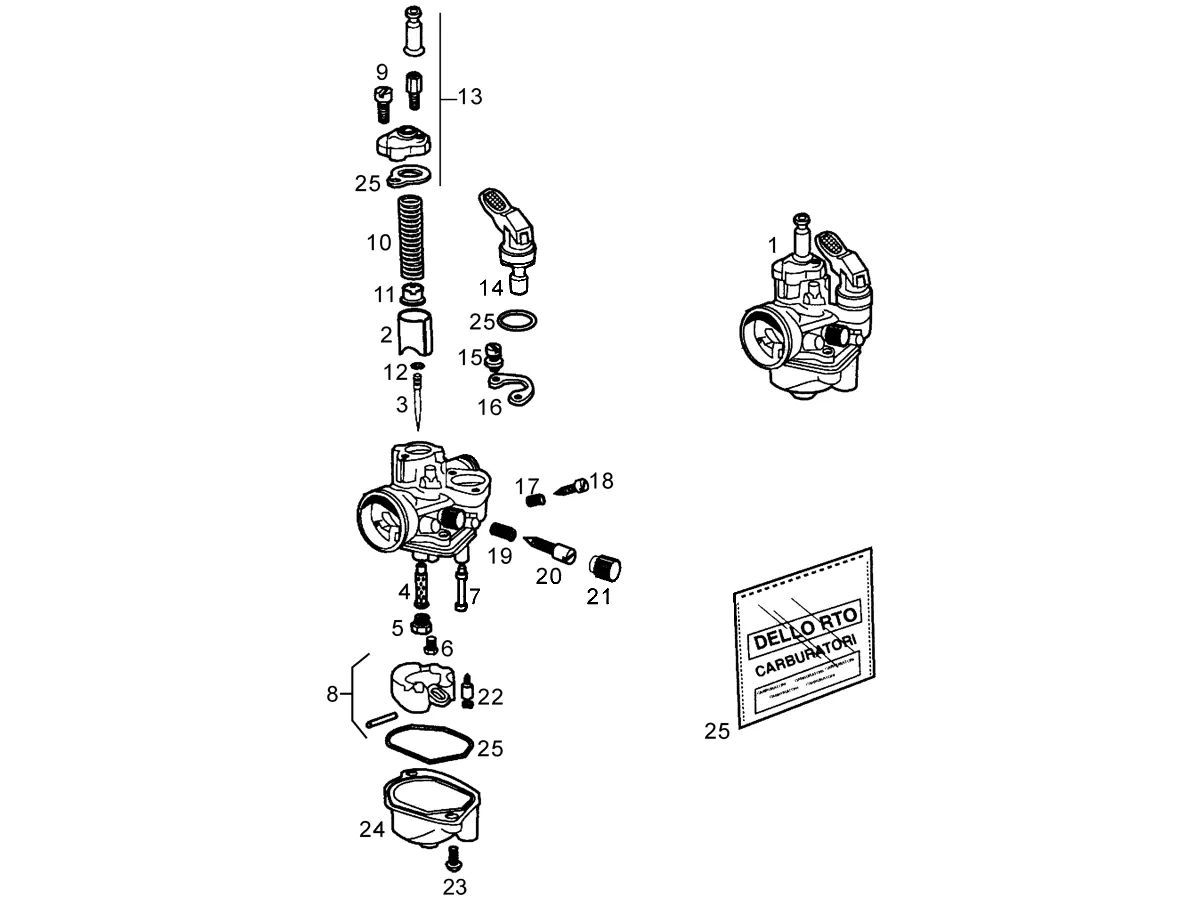

Exploded view — Carburator

Products

1 CARBURETOR SD.R X-TR-E1 IIV 00H03245011 No longer available

• 00H03245011 CARBURETOR SD.R X-TR-E1 IIV
  No longer available
• CM149901 Carburettor
  No longer available

2 Gas valve Available 00F03201211

•

  Throttle Slide Piaggio Group · 00F03201211 Available

  € 30,01

  Add to cart

3 NEEDLE Available 00G03201431

•

  Needle Valve Piaggio Group · 00G03201431 Available

  € 60,60

  Add to cart

4 Needle valve Backorder CM106217

•

  Jet Piaggio Group · CM106217 Backorder

  € 10,88

  Add to cart

5 MAIN JET 65 00H03207031 No longer available

• 00H03207031 MAIN JET 65
  No longer available
• 00F03200031 MAIN JET 62
  No longer available

6 Idle jet Backorder CM102104

•

  Jet Size: 33 Piaggio Group · CM102104 Backorder

  € 12,87

  Add to cart

7 IDLE JET Backorder 00H03203481

•

  Starter Jet Piaggio Group · 00H03203481 Backorder

  € 38,55

  Add to cart

8 Float Available 482916

•

  Float Dell Orto Piaggio Group · 482916 Available

  € 19,48

  Add to cart

9 Screw Available 00G03200061

•

  Screw Piaggio Group · 00G03200061 Available

  € 1,50

  Add to cart

10 Valve gas return spring Available 482942

•

  Spring Piaggio Group · 482942 Available

  € 1,69

  Add to cart

11 Conical pin clip Available 288873

•

  Tapered Needle Clip Dell Orto Piaggio Group · 288873 Available

  € 2,59

  Add to cart

12 Seeger Available 288872

•

  Tapered Needle Clip Dell Orto Piaggio Group · 288872 Available

  € 1,59

  Add to cart

13 COVER CARBURETOR TOP Backorder 00H03202231

•

  Carburettor Cover Piaggio Group · 00H03202231 Backorder

  € 52,14

  Add to cart

14 Starter Available CM146201

•

  Starter Assembly Piaggio Group · CM146201 Available

  € 51,78

  Add to cart

15 Screw Available 00G03200541

•

  Screw Piaggio Group · 00G03200541 Available

  € 2,50

  Add to cart

16 Plate Available 00G03200551

•

  Locking Ring for carburettor cable Piaggio Group · 00G03200551 Available

  € 4,67

  Add to cart

17 Spring Backorder 00G03200721

•

  Spring Piaggio Group · 00G03200721 Backorder

  € 1,37

  Add to cart

18 Air adj.screw cpl. Backorder 00G03200731

•

  Adjusting Screw Piaggio Group · 00G03200731 Backorder

  € 10,08

  Add to cart

19 Spring Available 152608

•

  Spring Piaggio Group · 152608 Available

  € 1,40

  Add to cart

20 THROOTLE VALVE ADJUSTER SCREW Backorder 00G04100131

•

  Adjusting Screw Piaggio Group · 00G04100131 Backorder

  € 25,39

  Add to cart

21 THROOTLE VALVE ADJUSTER SCREW Backorder 00G04100741

•

  Knurled Screw Piaggio Group · 00G04100741 Backorder

  € 6,49

  Add to cart

22 Float Available 482916

•

  Float Dell Orto Piaggio Group · 482916 Available

  € 19,48

  Add to cart

23 Screw Available 00G03201091

•

  Screw Piaggio Group · 00G03201091 Available

  € 1,86

  Add to cart

24 Fuel chamber 847519 No longer available

• 847519 Fuel chamber
  No longer available

25 Gasket envelope (Dellorto PHVA) Available 498409

•

  Carburettor Gasket Kit Dell Orto Piaggio Group · 498409 Available

  € 15,11

  Add to cart

27 KIT CARBURETOR HEATER 00H06000151 No longer available

• 00H06000151 KIT CARBURETOR HEATER
  No longer available
