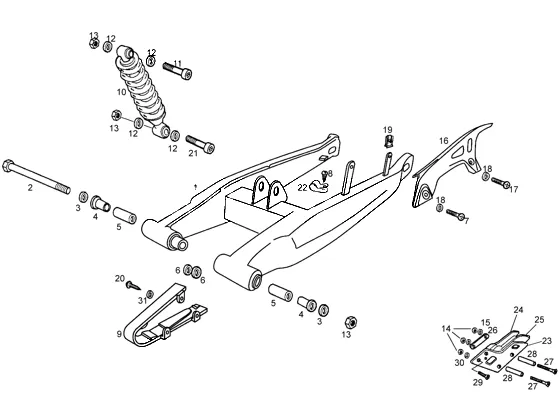

Exploded view — Swing Arm-shock Absorber

Products

1 Swing arm 00H00316012B No longer available

• 00H00316012B Swing arm
  No longer available

2 Rear swing arm pin Available 00H013042025

•

  Screw Piaggio Group · 00H013042025 Available

  € 17,25

  Add to cart

3 50 - Washer Available 709037

•

  Washer 12,5x20x2 mm Piaggio Group · 709037 Available

  € 0,99

  Add to cart

4 Bush Available 00002503230

•

  Sleeve Piaggio Group · 00002503230 Available

  € 8,64

  Add to cart

5 Spacer Available 00H00301401

•

  Spacer Piaggio Group · 00H00301401 Available

  € 14,13

  Add to cart

6 Washer Available 00D01300192

•

  Washer Piaggio Group · 00D01300192 Available

  € 2,47

  Add to cart

7 Screw Available 00012061200

•

  Screw M6 Piaggio Group · 00012061200 Available

  € 1,44

  Add to cart

8 Screw Available AP8150246

•

  Oval Head Screw Piaggio Group · AP8150246 Available

  € 4,95

  Add to cart

9 Guard chain sliding shoe Available 00H01803331

•

  Chain Guide Piaggio Group · 00H01803331 Available

  € 21,97

  Add to cart

10 Rear shock absorber Backorder 00H01508191

•

  Shocks Piaggio Group · 00H01508191 Backorder

  € 464,82

  Add to cart

11 Screw Available 00H00303892

•

  Screw M12 Piaggio Group · 00H00303892 Available

  € 8,91

  Add to cart

12 Washer Available 00003115422

•

  Washer Piaggio Group · 00003115422 Available

  € 1,75

  Add to cart

13 Nut Available 00023112000

•

  Standard nut M12x175 Piaggio Group · 00023112000 Available

  € 1,48

  Add to cart

14 Nut Available 00000023050

•

  Standard nut Piaggio Group · 00000023050 Available

  € 2,69

  Add to cart

15 Washer gasket Available 847226

•

  Shim Piaggio Group · 847226 Available

  € 0,99

  Add to cart

16 Chain guard Available 00H01508181

•

  Chain guard Piaggio Group · 00H01508181 Available

  € 36,61

  Add to cart

17 Screw Available 00012161600

•

  Screw M6 Piaggio Group · 00012161600 Available

  € 0,99

  Add to cart

18 Washer Available 00D01200171

•

  Shim Ø 6,00 mm Piaggio Group · 00D01200171 Available

  € 1,48

  Add to cart

19 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

20 Screw Available 00011141300

•

  Screw 4,8x13 mm Piaggio Group · 00011141300 Available

  € 1,48

  Add to cart

21 Screw Available 00H00300912

•

  Screw M12x45 Piaggio Group · 00H00300912 Available

  € 6,15

  Add to cart

22 Fairlead Available 864454

•

  Clamp Piaggio Group · 864454 Available

  € 2,63

  Add to cart

23 LF.CHAIN GUIDE PLATE Backorder 00H01801721

•

  Bracket Piaggio Group · 00H01801721 Backorder

  € 69,15

  Add to cart

24 RT.CHAIN GUIDE PLATE Backorder 00H01802291

•

  Bracket Piaggio Group · 00H01802291 Backorder

  € 69,15

  Add to cart

25 CHAIN SUPPORT GUIDE Backorder 00H01803771

•

  Chain Guide Piaggio Group · 00H01803771 Backorder

  € 58,26

  Add to cart

26 RT.CHAIN GUIDE PLATE Backorder 00H01800811

•

  Bracket Piaggio Group · 00H01800811 Backorder

  € 69,15

  Add to cart

27 Screw 00013054500 No longer available

• 00013054500 Screw
  No longer available

28 Spacer Backorder 00H01801791

•

  Spacer Piaggio Group · 00H01801791 Backorder

  € 4,57

  Add to cart

29 Screw M6x12 00013061200 No longer available

• 00013061200 Screw M6x12
  No longer available

30 Washer Available 00000031060

•

  Washer Ø 6,00 mm Piaggio Group · 00000031060 Available

  € 0,99

  Add to cart
