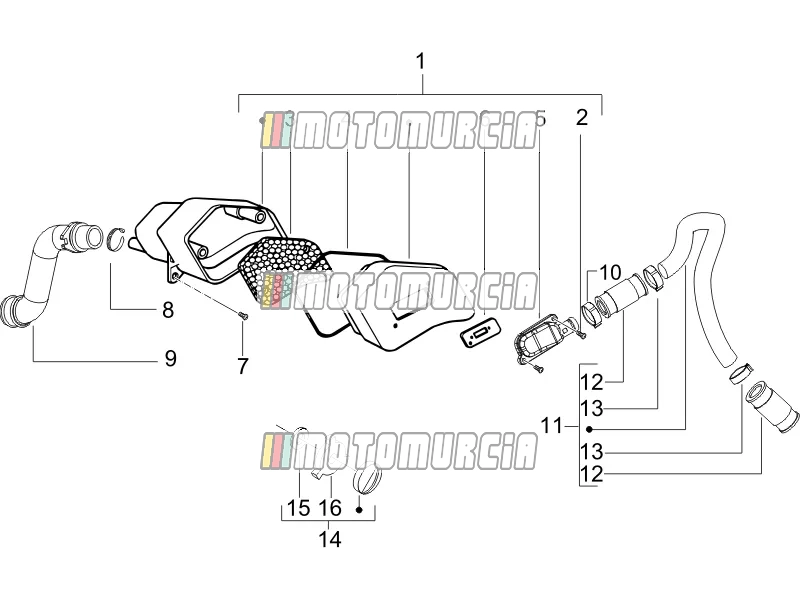

Exploded view — Secondary Air Box

Products

1 Secondary air box 8318595 No longer available

• 8318595 Secondary air box Quantity needed: 2
  No longer available

2 Screw Available 478533

•

  Thread Screw Piaggio Group · 478533 · Quantity needed: 4 Available

  € 1,26

  Add to cart

3 Filter sas Available 486942

•

  Air Filter Insert Piaggio Group · 486942 Available

  € 5,53

  Add to cart

4 Gasket Available 486943

•

  Gasket Piaggio Group · 486943 Available

  € 10,30

  Add to cart

5 Cover sas Available 827209

•

  Lid Piaggio Group · 827209 · Quantity needed: 2 Available

  € 23,70

  Add to cart

6 Diaphragm Available 82758R

•

  Reed valve for secondary air system Piaggio Group · 82758R · Quantity needed: 2 Available

  € 30,08

  Add to cart

7 Screw Available 015597

•

  Screw M5x25 Piaggio Group · 015597 · Quantity needed: 4 Available

  € 1,75

  Add to cart

8 Clamp Available CM001905

•

  Hose Clamp Piaggio Group · CM001905 · Quantity needed: 2 Available

  € 1,82

  Add to cart

9 Intake pipe sas Available 827208

•

  Inlet pipe Piaggio Group · 827208 · Quantity needed: 2 Available

  € 7,14

  Add to cart

10 Clamp Available 827444

•

  Clamp Click 21x8 mm Piaggio Group · 827444 · Quantity needed: 4 Available

  € 2,77

  Add to cart

11 Air pipe sas 833740 No longer available

• 833740 Air pipe sas Quantity needed: 2
  No longer available

12 Hose Available 827443

•

  Pipe Piaggio Group · 827443 · Quantity needed: 4 Available

  € 18,53

  Add to cart

14 S.a.s. Cover with filter Available 848860

•

  Cover with filter, for secondary air system Piaggio Group · 848860 · Quantity needed: 2 Available

  € 5,31

  Add to cart

15 Spring plate Available 181351

•

  Sheet nut Piaggio Group · 181351 · Quantity needed: 2 Available

  € 1,26

  Add to cart

16 Filter Available 826462

•

  Filter Insert Piaggio Group · 826462 · Quantity needed: 2 Available

  € 1,73

  Add to cart
