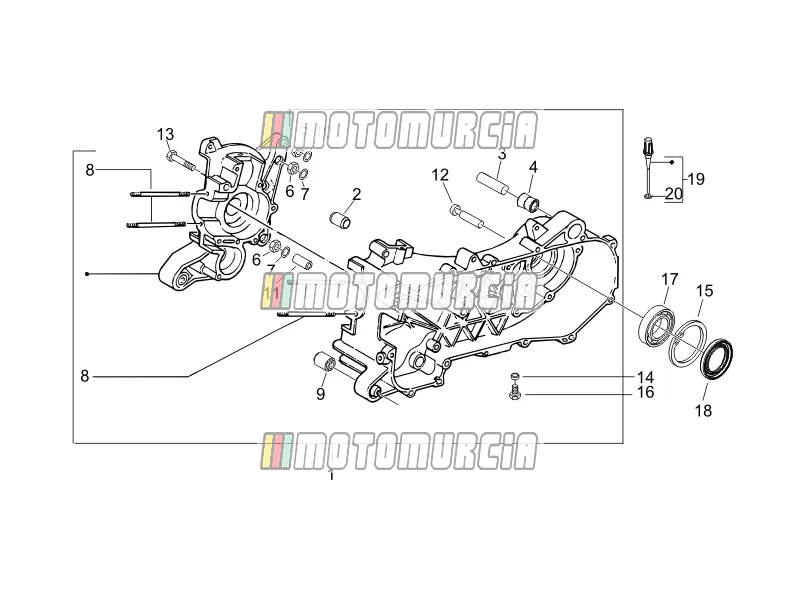

Exploded view — Crankcase

Products

1 Crank-case Available CM1273395

•

  Crankshaft Housing Piaggio Group · CM1273395 Available

  € 1.109,01

  Add to cart

2 Dowel pin Available B015956

•

  Adapter Sleeve 9,5x15 Piaggio Group · B015956 · Quantity needed: 4 Available

  € 1,32

  Add to cart

3 Spacer Available 266625

•

  Spacer Piaggio Group · 266625 Available

  € 2,35

  Add to cart

4 Shock absorber connection silent block Available 267823

•

  Silentblock Piaggio Group · 267823 · Quantity needed: 2 Available

  € 4,20

  Add to cart

5 Nut Available 020006

•

  Standard nut M6 Piaggio Group · 020006 · Quantity needed: 2 Available

  € 1,52

  Add to cart

6 Nut Available 020008

•

  Standard nut M8 Piaggio Group · 020008 · Quantity needed: 4 Available

  € 1,48

  Add to cart

7 Seeger Available 113533

•

  Toothed Lock Washer Piaggio Group · 113533 · Quantity needed: 4 Available

  € 2,35

  Add to cart

8 Stud bolt Available 1A003633R

•

  Stud Screw Piaggio Group · 1A003633R · Quantity needed: 8 Available

  € 3,93

  Add to cart

9 Silentblock - engine mount Available 266773

•

  Silentblock Piaggio Group · 266773 · Quantity needed: 4 Available

  € 12,37

  Add to cart

10 Seeger Available 287223

•

  Toothed Lock Washer Piaggio Group · 287223 · Quantity needed: 2 Available

  € 0,99

  Add to cart

11 Bush Ø8xØ12x8 Available 431860

•

  Bronze Bushes 8x12x8 Piaggio Group · 431860 · Quantity needed: 2 Available

  € 1,65

  Add to cart

12 Shoe fulcrum pin Available 272921

•

  Pin Piaggio Group · 272921 · Quantity needed: 2 Available

  € 15,02

  Add to cart

13 Screw Available B017632

•

  Flanged Screw M6x45 Piaggio Group · B017632 · Quantity needed: 16 Available

  € 2,77

  Add to cart

14 Washer Available 485703

•

  Washer 8,2x12x1 mm Piaggio Group · 485703 · Quantity needed: 2 Available

  € 1,25

  Add to cart

15 Seeger Available 006647

•

  Circlip Ø 47,00 mm Piaggio Group · 006647 · Quantity needed: 2 Available

  € 1,29

  Add to cart

16 Screw Available 269755

•

  Screw M8x12 Piaggio Group · 269755 · Quantity needed: 2 Available

  € 1,59

  Add to cart

17 Bearing Available 434735

•

  Wheel bearing 6204 2RSH, 20x47x14 mm Piaggio Group · 434735 · Quantity needed: 2 Available

  € 18,77

  Add to cart

18 Gasket ring Available 478498

•

  Shaft Seal Piaggio Group · 478498 · Quantity needed: 2 Available

  € 6,98

  Add to cart

19 Complete oil level dipstick Available 832130

•

  Oil dipstick Piaggio Group · 832130 Available

  € 6,34

  Add to cart

20 Gasket ring Available 827085

•

  Oil seal 14,43x9,19x2,62 mm Piaggio Group · 827085 Available

  € 0,99

  Add to cart
