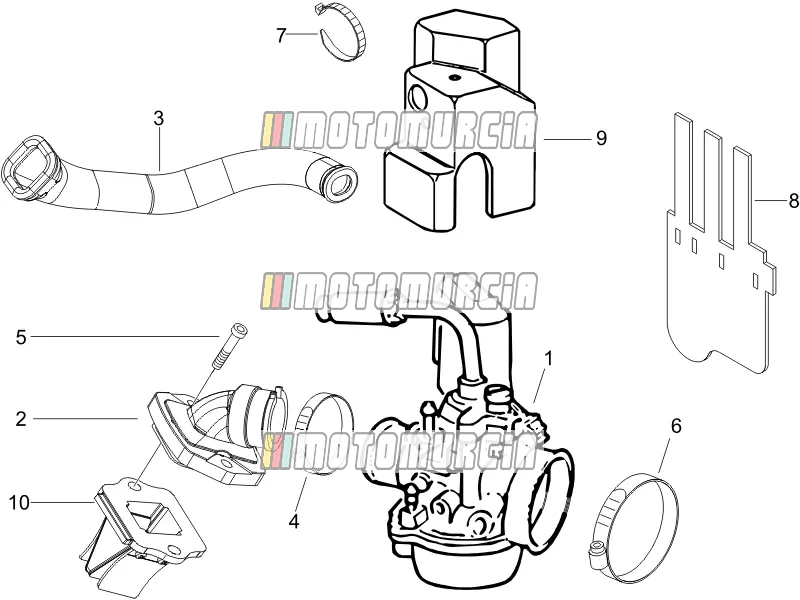

Exploded view — Carburettor, Assembly - Union Pipe

Products

1 Carburettor Available 840886

•

  Carburettor Piaggio Group · 840886 · Quantity needed: 2 Available

  € 243,59

  Add to cart

2 Intake Manifold Available 1A008824

•

  Intake manifold Piaggio Group · 1A008824 · Quantity needed: 2 Available

  € 15,10

  Add to cart

3 Air duct Available 488129

•

  Hose Piaggio Group · 488129 · Quantity needed: 2 Available

  € 17,44

  Add to cart

4 Clamp 1A006280 No longer available

• 1A006280 Clamp Quantity needed: 2
  No longer available

5 Screw (M6x22) Available 1A000352

•

  Screw M6x22 Piaggio Group · 1A000352 · Quantity needed: 4 Available

  € 3,71

  Add to cart

6 Clamp (D=10 mm) Available CM002905

•

  Clamp Piaggio Group · CM002905 · Quantity needed: 2 Available

  € 0,99

  Add to cart

7 Clamp Available CM002901

•

  Clamping Spring Piaggio Group · CM002901 · Quantity needed: 2 Available

  € 0,99

  Add to cart

8 Guard Backorder 573390

•

  Splash guard Piaggio Group · 573390 · Quantity needed: 2 Backorder

  € 13,30

  Add to cart

9 Hood for carburettor Available 832186

•

  Bonnet Piaggio Group · 832186 · Quantity needed: 2 Available

  € 19,03

  Add to cart

10 Reed valve Available 82774R

•

  Reed valve Piaggio Group · 82774R · Quantity needed: 2 Available

  € 32,50

  Add to cart
