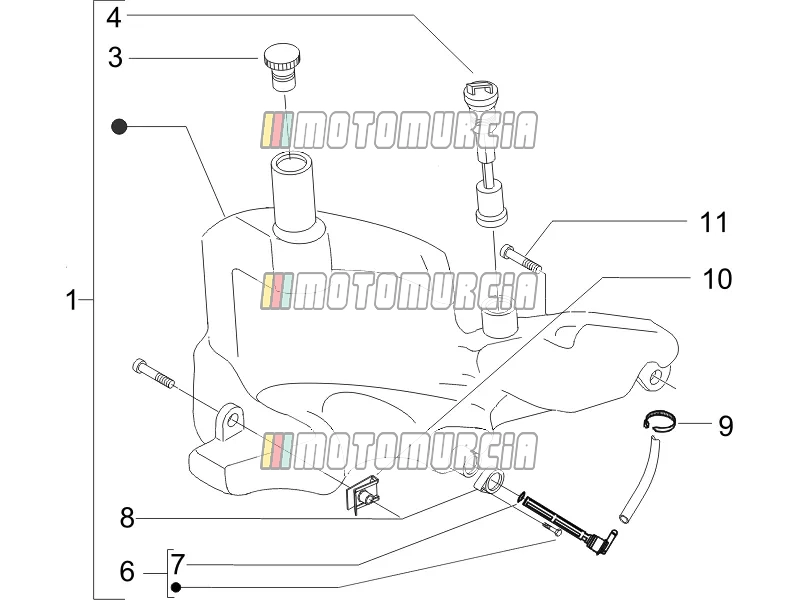

Exploded view — Oil Tank

Products

1 Tank Available 299086

•

  Oil Tank Piaggio Group · 299086 · Quantity needed: 2 Available

  € 90,82

  Add to cart

3 Cap oil filler Available 259829

•

  Tank Cap Piaggio Group · 259829 · Quantity needed: 2 Available

  € 6,20

  Add to cart

4 Carburetor, Float assy Available 573080

•

  Oil level guage, 4-pole Piaggio Group · 573080 · Quantity needed: 2 Available

  € 64,19

  Add to cart

6 Complete coupling Available 574362

•

  Nozzle Piaggio Group · 574362 · Quantity needed: 2 Available

  € 6,20

  Add to cart

7 O-Ring Available 196868

•

  Gasket Piaggio Group · 196868 · Quantity needed: 2 Available

  € 3,36

  Add to cart

8 Clamp Available 879888

•

  Clamp Piaggio Group · 879888 · Quantity needed: 2 Available

  € 8,91

  Add to cart

9 Clamp Available CM002903

•

  Clamp Piaggio Group · CM002903 · Quantity needed: 2 Available

  € 0,99

  Add to cart

10 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart

11 Screw (M6x16) Available 575249

•

  Screw M6 Piaggio Group · 575249 · Quantity needed: 4 Available

  € 0,99

  Add to cart
