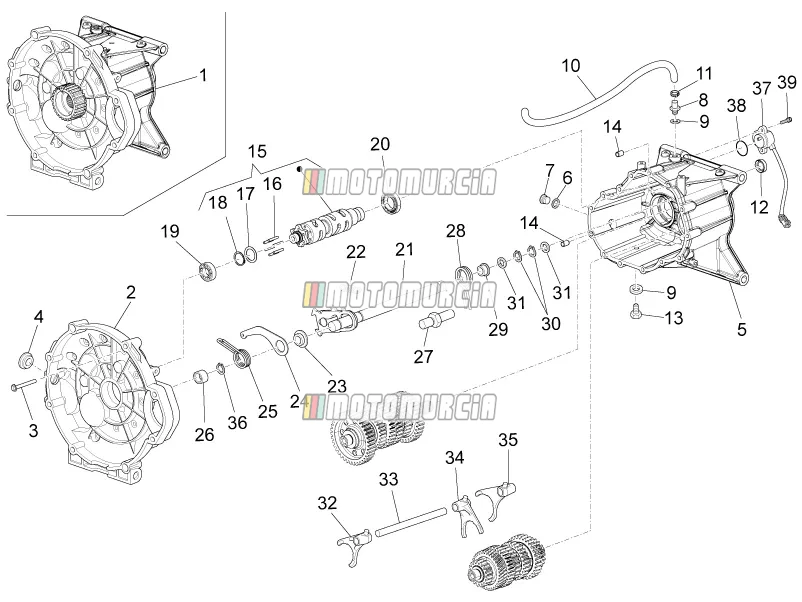

Exploded view — Transmission / Shift drum / Shift Fork
‹ Back to model
Moto Guzzi Audace 1400 E4 ABS 2016
Products
1 Transmission, assy Backorder
-
Manual gearbox Piaggio Group · 9769975 Backorder · Shipped in 2–4 weeks€ 3.652,74
2 Clutch housing, grey Backorder
-
Clutch Cover Piaggio Group · B0630754 Backorder · Shipped in 2–4 weeks€ 325,91
3 Screw w/ flange M6x55 Available
-
Flanged Screw M6x55 Piaggio Group · GU97202355 · Quantity needed: 14 Available · Shipped in 3–5 working days€ 2,76
4 5 - Cover Available
-
Screw Plug Piaggio Group · GU93180220 Available · Shipped in 3–5 working days€ 4,49
5 Transmission cage Backorder
-
Gear Box Housing Piaggio Group · 8868655 Backorder · Shipped in 2–4 weeks€ 707,08
6 Washer gasket Available
-
Copper Flange Gasket 18,25x24x1 mm Piaggio Group · GU18144350 Available · Shipped in 3–5 working days€ 7,25
7 Oil plug M18x1,5 Available
-
Oil Filler Screw M18x1.5 Piaggio Group · GU95980319 Available · Shipped in 3–5 working days€ 14,07
8 Breather plug Backorder
-
Bleeder Screw Piaggio Group · GU05204930 Backorder · Shipped in 2–4 weeks€ 21,45
9 Gasket (10x18x1,5) Available
-
Oil seal 10x18x1,5 mm Piaggio Group · GU01528930 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 5,01
10 Tube 5.5x10" Available
-
AP8120952 Tube 5.5x10"Petrol Hose 5,5x10 mm Piaggio Group · 896544 ↻ Replaces AP8120952, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 32,88
11 Clamp Available
-
Clamp Ø 10,10 mm Piaggio Group · AP8101595 Available · Shipped in 3–5 working days€ 4,71
12 Gasket ring 14x24x7 Available
-
Shaft Seal 14x24x7 mm Piaggio Group · GU90401424 Available · Shipped in 3–5 working days€ 36,76
13 Oil drain plug (Magnetic) Available
-
Oil drain screw M10x1 Piaggio Group · GU31003766 Available · Shipped in 3–5 working days€ 16,82
14 Bushing 6,6x9x13 Available
-
Adapter Sleeve 6,6x9x13 Piaggio Group · GU19002020 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 8,71
15 Shift cam cpl. Backorder
-
Gear shift drum Piaggio Group · 886875 Backorder · Shipped in 2–4 weeks€ 144,60
16 Pin Backorder
-
Screw Piaggio Group · GU05234631 · Quantity needed: 6 Backorder · Shipped in 2–4 weeks€ 5,42
17 Spacer Backorder
-
Shim Piaggio Group · GU05235531 Backorder · Shipped in 2–4 weeks€ 58,99
18 Seeger Available
-
Circlip Piaggio Group · GU90271022 Available · Shipped in 3–5 working days€ 1,62
19 Bearing Available
-
Ball bearing Piaggio Group · GU92201117 Available · Shipped in 3–5 working days€ 13,81
20 Bearing Available
-
Ball bearing Piaggio Group · GU92201025 Available · Shipped in 3–5 working days€ 18,65
21 Preselection complete Backorder
-
GU05236231 Preselection completeQuick shifter Piaggio Group · 2A000943 ↻ Replaces GU05236231, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks€ 133,90
22 Spring Available
-
Spring Piaggio Group · GU05238231 Available · Shipped in 3–5 working days€ 5,55
23 Bushing Backorder
-
Sleeve Piaggio Group · GU05238431 Backorder · Shipped in 2–4 weeks€ 15,84
24 Index assy. lever Backorder
-
Index Lever Piaggio Group · B064112 Backorder · Shipped in 2–4 weeks€ 13,76
25 Index spring Available
-
Clamping Spring Piaggio Group · B064113 Available · Shipped in 3–5 working days€ 4,49
26 Spacer Available
-
Sleeve Piaggio Group · GU05234230 Available · Shipped in 3–5 working days€ 9,98
27 Fixing pin Backorder
-
Screw Piaggio Group · B063905 Backorder · Shipped in 2–4 weeks€ 17,68
28 Spring Available
-
Clamping Spring Piaggio Group · B063956 Available · Shipped in 3–5 working days€ 37,13
29 Spacer Backorder
-
Sleeve Piaggio Group · GU05238131 Backorder · Shipped in 2–4 weeks€ 14,07
30 Seeger Available
-
Circlip Piaggio Group · GU90271014 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,21
31 Fifth wheel Backorder
-
Thrust Washer Piaggio Group · GU05239330 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks€ 2,12
32 Fork 1a-3a Backorder
-
Shift fork Piaggio Group · GU05230531 Backorder · Shipped in 2–4 weeks€ 172,92
33 Fork shaft Backorder
-
Gearshift Piaggio Group · GU05232431 Backorder · Shipped in 2–4 weeks€ 32,48
34 Fork 5a-6a
-
GU05232631 Fork 5a-6aNo longer available
35 Fork 2a-4a Backorder
-
Shift fork Piaggio Group · GU05230831 Backorder · Shipped in 2–4 weeks€ 175,38
36 Seeger Available
-
Screw Piaggio Group · GU90353014 Available · Shipped in 3–5 working days€ 8,47
37 Gear position sensor Available
-
Position switch, for gearbox order Piaggio Group · 857265 Available · Shipped in 3–5 working days€ 172,10
38 O-Ring Available
-
O-Ring Piaggio Group · 857494 Available · Shipped in 3–5 working days€ 8,91
39 Screw Available
-
Flanged Screw M5x15 Piaggio Group · AP8152273 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,18
