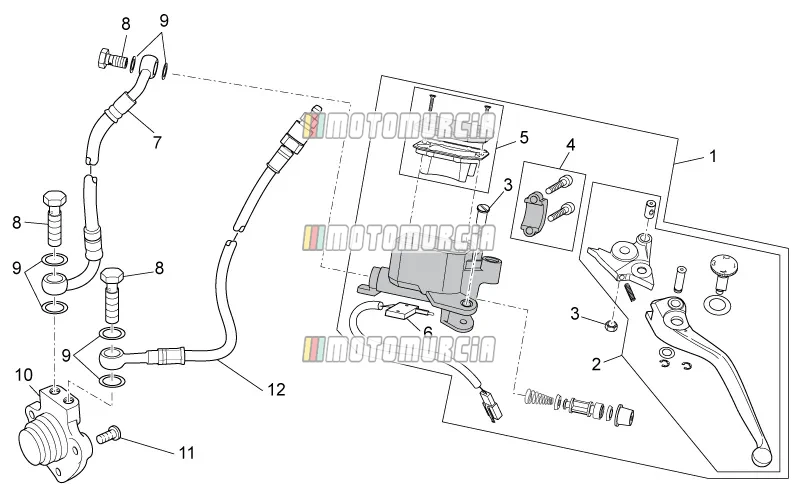

Exploded view — Clutch Control Complete
‹ Back to model
Moto Guzzi Breva 1200 E3 ABS 2007
Products
1 Clutch master cylinder Available
-
Clutch Handle silver Piaggio Group · 978607 Available · Shipped in 3–5 working days€ 493,76
-
AP8106713 Clutch pumpClutch Handle silver Piaggio Group · 978607 ↻ Replaces AP8106713, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 493,76
2 Clutch lever Available
-
Clutch Lever silver Piaggio Group · 981046 Available · Shipped in 3–5 working days€ 168,73
-
Clutch Lever gold Piaggio Group · AP8118659 Available · Shipped in 3–5 working days€ 143,46
Alternatives from other brands
LEVER CLUTCH SIL 62640351A 2torq · 3069522 Available · Shipped in 4–7 working days€ 26,02
3 Lever pin Available
-
GU03604845 Lever pinBolts Piaggio Group · 2B003040 ↻ Replaces GU03604845, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 17,36
4 U-bolt Backorder
-
Handlebar clamp bracket Piaggio Group · AP8113993 Backorder · Shipped in 2–4 weeks€ 64,14
5 Fuel cap Available
-
Lid Piaggio Group · AP8113997 Available · Shipped in 3–5 working days€ 56,20
6 Microswitch Available
-
Microswitch, with nut and connection cable Piaggio Group · AP8113998 Available · Shipped in 3–5 working days€ 142,37
7 Clutch pipe Available
-
Clutch line Piaggio Group · GU05606530 Available · Shipped in 3–5 working days€ 79,70
8 Oil pipe screw Available
-
Hollow screw Piaggio Group · AP8133594 · Quantity needed: 3 Available · Shipped in 3–5 working days€ 20,11
9 Washer gasket Available
-
AP8113004 Washer gasket Quantity needed: 6Oil seal 10x14x1,6 mm Piaggio Group · AP8113004 Available · Shipped in 3–5 working days€ 2,18Oil seal 10x14x1,6 mm Piaggio Group · Ap8113004 Available · Shipped in 3–5 working days€ 2,18
10 Clutch command cylinder
-
GU05086330 Clutch command cylinderNo longer available
11 Screw with flange Available
-
Flanged Screw M6x16 Piaggio Group · AP8152278 · Quantity needed: 3 Available · Shipped in 3–5 working days€ 2,35
12 Float chambe clutch pipe Available
-
Clutch line Piaggio Group · GU05606630 Available · Shipped in 3–5 working days€ 78,53
