Exploded view — Crankcase

‹ Back to model
Moto Guzzi Breva 1200 E3 ABS 2007 Moto Guzzi Breva 1200 E3 ABS 2007

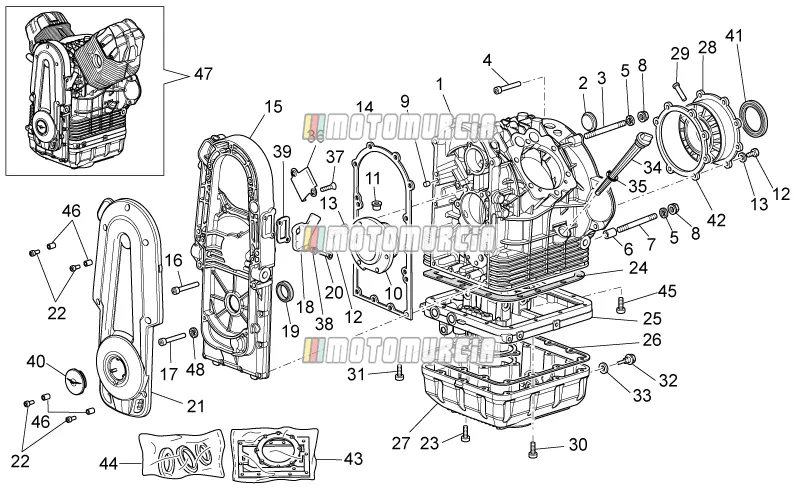

Crankcase

Products

1 Crankcase, grey Backorder 976110
  • 976110 Crankcase, grey
    Crankshaft Housing Piaggio Group · 976632 ↻ Replaces 976110, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks
    € 748,32
2 Disc GU12003900 No longer available
  • GU12003900 Disc
    No longer available
3 Stud bolt Available GU96508066
  • Stud Screw M8x66 Piaggio Group · GU96508066 · Quantity needed: 3 Available · Shipped in 3–5 working days
    € 53,08
4 Screw Available AP8152291
  • Flanged Screw M8x45 Piaggio Group · AP8152291 Available · Shipped in 3–5 working days
    € 2,35
5 Washer Available GU14615901
  • Shim 8,4x13x0,8 mm Piaggio Group · GU14615901 · Quantity needed: 5 Available · Shipped in 3–5 working days
    € 2,78
6 Coupling bush Available GU12018900
  • Sleeve Piaggio Group · GU12018900 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 11,36
7 Stud bolt Available GU96508075
  • Stud Screw M8x75 Piaggio Group · GU96508075 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 14,24
8 Flanged nut M8 Available GU92660021
  • Standard nut M8 Piaggio Group · GU92660021 · Quantity needed: 5 Available · Shipped in 3–5 working days
    € 1,79
9 Pin Available GU95512081
  • Adapter Sleeve Piaggio Group · GU95512081 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 4,91
10 Complete Flange Available GU14011900
  • GU14011900 Complete Flange
    Flange Piaggio Group · GU140119005 ↻ Replaces GU14011900, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 233,28
11 Pin Backorder GU12012200
  • Pin Piaggio Group · GU12012200 Backorder · Shipped in 2–4 weeks
    € 16,21
12 Hex screw M8x25 (M8x25) Available GU98084425
  • Screw Piaggio Group · GU98084425 · Quantity needed: 14 Available · Shipped in 3–5 working days
    € 1,29
13 Spring washer 8x15x0,3 Available GU61270300
  • Snap Ring 8x15x0,3 mm Piaggio Group · GU61270300 · Quantity needed: 14 Available · Shipped in 3–5 working days
    € 2,30
14 Cover gasket Available GU05001231
  • Cover Gasket Piaggio Group · GU05001231 Available · Shipped in 3–5 working days
    € 35,68
15 Cover grey Backorder 976098
  • Lid, grey Piaggio Group · 976098 Backorder · Shipped in 2–4 weeks
    € 133,10
16 Screw Available AP8150046
  • Screw M8x55 Piaggio Group · AP8150046 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 2,27
17 Screw Available GU98682330
  • Screw M6x30 Piaggio Group · GU98682330 · Quantity needed: 10 Available · Shipped in 3–5 working days
    € 1,48
18 Joint GU05007230 No longer available
  • GU05007230 Joint
    No longer available
19 Oil seal (viton) Available GU90412237
  • Oil seal Piaggio Group · GU90412237 Available · Shipped in 3–5 working days
    € 31,73
20 10 - Screw Available GU98682320
  • Screw M6x20 Piaggio Group · GU98682320 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,48
21 Alternator cover grey Available GU05001630
  • Lid, grey Piaggio Group · GU05001630 Available · Shipped in 3–5 working days
    € 34,03
22 Screw Available GU98682316
  • Screw M6x16 Piaggio Group · GU98682316 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 1,48
23 Hexagonal head screw M6x35 Available GU98680335
  • GU98680335 Hexagonal head screw M6x35 Quantity needed: 4
    Screw M6x35 Piaggio Group · AP8150285 ↻ Replaces GU98680335, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 2,35
24 Gasket Available GU01003651
  • Gasket Piaggio Group · GU01003651 Available · Shipped in 3–5 working days
    € 15,21
25 Flange grey Backorder 976083
  • Flange Piaggio Group · 976083 Backorder · Shipped in 2–4 weeks
    € 180,29
26 Gasket Available GU05003630
  • Oil sump gasket Piaggio Group · GU05003630 Available · Shipped in 3–5 working days
    € 16,02
27 Oil sump grey 976101 No longer available
  • 976101 Oil sump grey
    No longer available
28 Complete Flange GU12011400 No longer available
  • GU12011400 Complete Flange
    No longer available
29 Pin GU12011700 No longer available
  • GU12011700 Pin
    No longer available
30 Hex socket screw Available AP4ADN000007
  • AP4ADN000007 Hex socket screw Quantity needed: 14
    Screw M6x55 Piaggio Group · GU98620355 ↻ Replaces AP4ADN000007, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,74
31 Screw (M6x60) Available GU98680360
  • Screw M6x60 Piaggio Group · GU98680360 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,76
32 Oil drain plug (Magnetic) Available GU31003766
  • Oil drain screw M10x1 Piaggio Group · GU31003766 Available · Shipped in 3–5 working days
    € 16,82
33 Gasket (10x18x1,5) Available GU01528930
  • Oil seal 10x18x1,5 mm Piaggio Group · GU01528930 Available · Shipped in 3–5 working days
    € 5,01
34 Oil level plug Available GU05004930
  • Oil dipstick Piaggio Group · GU05004930 Available · Shipped in 3–5 working days
    € 14,77
35 O-Ring (17,86x2,62) Available GU90706178
  • O-Ring 17,86x2,62 mm Piaggio Group · GU90706178 Available · Shipped in 3–5 working days
    € 1,26
36 Plate Backorder GU05007330
  • Lid Piaggio Group · GU05007330 Backorder · Shipped in 2–4 weeks
    € 8,85
37 Screw M4x8 Backorder GU98257408
  • Screw Piaggio Group · GU98257408 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks
    € 2,61
38 Bushing 6,4x8,4x10,5 Available GU91120607
  • Sleeve 6,4x8,4x10,5 Piaggio Group · GU91120607 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 5,63
39 O-ring 34.65x1.78 Viton Available GU90706347
  • GU90706347 O-ring 34.65x1.78 Viton
    O-Ring 34,65x1,78 mm Piaggio Group · 177408 ↻ Replaces GU90706347, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,52
40 Cover Backorder GU05002130
  • Screw Plug Piaggio Group · GU05002130 Backorder · Shipped in 2–4 weeks
    € 17,19
41 Oil seal Available GU90405367
  • Oil seal Piaggio Group · GU90405367 Available · Shipped in 3–5 working days
    € 37,32
42 Gasket Available GU05011830
  • Gasket Piaggio Group · GU05011830 Available · Shipped in 3–5 working days
    € 11,11
43 Gasket set - engine 976184 No longer available
  • 976184 Gasket set - engine
    No longer available
44 Engine oil seal kit/Gear box 976185 No longer available
  • 976185 Engine oil seal kit/Gear box
    No longer available
45 Screw (M6x40) Available GU98680340
  • Screw M6x40 Piaggio Group · GU98680340 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,48
46 Bushing 6,8x8,8x5,8 Available GU91120606
  • Sleeve 6,8x8,8x5,8 Piaggio Group · GU91120606 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 5,59
47 Engine complete 976930 No longer available
  • 976930 Engine complete
    No longer available
48 Washer Available GU95008206
  • Shim 6,15x11x0,8 mm Piaggio Group · GU95008206 · Quantity needed: 8 Available · Shipped in 3–5 working days
    € 2,78
