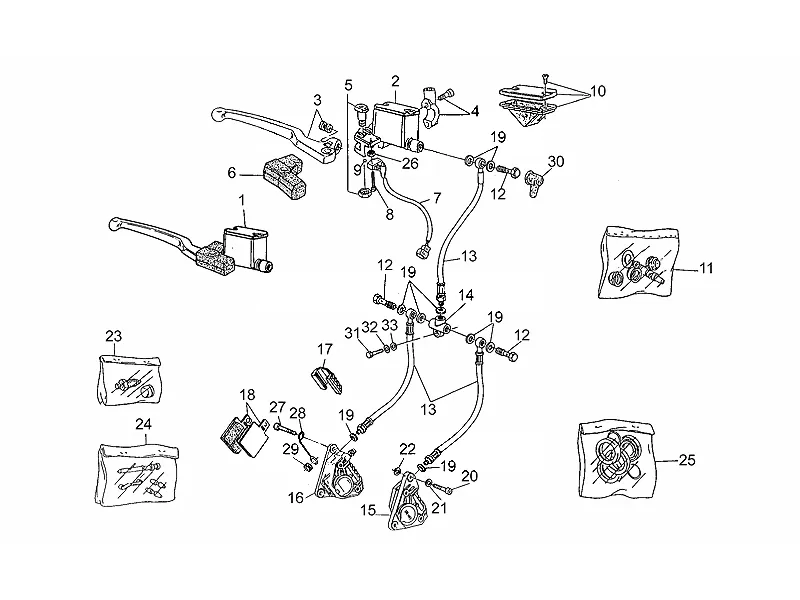

Exploded view — Front Master Cilinder

Products

1 Brake hydraulic pump GU28660178 No longer available

• GU28660178 Brake hydraulic pump
  No longer available

2 Brake hydraulic pump GU28660178 No longer available

• GU28660178 Brake hydraulic pump
  No longer available

3 Brake lever GU28605678 No longer available

• GU28605678 Brake lever
  No longer available

4 Brake lever U-bolt Available AP8113203

•

  Clamp Piaggio Group · AP8113203 Available

  € 49,59

  Add to cart

5 Pin Backorder GU27604815

•

  Screw Piaggio Group · GU27604815 Backorder

  € 21,28

  Add to cart

6 Lever cover GU27663615 No longer available

• GU27663615 Lever cover
  No longer available

7 Brake light switch GU27749815 No longer available

• GU27749815 Brake light switch
  No longer available

8 Screw GU98200214 No longer available

• GU98200214 Screw Quantity needed: 2
  No longer available

9 Ball GU92295708 No longer available

• GU92295708 Ball
  No longer available

10 Pump cover GU27661115 No longer available

• GU27661115 Pump cover
  No longer available

11 Pump revision kit GU28659378 No longer available

• GU28659378 Pump revision kit
  No longer available

12 Oil pipe screw * GU95990028 No longer available

• GU95990028 Oil pipe screw * Quantity needed: 3
  No longer available

13 Flexible pipe GU31657160 No longer available

• GU31657160 Flexible pipe Quantity needed: 3
  No longer available

14 Distributor Backorder GU31656860

•

  Distributor Piaggio Group · GU31656860 Backorder

  € 46,97

  Add to cart

15 RH front brake caliper Grimeca GU31652265 No longer available

• GU31652265 RH front brake caliper Grimeca
  No longer available

16 RH front brake caliper GU31652365 No longer available

• GU31652365 RH front brake caliper
  No longer available

17 Brake caliper cover BREMBO GU39654700 No longer available

• GU39654700 Brake caliper cover BREMBO Quantity needed: 2
  No longer available

18 Brake pads Available GU27654610

•

  Brake pad set Brembo Piaggio Group · GU27654610 Available

  € 17,00

  Add to cart

19 Gasket Available GU25656100

•

  Gasket Piaggio Group · GU25656100 · Quantity needed: 8 Available

  € 1,75

  Add to cart

20 Screw GU98622422 No longer available

• GU98622422 Screw Quantity needed: 3
  No longer available

21 Spring washer 8x15x0,3 Available GU61270300

•

  Snap Ring 8x15x0,3 mm Piaggio Group · GU61270300 · Quantity needed: 4 Available

  € 2,30

  Add to cart

22 Washer 8,5X18X0,5 Backorder GU95100250

•

  Washer 8,5x18x0,5 mm Piaggio Group · GU95100250 Backorder

  € 18,95

  Add to cart
• GU95100251 Washer 8,5X18X0,8
  No longer available

23 Bleeder+cap BREMBO D.6 GU65659200 No longer available

• GU65659200 Bleeder+cap BREMBO D.6
  No longer available

24 Pins+spring BREMBO GU39659100 No longer available

• GU39659100 Pins+spring BREMBO
  No longer available

25 Brake caliper rev. kit BREMBO GU39659000 No longer available

• GU39659000 Brake caliper rev. kit BREMBO
  No longer available

26 Nut GU92608202 No longer available

• GU92608202 Nut Quantity needed: 2
  No longer available

27 Screw GU98622425 No longer available

• GU98622425 Screw
  No longer available

28 Cable-guide GU23655770 No longer available

• GU23655770 Cable-guide
  No longer available

29 Ring GU91551120 No longer available

• GU91551120 Ring
  No longer available

30 Cap Backorder GU39663801

•

  Cap Piaggio Group · GU39663801 Backorder

  € 11,01

  Add to cart

31 Screw GU98054330 No longer available

• GU98054330 Screw
  No longer available

32 Washer Available GU95008206

•

  Shim 6,15x11x0,8 mm Piaggio Group · GU95008206 Available

  € 2,78

  Add to cart

33 Notched washer GU95021106 No longer available

• GU95021106 Notched washer
  No longer available
