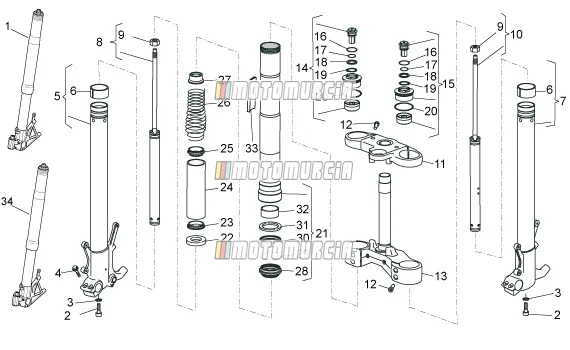

Exploded view — Front Fork

‹ Back to model

Moto Guzzi STELVIO 1200 E3 2008

Products

Position: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

1 R.H. sleeve assy 883678 No longer available

883678 R.H. sleeve assy
No longer available

2 Screw Backorder GU01530588

GU01530588 Screw Quantity needed: 2

Cylinder Screw Piaggio Group · AP8123216 ↻ Replaces GU01530588, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks

€ 8,57

3 Washer Available GU03530529

GU03530529 Washer Quantity needed: 2

Sealing Disk Piaggio Group · AP8123206 ↻ Replaces GU03530529, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

€ 15,28

4 Screw Available AP8150220

Screw M6x30 Piaggio Group · AP8150220 · Quantity needed: 4 Available · Shipped in 3–5 working days

€ 1,21

5 Hub+RH fork leg Backorder 981022

Front Forks right Piaggio Group · 981022 Backorder · Shipped in 2–4 weeks

€ 423,50

6 Bushing Backorder 981023

981023 Bushing Quantity needed: 2

Slide Bushing bottom Piaggio Group · 854000 ↻ Replaces 981023, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks

€ 29,17

7 Hub+LH fork leg 981029 No longer available

981029 Hub+LH fork leg
No longer available

8 RH plunger, complete Backorder 981031

Shock absorber right Piaggio Group · 981031 Backorder · Shipped in 2–4 weeks

€ 215,38

9 Nut GU01530589 No longer available

GU01530589 Nut Quantity needed: 2
No longer available

10 LH plunger, complete 981032 No longer available

981032 LH plunger, complete
No longer available

11 Fork upper plate Backorder 978016

Yoke Piaggio Group · 978016 Backorder · Shipped in 2–4 weeks

€ 181,50

12 Screw M8x30 Backorder GU66530505

GU66530505 Screw M8x30 Quantity needed: 6

Screw Piaggio Group · 600123 ↻ Replaces GU66530505, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks

€ 1,75

13 Stem base Backorder 978018

Fork yoke Piaggio Group · 978018 Backorder · Shipped in 2–4 weeks

€ 314,60

14 RH sleeve plug Backorder 981045

Screw Plug right Piaggio Group · 981045 Backorder · Shipped in 2–4 weeks

€ 94,38

15 LH sleeve plug Backorder 981028

Screw Plug left Piaggio Group · 981028 Backorder · Shipped in 2–4 weeks

€ 94,38

16 O-Ring Available 981024

O-Ring Piaggio Group · 981024 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 1,23

17 O-Ring Available 981025

O-Ring Piaggio Group · 981025 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 0,99

18 Washer Backorder 981026

Washer Piaggio Group · 981026 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 26,52

19 Stop ring Backorder 981027

Locking Ring Piaggio Group · 981027 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 1,65

20 O-Ring Backorder 981152

O-Ring Piaggio Group · 981152 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 5,32

21 Sleeve cpl. Backorder 981044

Sleeve Piaggio Group · 981044 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 221,43

22 Spring seat Backorder 981033

Spring Guide Piaggio Group · 981033 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 29,69

23 Spring guide Backorder 981034

Spring Guide Piaggio Group · 981034 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 47,24

24 Preload tube Backorder 981035

Preload Tube Piaggio Group · 981035 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 25,49

25 Spring guide Backorder 981036

Spring Guide Piaggio Group · 981036 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 13,72

26 Spring Backorder 981037

Fork spring Piaggio Group · 981037 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 155,78

27 Bushing Backorder 981038

Sleeve Piaggio Group · 981038 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 45,22

28 Dust cover Available 981039

981039 Dust cover Quantity needed: 2

Dust guard Piaggio Group · AP8163072 ↻ Replaces 981039, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

€ 48,68

29 Stop ring Available 981040

981040 Stop ring Quantity needed: 2

Locking Ring Piaggio Group · AP8163071 ↻ Replaces 981040, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

€ 4,51

30 Gasket ring 50x63x11 mm Available 981041

981041 Gasket ring 50x63x11 mm Quantity needed: 2

Fork Seal 50x63x11 mm Piaggio Group · AP8163070 ↻ Replaces 981041, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

€ 40,81

31 Cup Available 981042

981042 Cup Quantity needed: 2

Ring Piaggio Group · AP8163069 ↻ Replaces 981042, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

€ 19,94

32 Bushing 981043 No longer available

981043 Bushing Quantity needed: 2
No longer available

33 Reflector, amber Available GU05781630

Reflector yellow Piaggio Group · GU05781630 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 19,67

34 L.H. sleeve assy Backorder 883679

Front Forks left Piaggio Group · 883679 Backorder · Shipped in 2–4 weeks

€ 1.836,91
