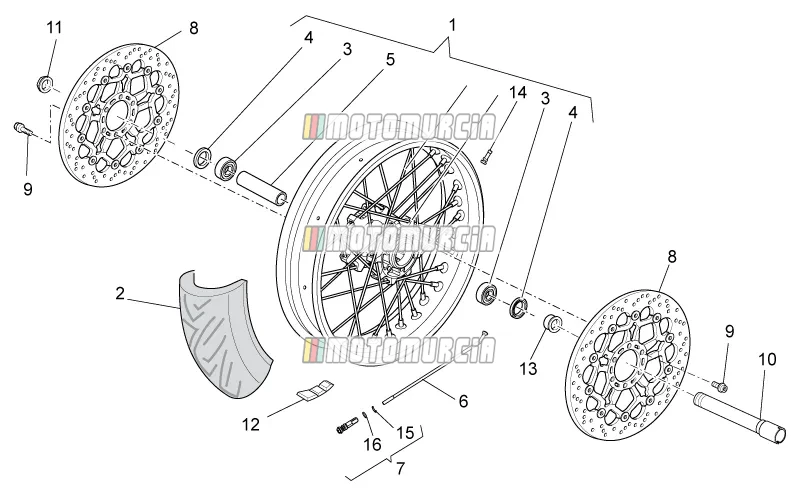

Exploded view Front Wheel — Moto Guzzi STELVIO 1200 E3 2008
‹ Back to model
Moto Guzzi STELVIO 1200 E3 2008
Products
1 Front wheel 2,50x19" Backorder
-
- BEHR brand wheel
- Wheel with CR spokes
Rim 2.50x19, front, chrome, Behr Piaggio Group · 883009 Backorder · Shipped in 2–4 weeks€ 520,30
2 Front tyre 110/80 R19
-
978026 Front tyre 110/80 R19No longer available
3 Bearing Available
-
Wheel bearing 6005 2RS1, 25x47x12 mm Piaggio Group · AP8125777 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 10,88
Alternatives from other brands
6005 2RS C3 Koyo · 60052RSC3 Available · Shipped in 4–7 working days€ 11,27BEARING 6005/C3 2-SIDE SEALED 25X47X12 Prox · 2360052RS Available · Shipped in 4–7 working days€ 15,20Bearing 6005/2RSH C3 Athena · MS250470120M3 Available · Shipped in 7–13 working days€ 11,27
4 Gasket ring 30x47x7 Available
-
Shaft Seal 30x47x7 mm Piaggio Group · AP8125773 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,72
5 Spacer Available
-
- Special Edition version
Spacer Piaggio Group · 978516 Available · Shipped in 3–5 working days€ 43,50
6 Spoke Available
-
- Polished chrome
Spoke chrome plated Piaggio Group · 978864 · Quantity needed: 36 Available · Shipped in 3–5 working days€ 9,56
7 Nipples L=36 Available
-
Spoke Nipples length: 36mm Piaggio Group · 883287 Available · Shipped in 3–5 working days€ 7,96
-
- Special Edition version
Spoke Nipples length: 34mm Piaggio Group · 978810 · Quantity needed: 36 Available · Shipped in 3–5 working days€ 14,13
8 Brake disc
-
978764 Brake disc Quantity needed: 2
- Brembo brand
- Special Edition version
- Year of manufacture: 2009
9 Screw Available
-
GU05611430 Screw Quantity needed: 12
- Special Edition version
Flanged Screw M8x16 Piaggio Group · AP8152285 ↻ Replaces GU05611430, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 2,18
10 Front wheel spindle Front Available
-
Wheel Axle front Piaggio Group · 978030 Available · Shipped in 3–5 working days€ 118,39
11 Nut Available
-
GU01612190 NutStandard nut Piaggio Group · AP8152335 ↻ Replaces GU01612190, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 12,17
12 Counterweight Backorder
-
- Special Edition version
- Standard version
Balance Weight Piaggio Group · GU14616150 Backorder · Shipped in 2–4 weeks€ 20,06
13 Spacer Backorder
-
- Standard version
Spacer Piaggio Group · GU06616300 Backorder · Shipped in 2–4 weeks€ 14,07
14 Tubeless tyre valve Backorder
-
- Year of manufacture: 2009
Tyre valves Piaggio Group · 978814 Backorder · Shipped in 2–4 weeks€ 24,78
15 Snap ring Available
-
- Special Edition version
Snap-in Ring Piaggio Group · 978811 · Quantity needed: 36 Available · Shipped in 3–5 working days€ 2,76
16 O-ring OR2025 Available
-
- Special Edition version
O-Ring Piaggio Group · GU90706061 · Quantity needed: 36 Available · Shipped in 3–5 working days€ 2,76
