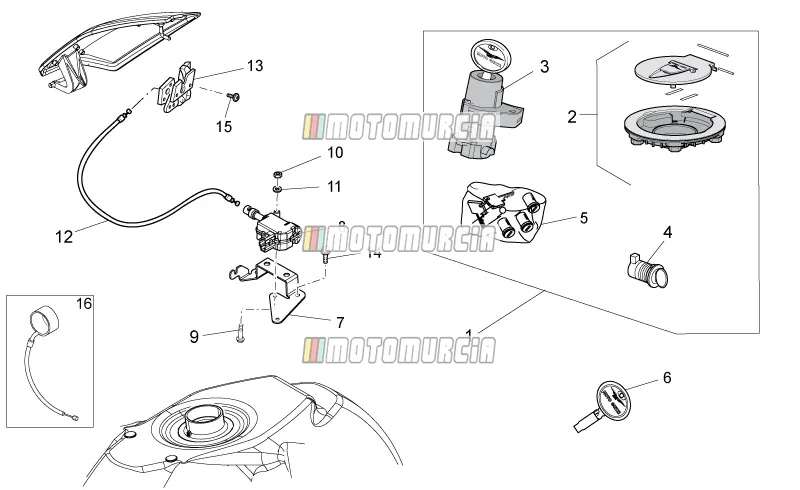

Exploded view — Lock Set

Products

1 Lock kit Backorder 977666

• 977666 Lock kit


  Lock Set Piaggio Group · B063858 ↻ Replaces 977666, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks

  € 584,82

  Add to cart
•

  Lock Set Piaggio Group · B063858 Backorder · Shipped in 2–4 weeks

  € 584,82

  Add to cart

2 Fuel cap Backorder GU05103930

• GU05103930 Fuel cap


  Screw Plug Piaggio Group · B064276 ↻ Replaces GU05103930, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks

  € 475,11

  Add to cart

3 Main switch - steering lock Backorder B063859

• B063859 Main switch - steering lock


  Ignition Lock, (USA) Piaggio Group · B064277 ↻ Replaces B063859, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks

  € 394,73

  Add to cart
•

  Steering Lock Piaggio Group · GU05782530 Backorder · Shipped in 2–4 weeks

  € 259,52

  Add to cart

4 Saddle lock Backorder GU05466830

•

  Lock cylinder Piaggio Group · GU05466830 Backorder · Shipped in 2–4 weeks

  € 140,71

  Add to cart

5 Rotor kit with key Available 978220

•

  Lock Set Piaggio Group · 978220 Available · Shipped in 3–5 working days

  € 143,91

  Add to cart

6 Non-indented key blank Available GU05735530

• GU05735530 Non-indented key blank


  Key Blank Piaggio Group · 977918 ↻ Replaces GU05735530, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 126,08

  Add to cart

7 Support plate Backorder 883038

•

  Bracket Piaggio Group · 883038 Backorder · Shipped in 2–4 weeks

  € 41,30

  Add to cart

8 Front box lock Backorder AP8127650

•

  Luggage Compartment Lock Piaggio Group · AP8127650 Backorder · Shipped in 2–4 weeks

  € 180,37

  Add to cart

9 Screw M4x35 Backorder 883042

•

  Screw M4x35 Piaggio Group · 883042 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

  € 1,28

  Add to cart

10 Nut M4x0,7 Backorder GU92630104

•

  Standard nut M4x0.7 Piaggio Group · GU92630104 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

  € 1,26

  Add to cart

11 Washer 4,3x8x0,5 Backorder GU95008204

•

  Washer Piaggio Group · GU95008204 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

  € 0,99

  Add to cart

12 Lock cable Backorder 883080

•

  Seat release cable Piaggio Group · 883080 Backorder · Shipped in 2–4 weeks

  € 23,64

  Add to cart

13 Lock Available CM023705

•

  Lock cylinder Piaggio Group · CM023705 Available · Shipped in 3–5 working days

  € 21,94

  Add to cart

14 Screw Available AP8152272

•

  Flanged Screw M5x12 Piaggio Group · AP8152272 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

15 Screw Available AP8152339

•

  Flanged Screw M5x9 Piaggio Group · AP8152339 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,35

  Add to cart

16 Immobilizer antenna Available 981087

•

  Aerial Immobiliser Piaggio Group · 981087 Available · Shipped in 3–5 working days

  € 90,73

  Add to cart
