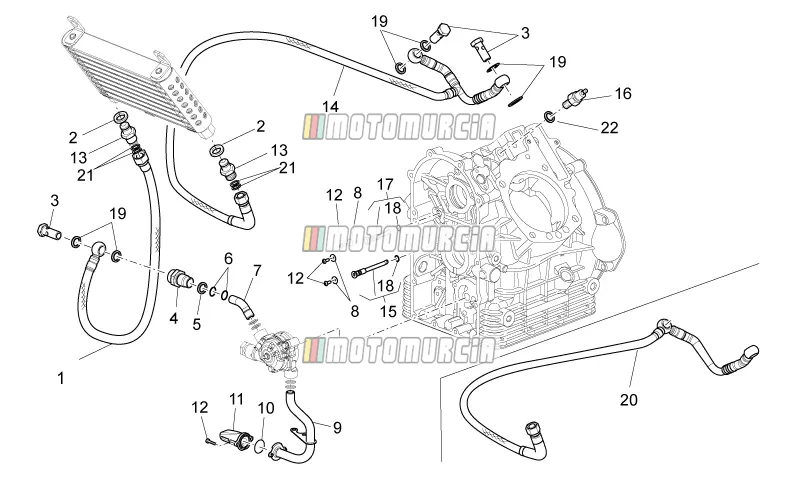

Exploded view — Lubrication System
‹ Back to model
Moto Guzzi STELVIO 1200 E3 2008
Products
1 Pipe
-
978895 PipeNo longer available
2 Washer gasket Available
-
Gasket Piaggio Group · GU01154230 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,52
3 Bored screw Available
-
Hollow screw Piaggio Group · 874223 · Quantity needed: 3 Available · Shipped in 3–5 working days€ 16,77
4 Nipple Available
-
Connection Piaggio Group · 874669 Available · Shipped in 3–5 working days€ 72,02
5 Gasket Available
-
Gasket Piaggio Group · 976592 Available · Shipped in 3–5 working days€ 7,49
6 O-Ring Available
-
O-Ring 12,42x1 mm Piaggio Group · 434947 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 0,99
7 Oil pipe Available
-
Oil Hose Piaggio Group · 874646 Available · Shipped in 3–5 working days€ 61,19
8 Washer Available
-
Washer 4,2x12x1 mm Piaggio Group · 013763 · Quantity needed: 3 Available · Shipped in 3–5 working days€ 0,99
9 Intake Manifold Backorder
-
Inlet pipe Piaggio Group · 874645 Backorder · Shipped in 2–4 weeks€ 88,68
10 O-Ring Available
-
O-Ring Piaggio Group · 969323 Available · Shipped in 3–5 working days€ 1,48
11 Intake oil filter Available
-
Oil Filter Piaggio Group · 874655 Available · Shipped in 3–5 working days€ 9,68
12 Screw Available
-
Screw Piaggio Group · 621914 · Quantity needed: 5 Available · Shipped in 3–5 working days€ 2,77
13 Reduction Available
-
Pin Piaggio Group · GU01161331 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 19,47
14 Oil feed pipe Backorder
-
Pipe Piaggio Group · 978896 Backorder · Shipped in 2–4 weeks€ 855,22
15 LH Nozzle Available
-
Jet, left Piaggio Group · 874240 Available · Shipped in 3–5 working days€ 92,59
16 Pressure sensor Available
-
978854 Pressure sensorOil pressure switch Piaggio Group · 1A024308R ↻ Replaces 978854, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 18,17
17 RH Nozzle Available
-
Jet, right Piaggio Group · 874239 Available · Shipped in 3–5 working days€ 92,59
18 O-Ring Available
-
Screw Piaggio Group · 874238 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 16,53
19 Copper gasket Available
-
Copper Flange Gasket Piaggio Group · 976597 · Quantity needed: 6 Available · Shipped in 3–5 working days€ 5,12
20 Pipe Backorder
-
Radiator pipe Piaggio Group · 976625 Backorder · Shipped in 2–4 weeks€ 618,88
21 O-ring Available
-
981114 O-ring Quantity needed: 4O-Ring Piaggio Group · 899064 ↻ Replaces 981114, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 5,83
22 Washer gasket (12,25) Available
-
Gasket Piaggio Group · GU12006400 Available · Shipped in 3–5 working days€ 2,26
