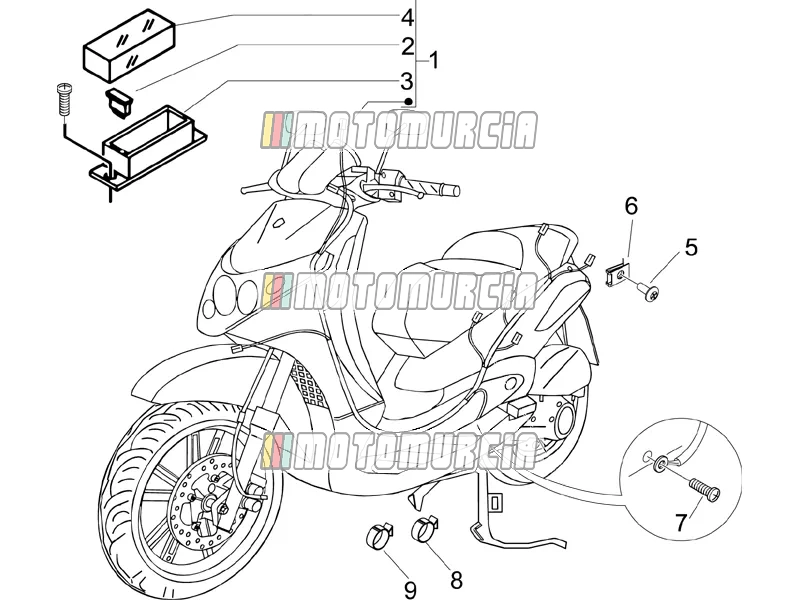

Exploded view — Main Cable Harness

Products

1 WIRING LOOM 639613 No longer available

• 639613 WIRING LOOM
  No longer available
• 638774 Main wiring harness
  No longer available

2 Fuse (7,5A) Available 252945

• • Country: Australia
  • Country: Europe
  • Country: Indonesia-Malaysia-New Zealand-Singapore


  Fuse 7,5 A Piaggio Group · 252945 Available · Shipped in 3–5 working days

  € 2,86

  Add to cart
• • Country: Australia
  • Country: Europe
  • Country: Indonesia-Malaysia-New Zealand-Singapore


  Fuse 15 A Piaggio Group · 290860 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 2,86

  Add to cart
•

  Fuse 10 A Piaggio Group · 292507 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,86

  Add to cart
•

  Fuse 4 A Piaggio Group · 291499 · Quantity needed: 4 Backorder · Shipped in 2–4 weeks

  € 2,23

  Add to cart

3 Fuse holder Available 581190

•

  Fuse Box Piaggio Group · 581190 Available · Shipped in 3–5 working days

  € 16,18

  Add to cart

4 Plug Available 581191

•

  Lid Piaggio Group · 581191 Available · Shipped in 3–5 working days

  € 8,78

  Add to cart

5 Screw Available 259349

•

  Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

6 Clip nuts Available CM017409

•

  Sheet nut Piaggio Group · CM017409 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

7 Screw Available 270793

• • No ABS


  Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

8 Non return spring L=12 Available CM006905

•

  Clamp length: 12mm Piaggio Group · CM006905 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 5,09

  Add to cart

9 Non return spring L=33 Available CM006906

•

  Clamp length: 33mm Piaggio Group · CM006906 Available · Shipped in 3–5 working days

  € 5,01

  Add to cart
