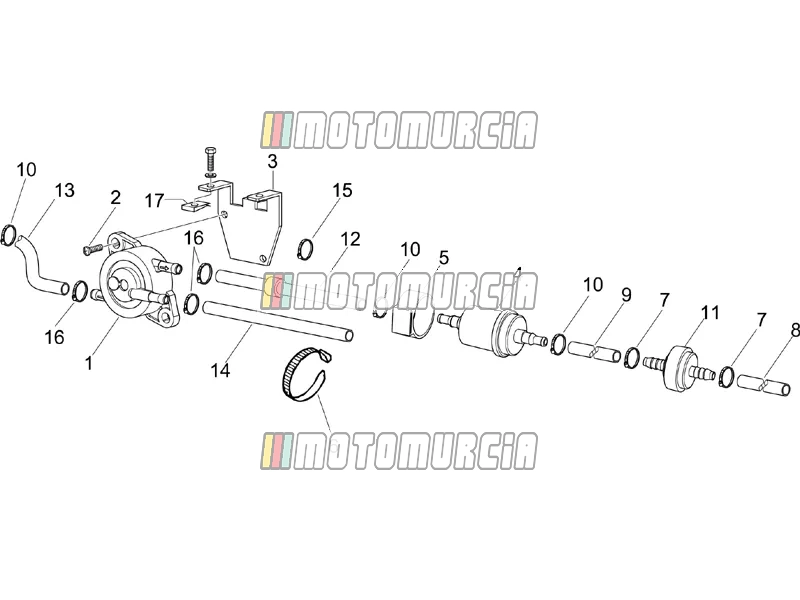

Exploded view — Supply System

‹ Back to model
Piaggio Beverly 125 2005 Piaggio Beverly 125 2005
Supply System

Products

1 Fuel pump Available CM120903
  • Petrol Pump Piaggio Group · CM120903 Available
    € 64,92
2 Screw Available 272836
  • Screw M6x16 Piaggio Group · 272836 · Quantity needed: 2 Available
    € 1,39
3 Fuel pump bracket 620066 No longer available
  • 620066 Fuel pump bracket
    No longer available
4 Fuel filter Available 270423
  • Petrol Filter Piaggio Group · 270423 Available
    € 9,96
5 Flexible support Available 272842
6 Hose clamp Available 257134
7 Clamp (D=10 mm) Available CM002905
  • Clamp Piaggio Group · CM002905 · Quantity needed: 2 Available
    € 0,99
8 Pipe 4x9x350 Available CM006116
9 Breather pipe Available 1R000160
10 Clamp Available CM002907
  • Hose Clamp Piaggio Group · CM002907 · Quantity needed: 3 Available
    € 1,48
11 Anti-return valve Available AP8104594
  • Valve Piaggio Group · AP8104594 Available
    € 70,58
13 Breather pipe Available 1R000160
14 Tank breather pipe Ø5x10 L.1060 (L=1060) Available CM001432
15 Non return spring l=27 Available CM006904
16 Lock-strap L=180mm Available 145298
17 Clip nuts (M6) Available 254485
  • Sheet nut Piaggio Group · 254485 Available
    € 2,04

More drawings of this model

View all →
