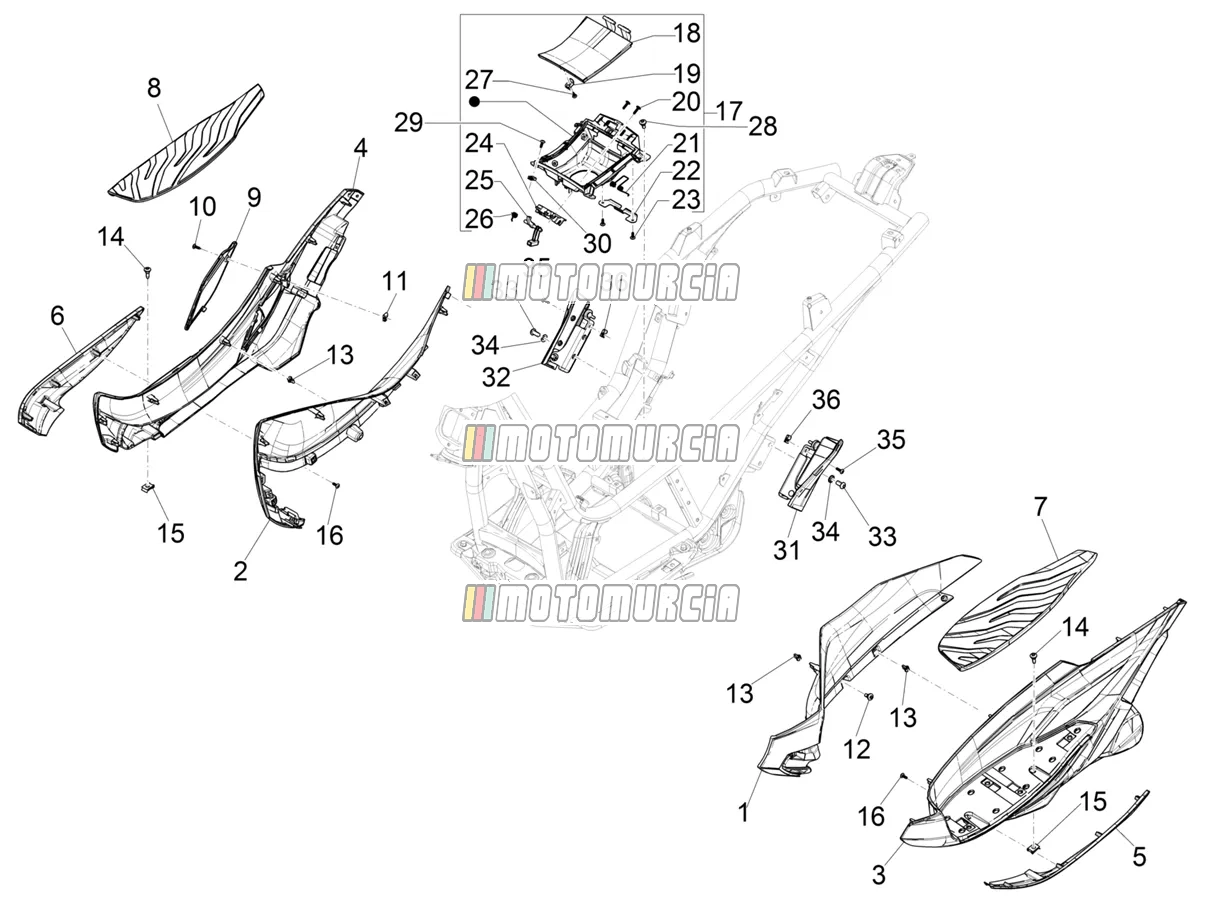

Exploded view — Central Cover - Footrests

‹ Back to model
Piaggio Beverly 400 ABS (USA) 2021 Piaggio Beverly 400 ABS (USA) 2021
Central Cover - Footrests

Products

1 Left side tunnel Available 1B007060000N13
2 Right side tunnel Available 1B007061000N13
3 Rubber mat l.h. Available 1B0070170000C
4 Rubber mat r.h. Available 1B0070180000C
5 LH spoiler Backorder 1B007039
6 Right spoiler Available 1B007040
7 Lh mat Available 1B007027
8 Rh mat 1B007028 No longer available
  • 1B007028 Rh mat
    No longer available
9 Spark plug access flap Available 1B0070430000C
  • Hatch Piaggio Group · 1B0070430000C Available
    € 23,24
10 Screw (4.2 x 16) Available CM178601
11 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 Available
    € 0,99
12 Screw Available CM179202
  • Screw Piaggio Group · CM179202 · Quantity needed: 2 Available
    € 1,48
13 Clip nuts Available D9004468091
  • Clamp Piaggio Group · D9004468091 · Quantity needed: 8 Available
    € 5,15
14 Screw Available CM179201
  • Screw M6x22 Piaggio Group · CM179201 · Quantity needed: 4 Available
    € 0,99
15 Clip nuts (M6) Available 254485
  • Sheet nut Piaggio Group · 254485 · Quantity needed: 4 Available
    € 2,04
16 Screw Available CM178603
  • Sheet Metal Screw Piaggio Group · CM178603 · Quantity needed: 8 Available
    € 2,18
17 Complete central cover Backorder 1B0084880000C
  • Cover Piaggio Group · 1B0084880000C Backorder
    € 52,93
18 Tank flap Available 1B0070590000C
  • Hatch Piaggio Group · 1B0070590000C Available
    € 19,30
19 Square Available AP8161182
  • Sheet nut Piaggio Group · AP8161182 Available
    € 16,70
20 Screw (4x16) Available CM180701
21 Spring Available 621507
  • Spring Piaggio Group · 621507 Available
    € 8,55
22 Flap fixing plate Available 672120
  • Bracket Piaggio Group · 672120 Available
    € 8,08
23 Screw (4.2 x 16) Available CM178601
24 Maintenance Available 620491
25 Cam lever Available 576626
  • Hooks Piaggio Group · 576626 Available
    € 2,44
26 Spring Available 575604
  • Spring Piaggio Group · 575604 Available
    € 3,27
27 Screw Available 297498
28 Screw Available CM179202
  • Screw Piaggio Group · CM179202 · Quantity needed: 2 Available
    € 1,48
29 Screw Available CM178603
  • Sheet Metal Screw Piaggio Group · CM178603 · Quantity needed: 4 Available
    € 2,18
30 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 · Quantity needed: 4 Available
    € 0,99
31 Complete left footrest Available 1B007006000N13
  • Footrest left Piaggio Group · 1B007006000N13 Available
    € 114,03
32 Complete right footrest Available 1B007005000N13
  • Footrest right Piaggio Group · 1B007005000N13 Available
    € 114,03
33 Screw Available 1B008127
  • Torx screw Piaggio Group · 1B008127 · Quantity needed: 4 Available
    € 1,61
34 Washer Available 834187
35 Screw Available CM178606
  • Sheet Metal Screw Piaggio Group · CM178606 · Quantity needed: 2 Available
    € 10,19
36 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 · Quantity needed: 2 Available
    € 0,99
