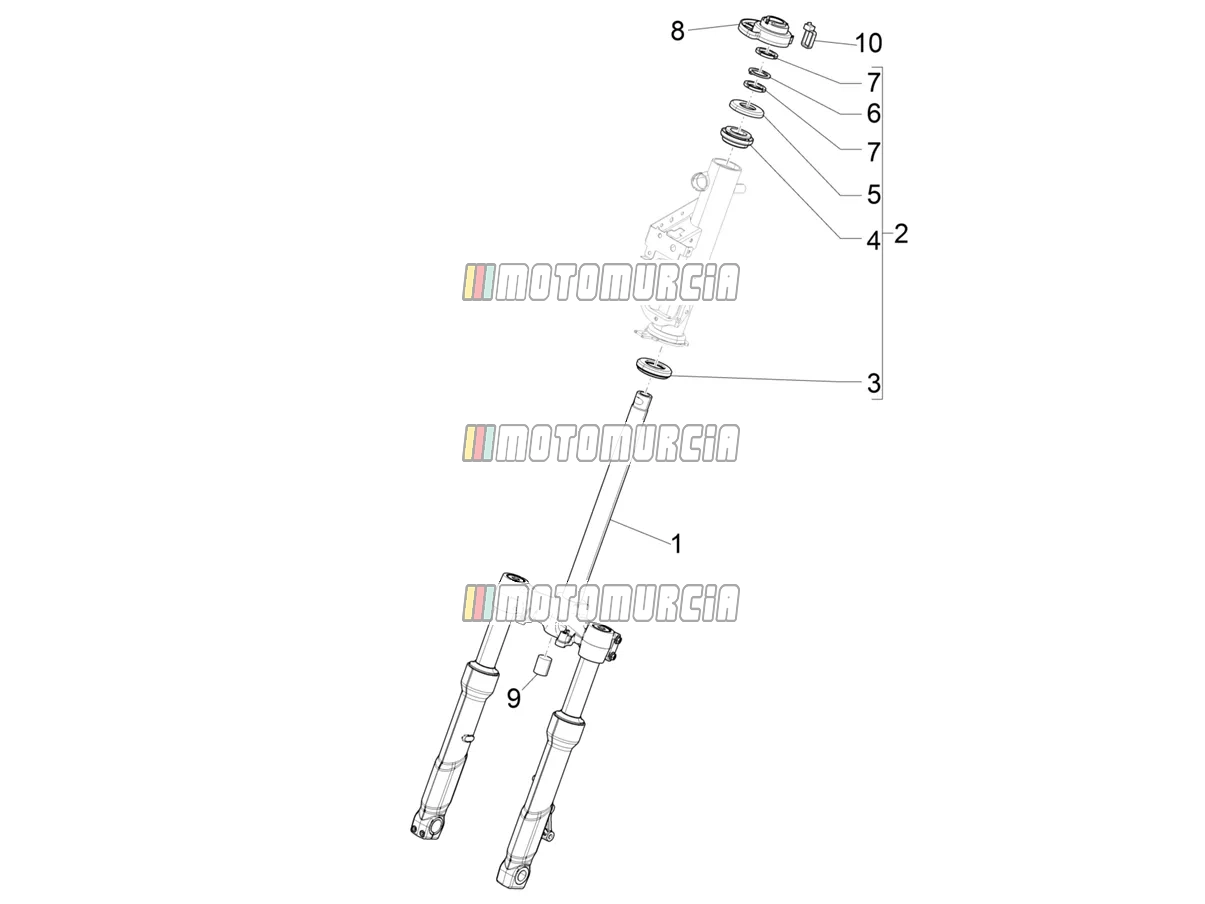

Exploded view — Fork/steering Tube - Steering Bearing Unit

‹ Back to model

Piaggio Beverly 400 ABS (USA) 2021

Piaggio Beverly 400 ABS (USA) 2021

Fork/steering Tube - Steering Bearing Unit

Products

1 Front fork assembly Available 1C004872

Fork Piaggio Group · 1C004872 Available

€ 595,40

2 Steering bearing kit Available 6008726

Steering bearing kit Piaggio Group · 6008726 Available

€ 72,12

3 Steering bearing (LOWER) Available 65007545

Steering bearing kit bottom Piaggio Group · 65007545 Available

€ 31,01

4 Steering bearing (UPPER) Available 60075045

Steering head bearing Piaggio Group · 60075045 Available

€ 21,26

5 Cup Available 600753

Dust guard Piaggio Group · 600753 Available

€ 8,68

6 Guard washer Available 582787

Tab Washer Piaggio Group · 582787 Available

€ 2,27

7 Steering tube ring nut Available 0111094

Threaded ring Piaggio Group · 0111094 · Quantity needed: 2 Available

€ 13,31

8 Protection collar Backorder 1C005772

Protection piece Piaggio Group · 1C005772 Backorder

€ 6,55

9 Plug Available 601026

Lock Piaggio Group · 601026 Available

€ 7,64

10 Lock-strap L=180mm Available 145298

Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available

€ 1,43
