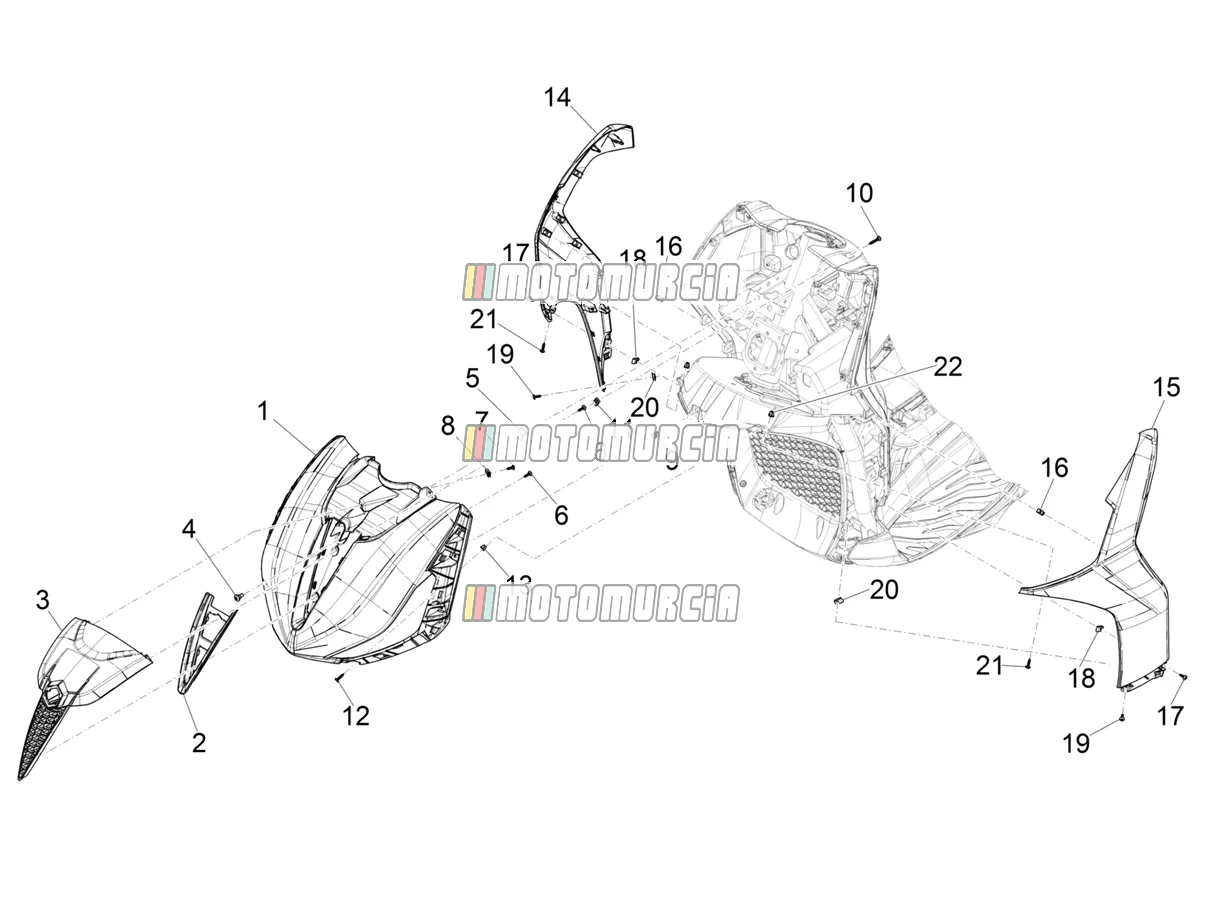

Exploded view — Front Shield

‹ Back to model
Piaggio Beverly 400 ABS (USA) 2021 Piaggio Beverly 400 ABS (USA) 2021
Front Shield

Products

1 Shield Available 1B007007000A12
2 Front rim Available 1B007063000G08
  • Frame, for cascade Piaggio Group · 1B007063000G08 Available · Shipped in 3–5 working days
    € 63,92
  • Frame, for cascade Piaggio Group · 1B007063 Available · Shipped in 3–5 working days
    € 51,17
3 Steering cover Available 1B0070240000C
  • Cascade Piaggio Group · 1B0070240000C Available · Shipped in 3–5 working days
    € 48,40
4 Screw Available CM179202
    • Enjoy 2015
    Screw Piaggio Group · CM179202 Available · Shipped in 3–5 working days
    € 1,48
5 Clip nuts (M6) Available 254485
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days
    € 2,04
6 Screw (4x16) Available CM180701
  • Sheet Metal Screw 4x16 mm Piaggio Group · CM180701 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
7 Screw Available CM178603
  • Sheet Metal Screw Piaggio Group · CM178603 Available · Shipped in 3–5 working days
    € 2,18
8 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 Available · Shipped in 3–5 working days
    € 0,99
9 Clip nuts Available D9004468091
  • Clamp Piaggio Group · D9004468091 Available · Shipped in 3–5 working days
    € 5,15
10 Screw (4,2x29) Available CM178608
11 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
12 Screw Available CM178604
    • ABS version
    • Touring ABS version
    Sheet Metal Screw length: 18mm Piaggio Group · CM178604 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,45
13 Expansion plug Available 199190
14 Right side shield closure Available 1B007015000N12
15 Left side shield closure Available 1B007014000N12
16 Clip nuts Available D9004468091
  • Clamp Piaggio Group · D9004468091 · Quantity needed: 14 Available · Shipped in 3–5 working days
    € 5,15
17 Screw (4.2 x 16) Available CM178601
  • Sheet Metal Screw 4,2x16 mm Piaggio Group · CM178601 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,45
18 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
19 Screw Available CM178603
  • Sheet Metal Screw Piaggio Group · CM178603 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 2,18
20 Clip nuts Available CM017410
  • Sheet nut Piaggio Group · CM017410 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 0,99
21 Screw Available CM178604
    • ABS version
    • Touring ABS version
    Sheet Metal Screw length: 18mm Piaggio Group · CM178604 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,45
22 Expansion plug Available 199190
