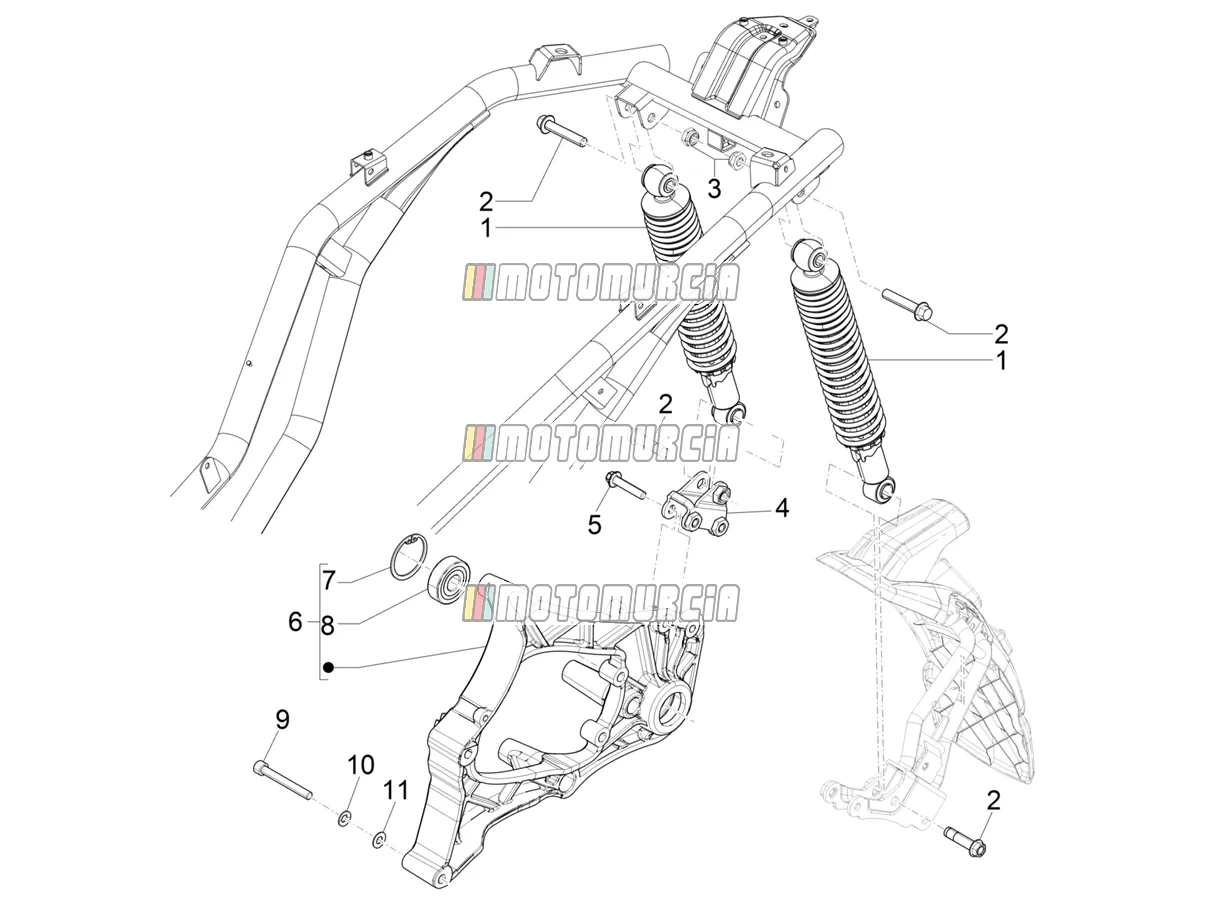

Exploded view — Rear Suspension - Shock Absorber/s

Products

1 Complete rear shock absorber Available 1C004922

•

  Shocks rear Piaggio Group · 1C004922 · Quantity needed: 2 Available

  € 138,25

  Add to cart

2 Screw Backorder 1C005309

•

  Hexagon Screw Piaggio Group · 1C005309 · Quantity needed: 4 Backorder

  € 2,15

  Add to cart

3 Nut Available 020110

•

  Standard nut Piaggio Group · 020110 · Quantity needed: 2 Available

  € 1,79

  Add to cart

4 Right rear shock absorber connection bracket Backorder 1C005744

•

  Bracket Piaggio Group · 1C005744 Backorder

  € 40,38

  Add to cart

5 Hex socket screw M8x40 Available 1C003715

•

  Screw M8x40 Piaggio Group · 1C003715 · Quantity needed: 2 Available

  € 1,02

  Add to cart

6 Complete right suspension arm Available 1A017375

•

  Swingarm Piaggio Group · 1A017375 Available

  € 289,75

  Add to cart

7 Seeger Available 006647

•

  Circlip Ø 47,00 mm Piaggio Group · 006647 Available

  € 1,29

  Add to cart

8 Bearing Available 82545R

•

  Radial bearing BB1-0683, 17x47x14 mm Piaggio Group · 82545R Available

  € 24,85

  Add to cart

9 Screw Available 845590

•

  Screw M8x65 Piaggio Group · 845590 · Quantity needed: 2 Available

  € 1,80

  Add to cart

10 Washer Available 834187

•

  Washer 16x8,2x2,2 mm Piaggio Group · 834187 · Quantity needed: 2 Available

  € 1,31

  Add to cart

11 Washer Backorder 1A007552

•

  Washer Piaggio Group · 1A007552 · Quantity needed: 2 Backorder

  € 0,99

  Add to cart
