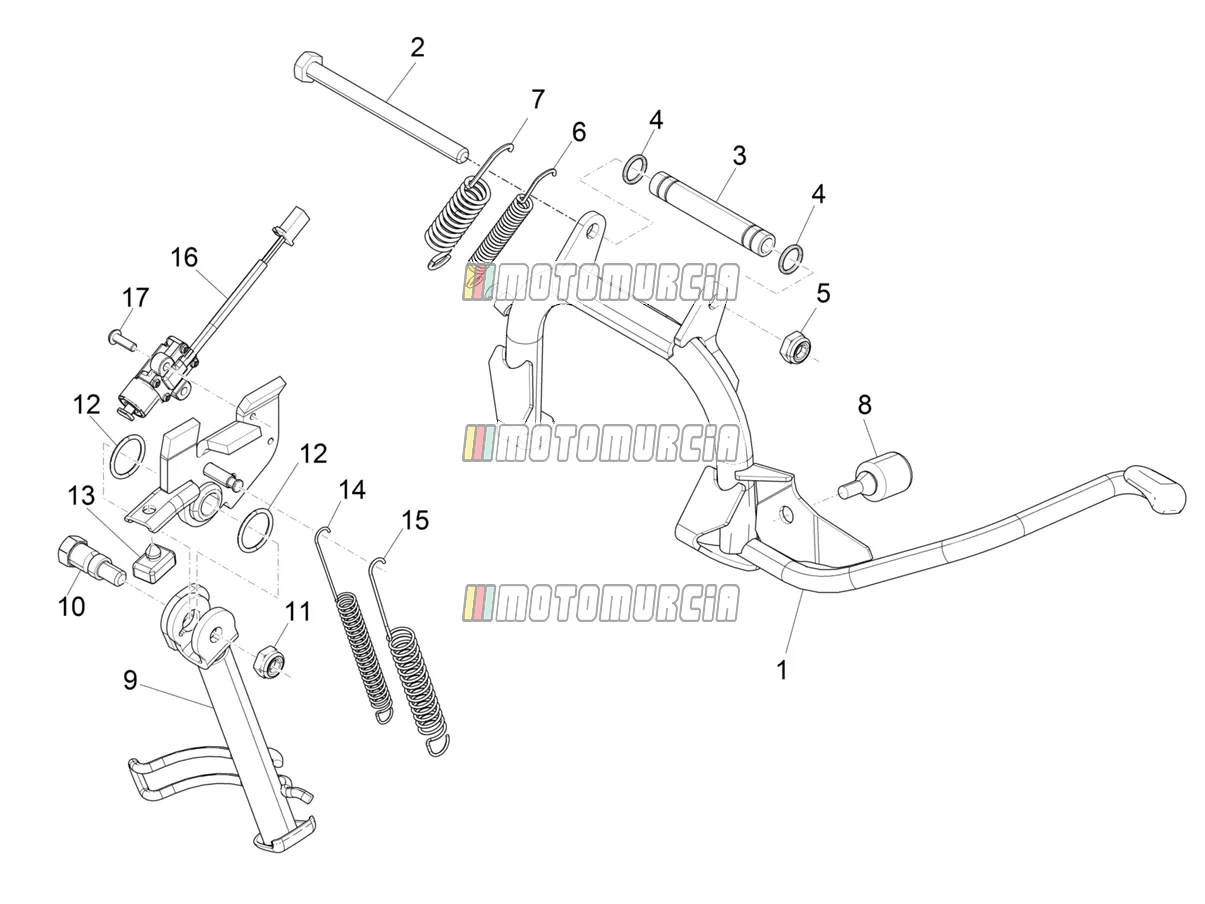

Exploded view — Stand/s

Products

1 Main Stand comp. Available 1C005876

•

  Centre stand Piaggio Group · 1C005876 Available

  € 83,10

  Add to cart

2 Screw Available 030115

•

  Hexagon Screw M10x130 Piaggio Group · 030115 Available

  € 4,09

  Add to cart

3 Spacer Available 582298

•

  Spacer Piaggio Group · 582298 Available

  € 16,90

  Add to cart

4 O-Ring Available 273754

•

  O-Ring Piaggio Group · 273754 · Quantity needed: 2 Available

  € 0,99

  Add to cart

5 Nut Available 002440

•

  Standard nut M10 Piaggio Group · 002440 Available

  € 1,11

  Add to cart

6 Spring Available 667566

•

  Spring for main stand Piaggio Group · 667566 Available

  € 8,08

  Add to cart

7 Spring Available 667567

•

  Spring for main stand Piaggio Group · 667567 Available

  € 8,08

  Add to cart

8 Rubber, stand stopper Available 1C002702

•

  Rubber stop Piaggio Group · 1C002702 Available

  € 2,83

  Add to cart

9 Side Stand with i.p. Available 1C005787

•

  Side Stand Piaggio Group · 1C005787 Available

  € 83,10

  Add to cart

10 Bolt stand Available 1C001480

•

  Screw Piaggio Group · 1C001480 Available

  € 6,05

  Add to cart

11 Nut Available 002440

•

  Standard nut M10 Piaggio Group · 002440 Available

  € 1,11

  Add to cart

12 Gasket Available 191189

•

  Oil seal Piaggio Group · 191189 · Quantity needed: 2 Available

  € 0,99

  Add to cart

13 Rubber, stand stopper Available 582885

•

  Buffer Piaggio Group · 582885 Available

  € 4,43

  Add to cart

14 Spring Available 295788

•

  Spring for side stand Piaggio Group · 295788 Available

  € 7,91

  Add to cart

15 Spring Available 295789

•

  Spring for side stand Piaggio Group · 295789 Available

  € 7,91

  Add to cart

16 Switch, side stand Available 642559

•

  Side stand switch Piaggio Group · 642559 Available

  € 57,66

  Add to cart

17 Covex head screw with torx Available 1C005394

•

  Torx screw Piaggio Group · 1C005394 · Quantity needed: 2 Available

  € 1,02

  Add to cart
