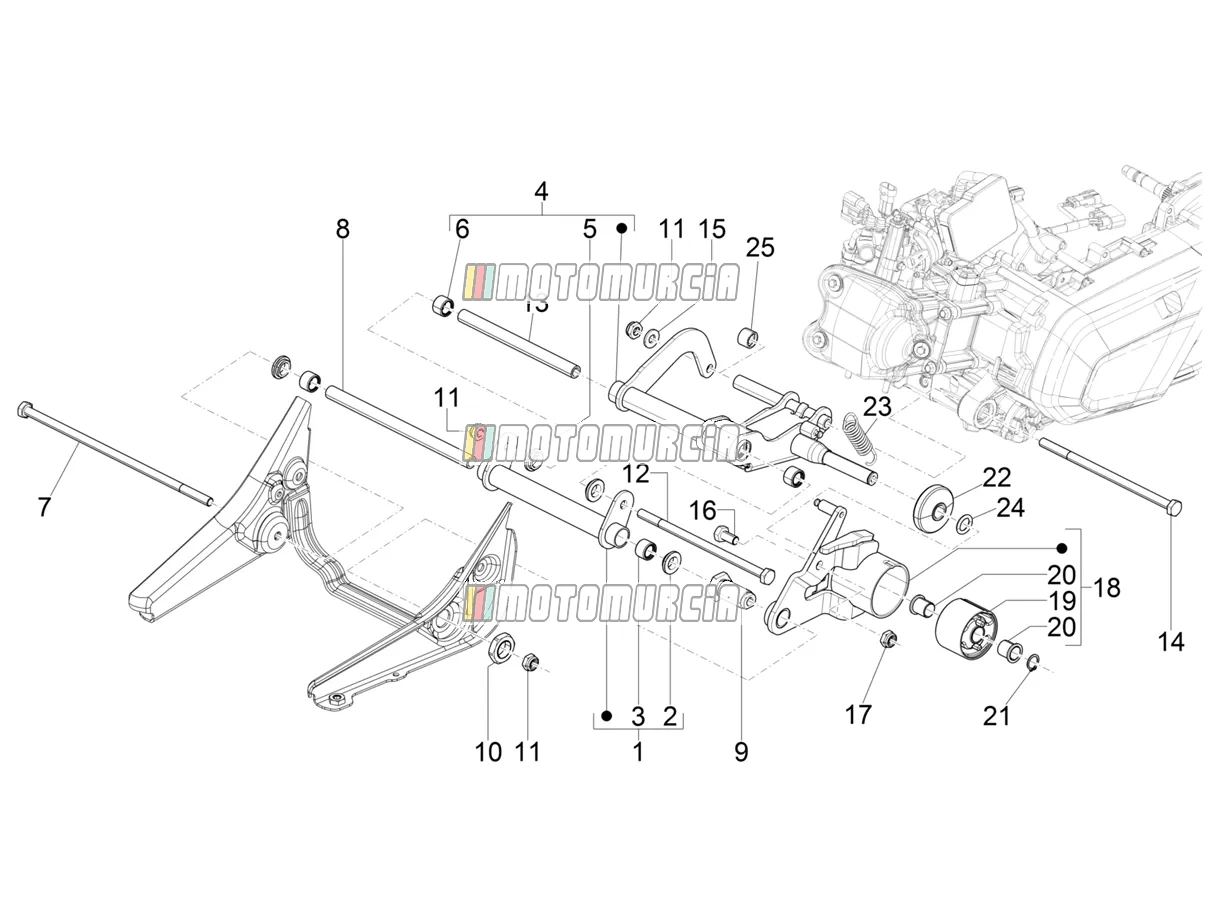

Exploded view — Swinging Arm
‹ Back to model
Piaggio Beverly 400 ABS (USA) 2021
Products
1 Chassis side swinging arm Available
-
Swingarm Piaggio Group · 1C000001R5 Available€ 37,87
2 Bush Available
-
Sleeve Piaggio Group · 597317 · Quantity needed: 2 Available€ 2,15
3 Needle bearing Available
-
Needle bearing HK 15/14 RS, 14x15x21 mm Piaggio Group · 56127R · Quantity needed: 2 Available€ 10,13
4 Complete swinging arm on engine side Available
-
Swingarm Piaggio Group · 1C001297R5 Available€ 369,67
5 Bush Available
-
Sleeve Piaggio Group · 597317 · Quantity needed: 2 Available€ 2,15
6 Needle bearing Available
-
Needle bearing HK 15/14 RS, 14x15x21 mm Piaggio Group · 56127R · Quantity needed: 2 Available€ 10,13
7 Hex screw Available
-
Hexagon Screw Piaggio Group · 667441 Available€ 14,68
8 Spacer L=235.5 Available
-
Spacer length: 23,6cm Piaggio Group · CM067809 Available€ 15,62
9 Threaded bush Available
-
Sleeve Piaggio Group · 597774 Available€ 34,51
10 Nut Available
-
Standard nut Piaggio Group · 564611 Available€ 5,15
11 Nut Available
-
Standard nut M10 Piaggio Group · 002440 · Quantity needed: 3 Available€ 1,11
12 Hex screw M10x225 (M10x225) Available
-
Hexagon Screw M10x225 Piaggio Group · 667827 Available€ 13,31
13 Spacer L=198 Available
-
Spacer length: 19,8cm Piaggio Group · CM067807 Available€ 15,78
14 Hex screw M10x225 (M10x225) Available
-
Hexagon Screw M10x225 Piaggio Group · 667827 Available€ 13,31
15 Washer Available
-
Washer 22x10,3x2,5 mm Piaggio Group · 178790 Available€ 1,74
16 Screw Available
-
Screw Piaggio Group · 597893 Available€ 1,45
17 Nut Available
-
Standard nut M10 Piaggio Group · 002440 Available€ 1,11
18 Complete silent block support bracket Available
-
Bracket with silentbloc Piaggio Group · 666884 Available€ 237,45
19 Silentblock - engine mount Available
-
Silentblock Piaggio Group · 272750 Available€ 48,19
20 Bush Available
-
Sleeve Piaggio Group · 273460 · Quantity needed: 2 Available€ 1,29
21 Seeger Available
-
Locking Ring Piaggio Group · 006416 Available€ 1,65
22 Silent-block Available
-
Anti-Vibration Mount Piaggio Group · 599250 Available€ 16,49
23 Spring Available
-
Spring Piaggio Group · 597490 Available€ 7,94
24 O-Ring Available
-
O-Ring Piaggio Group · 830434 Available€ 2,86
25 Swinging arm spacer Available
-
Spacer Piaggio Group · 657451 Available€ 8,68
