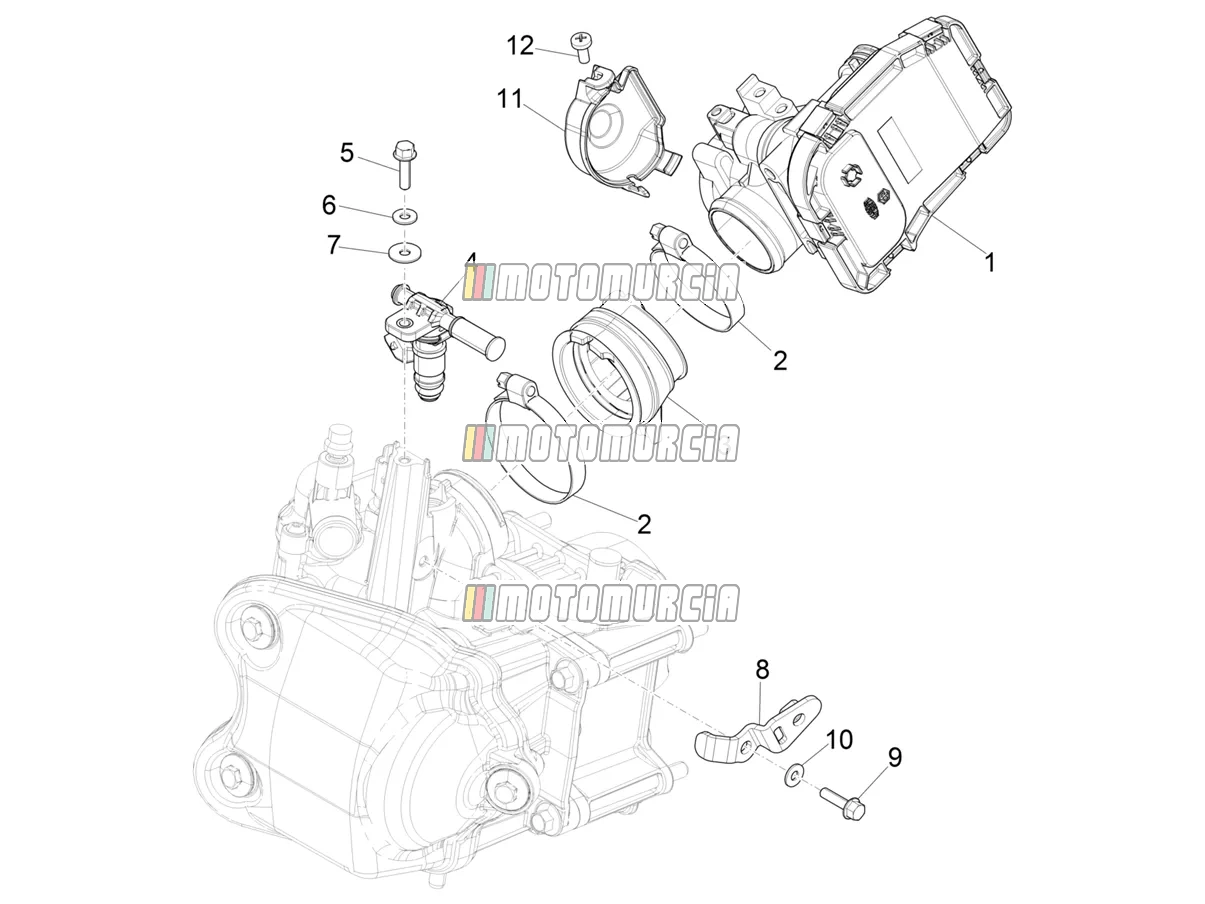

Exploded view — Throttle Body - Injector - Induction Joint

Products

1 Throttle body with E.C.U. CM30170145 No longer available

• CM30170145 Throttle body with E.C.U.
  No longer available

2 Clamp Available 614188

•

  HOSE CLAMP Piaggio Group · 614188 · Quantity needed: 2 Available

  € 5,74

  Add to cart

3 Throttle body hose Available 1A013244

•

  Sleeve Piaggio Group · 1A013244 Available

  € 15,56

  Add to cart

4 Injector complete with connection Available 1A0180215

•

  Injection jet Piaggio Group · 1A0180215 Available

  € 135,24

  Add to cart

5 Screw Backorder 1A007502

•

  Flanged Screw Piaggio Group · 1A007502 Backorder

  € 2,04

  Add to cart

6 Washer Available 828583

•

  Shim 5x12x1,1 mm Piaggio Group · 828583 Available

  € 0,99

  Add to cart

7 Washer Available 013754

•

  Washer Piaggio Group · 013754 Available

  € 0,99

  Add to cart

8 Fuel pipe support bracket Backorder 1B005686

•

  Bracket Piaggio Group · 1B005686 Backorder

  € 5,31

  Add to cart

9 Screw Backorder 1A007502

•

  Flanged Screw Piaggio Group · 1A007502 Backorder

  € 2,04

  Add to cart

10 Washer Available 828583

•

  Shim 5x12x1,1 mm Piaggio Group · 828583 Available

  € 0,99

  Add to cart

11 Pulley protection cover Available B014403

•

  Lid Piaggio Group · B014403 Available

  € 14,99

  Add to cart

12 Screw Available 015585

•

  Thread Screw M5x12 Piaggio Group · 015585 Available

  € 1,39

  Add to cart
