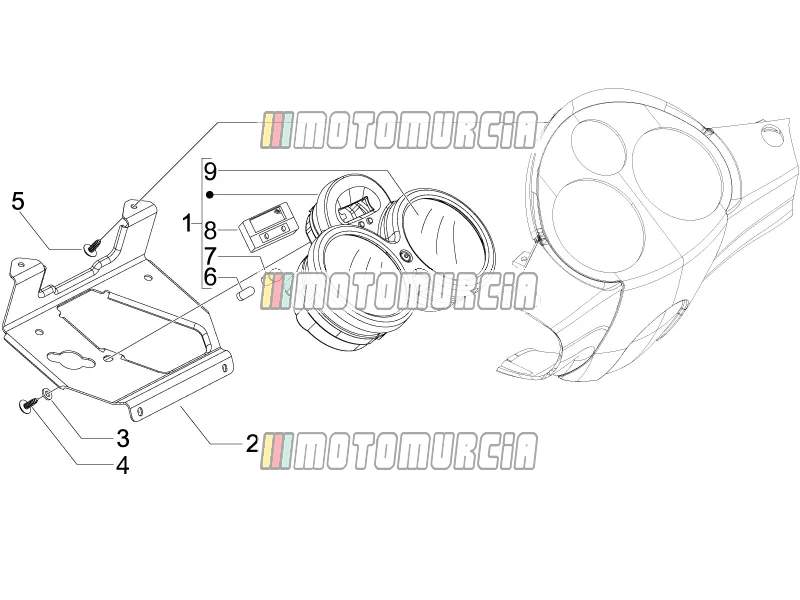

Exploded view — Meter Combination - Cruscotto

‹ Back to model

Piaggio Carnaby 200 2007

Piaggio Carnaby 200 2007

Meter Combination - Cruscotto

Products

1 Dashboard Available 640463

Instrument Cluster Piaggio Group · 640463 Available

€ 218,28

2 Support plate Backorder 653202

Bracket Piaggio Group · 653202 Backorder

€ 14,87

3 Washer Available 006965

Washer Piaggio Group · 006965 · Quantity needed: 3 Available

€ 0,99

4 Screw Available 1A003111

Screw M5x10 Piaggio Group · 1A003111 · Quantity needed: 3 Available

€ 3,06

5 Screw Available 270793

Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 4 Available

€ 0,99

6 Bulb (1,2W) Available 164634

Bulbs Bulb, 12 V, 1,2 W Piaggio Group · 164634 · Quantity needed: 8 Available

€ 1,85

7 Bulb (1,2W) Available 164634

Bulbs Bulb, 12 V, 1,2 W Piaggio Group · 164634 · Quantity needed: 3 Available

€ 1,85

8 Orologio (Pricol) Available 640469

Clock Piaggio Group · 640469 Available

€ 49,67
