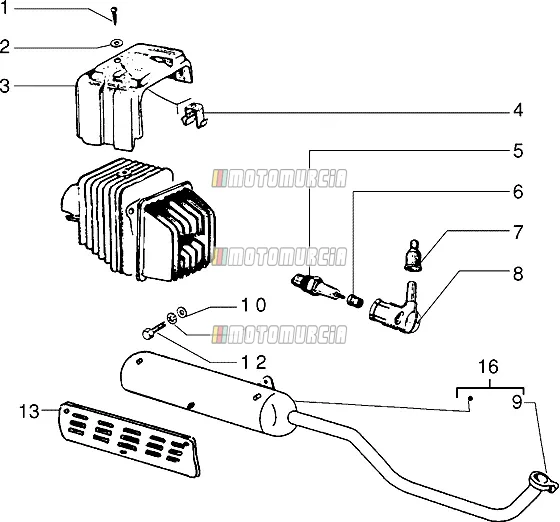

Exploded view — Exhaust System

Products

1 Screw Available 008455

•

  Screw Piaggio Group · 008455 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

2 Washer Available 013963

•

  Washer Piaggio Group · 013963 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

3 Deflector 289874 No longer available

• 289874 Deflector
  No longer available

4 Staple 139122 No longer available

• 139122 Staple
  No longer available

5 Spark plug Available 0987535

• 0987535 Spark plug


  Spark Plugs P82M/L82C Piaggio Group · 438070 ↻ Replaces 0987535, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 5,75

  Add to cart

6 Fairlead 114164 No longer available

• 114164 Fairlead
  No longer available

7 Screened cap Available 825187

• 825187 Screened cap


  Spark Plug Connector Piaggio Group · 825186 ↻ Replaces 825187, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 29,05

  Add to cart

8 Spark plug cap Backorder 103936

•

  Spark Plug Connector Piaggio Group · 103936 Backorder · Shipped in 2–4 weeks

  € 10,59

  Add to cart
• 2559835 Screened cap


  Spark Plug Connector Piaggio Group · 1D000275 ↻ Replaces 2559835, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks

  € 48,05

  Add to cart

9 Clamp 130969 No longer available

• 130969 Clamp
  No longer available

10 Washer Available 003058

•

  Washer 15x8,4x1,5 mm Piaggio Group · 003058 Available · Shipped in 3–5 working days

  € 1,84

  Add to cart

11 Washer Available 012540

•

  Washer 14x8,3x1,8 mm Piaggio Group · 012540 Available · Shipped in 3–5 working days

  € 1,21

  Add to cart

12 Bolt Available 031115

• 031115 Bolt


  Screw Piaggio Group · 598920 ↻ Replaces 031115, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 2,27

  Add to cart

13 Guard 479437 No longer available

• 479437 Guard
  No longer available

14 Gasket 256758 No longer available

• 256758 Gasket Quantity needed: 3
  No longer available

15 Screw 259213 No longer available

• 259213 Screw Quantity needed: 3
  No longer available

16 Muffler, assy. 478065 No longer available

• 478065 Muffler, assy.
  No longer available
• 478209 Muffler, assy.
  No longer available
