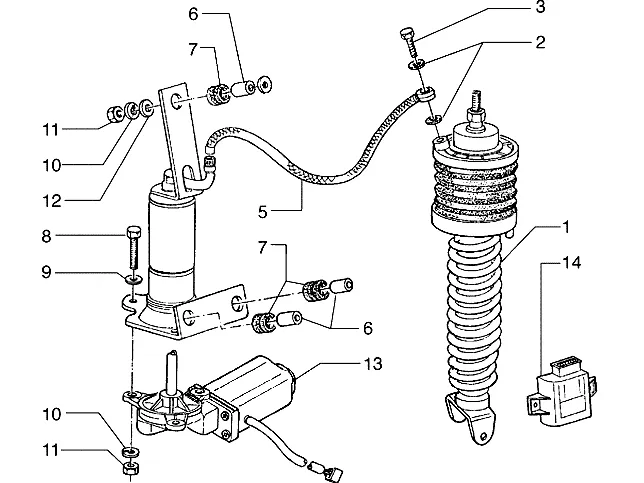

Exploded view — Automatically Adjustable Rear Damper

Products

1 Shock absorber 272909 No longer available

• 272909 Shock absorber
  No longer available

2 Washer gasket Available 127927

•

  Copper Flange Gasket 10x16x1 mm Piaggio Group · 127927 · Quantity needed: 2 Available

  € 1,31

  Add to cart

3 Oil pipe screw M10x18 Available 265451

•

  Hollow screw M10x18 Piaggio Group · 265451 Available

  € 4,91

  Add to cart

4 Tank 272982 No longer available

• 272982 Tank
  No longer available

5 Piping 272981 No longer available

• 272981 Piping
  No longer available

6 Spacer 273370 No longer available

• 273370 Spacer Quantity needed: 2
  No longer available

7 Upper rubber Available 351782

•

  Buffer Piaggio Group · 351782 · Quantity needed: 2 Available

  € 2,67

  Add to cart

8 Disc 030038 No longer available

• 030038 Disc Quantity needed: 3
  No longer available

9 Washer 078193 No longer available

• 078193 Washer Quantity needed: 3
  No longer available

10 Washer (spring) Available 016405

•

  Spring Washer Piaggio Group · 016405 · Quantity needed: 6 Available

  € 1,84

  Add to cart

11 Nut Available 020105

•

  Standard nut Piaggio Group · 020105 · Quantity needed: 6 Available

  € 1,88

  Add to cart

12 Washer Available 004021

•

  Washer Piaggio Group · 004021 · Quantity needed: 6 Available

  € 1,26

  Add to cart

13 Electrical motor 272983 No longer available

• 272983 Electrical motor
  No longer available

14 Fuel level gauge 292186 No longer available

• 292186 Fuel level gauge
  No longer available

15 Kit. rev. shock absorber. 498857 No longer available

• 498857 Kit. rev. shock absorber.
  No longer available

16 Multiplier 273346 No longer available

• 273346 Multiplier
  No longer available
