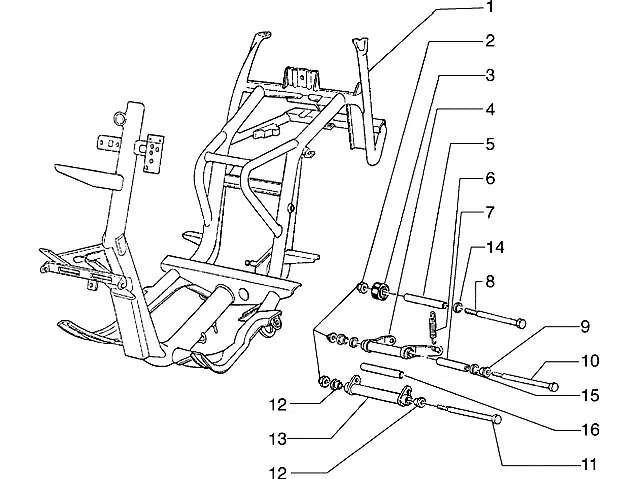

Exploded view — Chassis-swingingarm-side Stand

Products

1 Frame 2700515 No longer available

• 2700515 Frame
  No longer available
• 560103 Frame
  No longer available

2 Nut Available 002440

•

  Standard nut M10 Piaggio Group · 002440 Available

  € 1,11

  Add to cart

3 Silentblock - engine mount Available 2727785

•

  Silentblock Piaggio Group · 2727785 Available

  € 76,81

  Add to cart

4 Swinging arm 563929 No longer available

• 563929 Swinging arm
  No longer available

5 Spacer 271395 No longer available

• 271395 Spacer
  No longer available

6 Spring 272329 No longer available

• 272329 Spring
  No longer available

7 Spacer Available 273765

•

  Spacer length: 18,3cm, Ø 15,80 mm Piaggio Group · 273765 Available

  € 24,77

  Add to cart
• 274346 Main Stand comp.
  No longer available

8 Screw Available 271779

•

  Hexagon Screw M10x215 Piaggio Group · 271779 Available

  € 17,33

  Add to cart

9 Bush Available 273773

•

  Synthetic Bush Piaggio Group · 273773 · Quantity needed: 2 Available

  € 4,94

  Add to cart

10 Screw Available 271807

•

  Hexagon Screw M10x202 Piaggio Group · 271807 Available

  € 11,82

  Add to cart

11 Screw Available 563977

•

  Hexagon Screw M10x245 Piaggio Group · 563977 Available

  € 17,33

  Add to cart

13 Swinging arm 273766 No longer available

• 273766 Swinging arm
  No longer available

14 Seeger Available 006416

•

  Locking Ring Piaggio Group · 006416 Available

  € 1,65

  Add to cart

15 O-Ring Backorder 273774

•

  Oil seal Piaggio Group · 273774 · Quantity needed: 2 Backorder

  € 1,26

  Add to cart

16 Spacer Available CM067802

•

  Spacer length: 21,5cm, Ø 15,00 mm Piaggio Group · CM067802 Available

  € 27,07

  Add to cart
