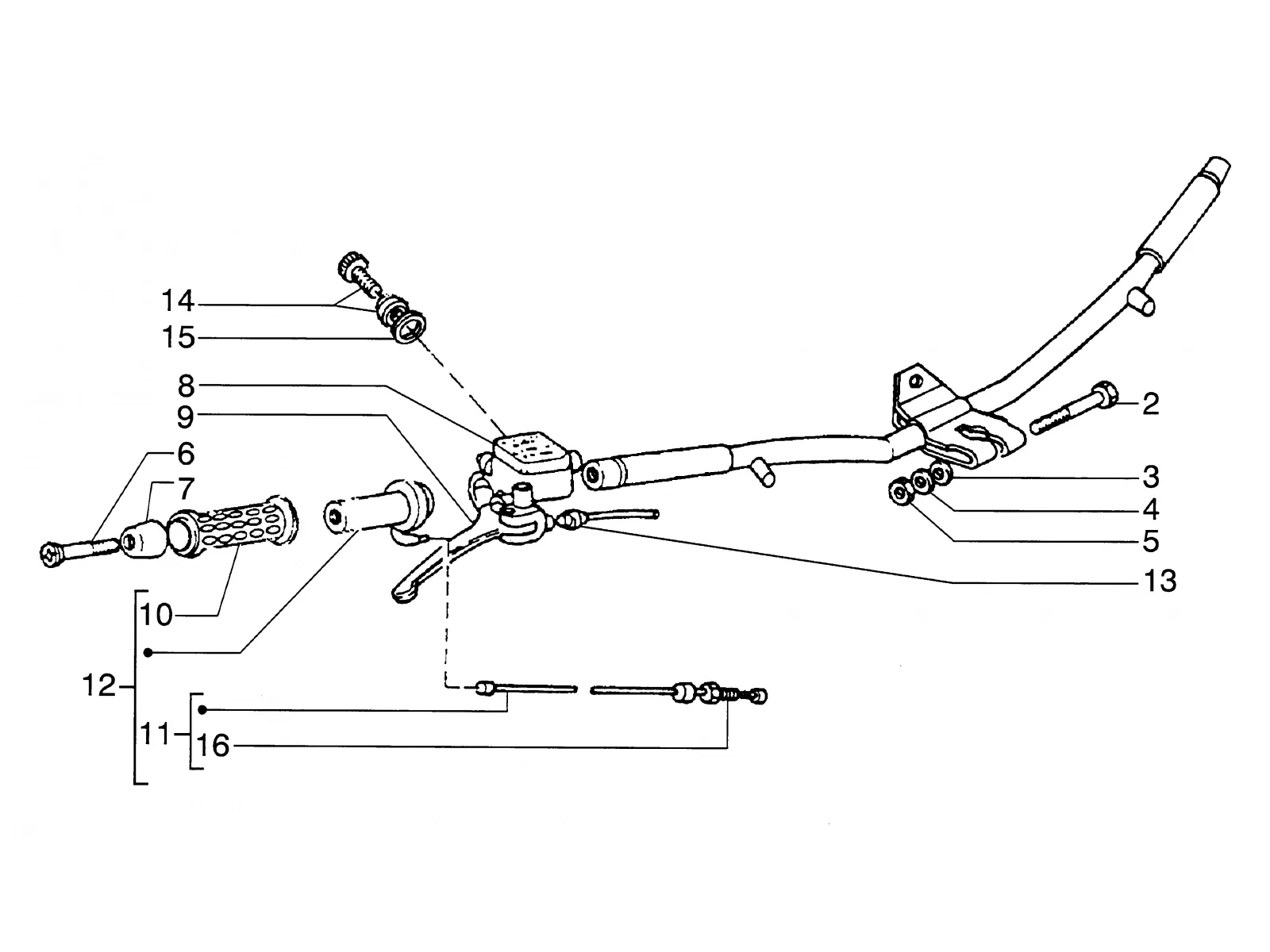

Exploded view — Electrical Systems

Products

1 Handlebar Available 5816064

•

  Handlebar Piaggio Group · 5816064 Available

  € 74,71

  Add to cart

2 Screw Available 655554

•

  Screw M10x65 Piaggio Group · 655554 Available

  € 2,27

  Add to cart

3 Washer Available 178790

•

  Washer 22x10,3x2,5 mm Piaggio Group · 178790 Available

  € 1,74

  Add to cart

4 Washer Available 012535

•

  Washer Piaggio Group · 012535 Available

  € 1,52

  Add to cart

5 Nut Available 015330

•

  Standard nut Piaggio Group · 015330 Available

  € 3,84

  Add to cart

6 Screw Available 1B006376

•

  Torx screw length: 55,0cm, black Piaggio Group · 1B006376 · Quantity needed: 2 Available

  € 1,61

  Add to cart

7 Handlebar weight Available 271433

•

  Handlebar end weights chrome Piaggio Group · 271433 · Quantity needed: 2 Available

  € 25,69

  Add to cart

8 Front brake lever hydraulic pump GRIMECA CM063601 No longer available

• CM063601 Front brake lever hydraulic pump GRIMECA
  No longer available
• CM060603 MASTER CYLINDER RUNNER
  No longer available

9 Brake lever 494952 No longer available

• 494952 Brake lever
  No longer available

10 Grip Right Available 271453

•

  Rubber Grip Ø 24,00 mm, right Piaggio Group · 271453 Available

  € 12,49

  Add to cart

11 GAS CONTR. TRANSM. CM065905 No longer available

• CM065905 GAS CONTR. TRANSM.
  No longer available

12 SLEEVE 564077 No longer available

• 564077 SLEEVE
  No longer available

13 Brake light switch Available 580953

•

  Stop light switch Piaggio Group · 580953 Available

  € 9,04

  Add to cart

14 Screw Available 123394

•

  Screw Piaggio Group · 123394 Available

  € 2,86

  Add to cart

15 Ring 38,3x27x1,2 Available 562923

•

  Washer Piaggio Group · 562923 Available

  € 0,99

  Add to cart

16 Adjuster screw Available 269145

•

  Adjusting Screw Piaggio Group · 269145 Available

  € 2,86

  Add to cart
