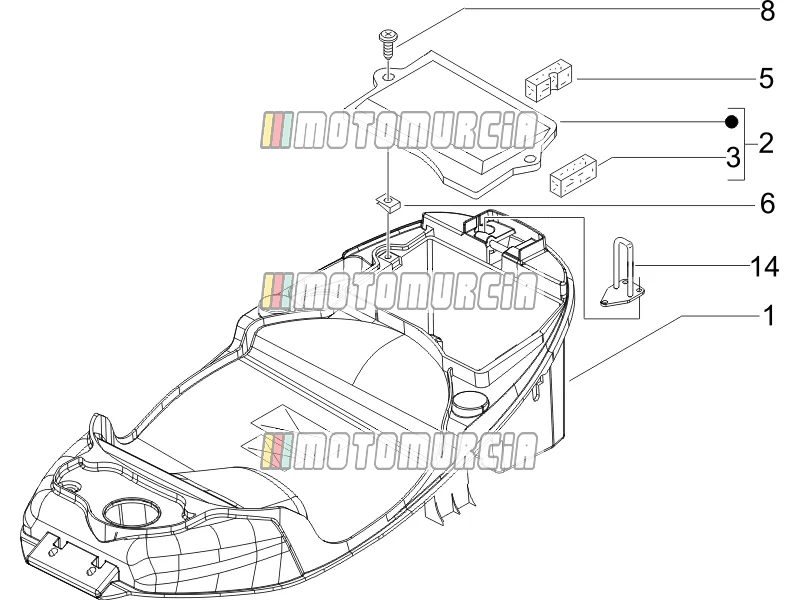

Exploded view — Helmet Huosing - Undersaddle

‹ Back to model

Piaggio Liberty 125 4T PTT 2007

Piaggio Liberty 125 4T PTT 2007

Helmet Huosing - Undersaddle

Products

1 Under seat cover Backorder 622422

Helmet Box Piaggio Group · 622422 Backorder

€ 132,43

2 Battery flap Available 622108

Battery Cover Piaggio Group · 622108 Available

€ 34,15

3 Damper Available 297446

Buffer Piaggio Group · 297446 · Quantity needed: 2 Available

€ 4,78

5 Damper Available 583310

Buffer Piaggio Group · 583310 Available

€ 8,08

6 Clip nuts Available CM017410

Sheet nut Piaggio Group · CM017410 · Quantity needed: 2 Available

€ 0,99

8 Screw (4,2x19) Available 258249

Sheet Metal Screw Piaggio Group · 258249 · Quantity needed: 2 Available

€ 0,99

14 Rear bracket Backorder 622421

Bracket Piaggio Group · 622421 Backorder

€ 23,46
