Exploded view — Carburettor, Assembly - Union Pipe

‹ Back to model

Piaggio Liberty 125 Sport 2006

Piaggio Liberty 125 Sport 2006

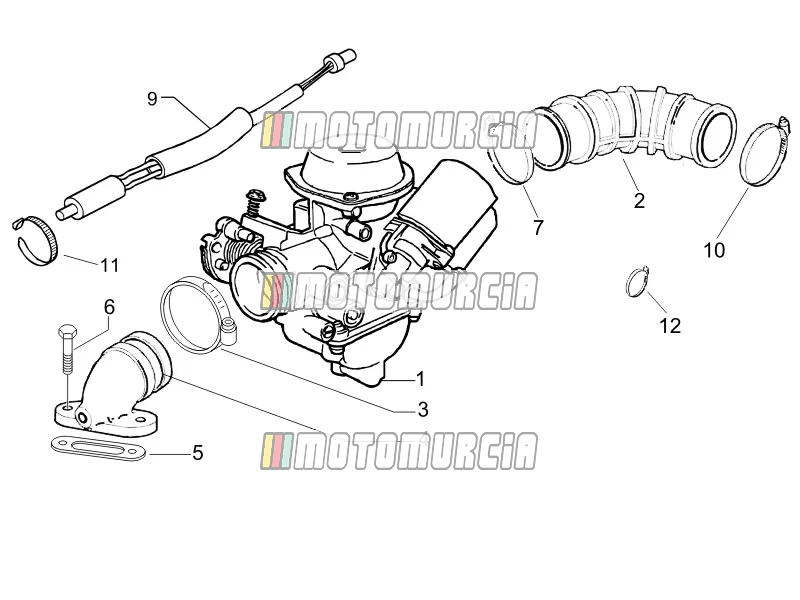

Carburettor, Assembly - Union Pipe

Products

1 Carburettor Available CM129213

Carburettor Keihin CVEK Piaggio Group · CM129213 Available

€ 467,39

2 Air bellow Available 829001

Intake Manifold Piaggio Group · 829001 Available

€ 30,31

3 Clamp Available 1A000833

Clamp Piaggio Group · 1A000833 Available

€ 10,74

4 Intake Manifold Available 849465

Intake manifold Piaggio Group · 849465 Available

€ 28,44

5 Intake manifold Gasket Available 871167

Gasket Piaggio Group · 871167 Available

€ 1,73

6 Screw (M6x22) Available 1A000352

Screw M6x22 Piaggio Group · 1A000352 · Quantity needed: 2 Available

€ 3,71

9 Resistor Module Available 82961R6

Resistor Piaggio Group · 82961R6 Available

€ 33,64

10 Clamp Available CM002902

Clamp Piaggio Group · CM002902 Available

€ 0,99

11 Lock-strap L=180mm Available 145298

Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available

€ 1,43

12 Clamp Available CM002903

Clamp Piaggio Group · CM002903 Available

€ 0,99
