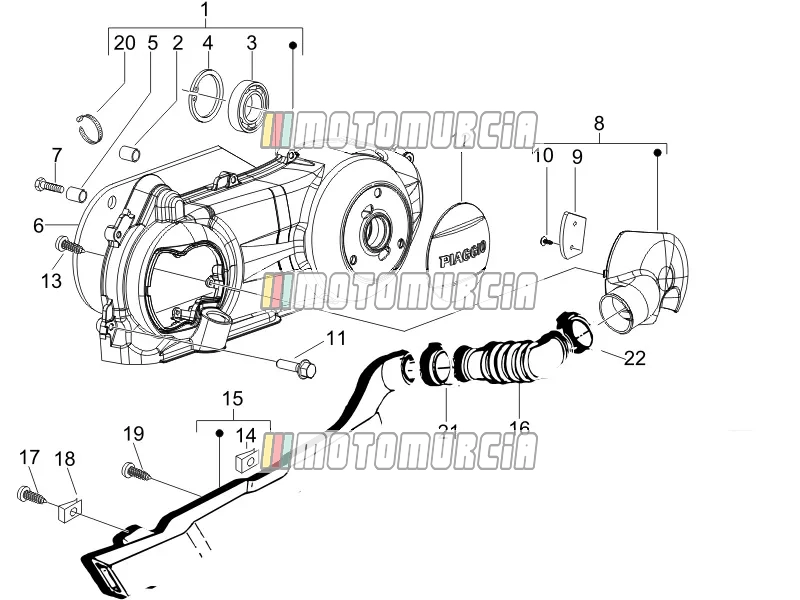

Exploded view — Crankcase Cover - Crankcase Cooling

Products

1 Transmission cover cpl. Available 8413805

•

  Housing cover Piaggio Group · 8413805 Available

  € 119,84

  Add to cart

2 Bush Ø8xØ12x8 Available 431860

•

  Bronze Bushes 8x12x8 Piaggio Group · 431860 Available

  € 1,65

  Add to cart

3 Bearing Available 4789853

•

  Radial bearing 15x35x11 mm Piaggio Group · 4789853 Available

  € 5,87

  Add to cart

4 Seeger Available 006635

•

  Snap-in Ring Piaggio Group · 006635 Available

  € 1,84

  Add to cart

5 Dowel pin Available B015956

•

  Adapter Sleeve 9,5x15 Piaggio Group · B015956 · Quantity needed: 2 Available

  € 1,32

  Add to cart

6 Air deflector Backorder 873682

•

  Air Guide Plate Piaggio Group · 873682 Backorder

  € 17,17

  Add to cart

7 Screw Available 430264

•

  Oval Head Screw M5x10 Piaggio Group · 430264 Available

  € 0,99

  Add to cart

8 Cooling Cover Available 842090

•

  Lid Piaggio Group · 842090 Available

  € 21,57

  Add to cart

9 Air filter - belt cover Available 842093

•

  Filter Insert Piaggio Group · 842093 Available

  € 3,88

  Add to cart

10 Screw Available 258146

•

  Thread Screw Piaggio Group · 258146 · Quantity needed: 2 Available

  € 0,99

  Add to cart

11 Screw Available B016792

•

  Flanged Screw M6x30 Piaggio Group · B016792 · Quantity needed: 9 Available

  € 1,48

  Add to cart

12 Plug Available CM155110

•

  Lid Piaggio Group · CM155110 Available

  € 8,55

  Add to cart

13 Screw Available 270793

•

  Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 3 Available

  € 0,99

  Add to cart

14 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 Available

  € 0,99

  Add to cart

15 Intake pipe Available 621199

•

  Inlet pipe Piaggio Group · 621199 Available

  € 49,23

  Add to cart

16 Suction bellows Backorder 621261

•

  Intake Manifold Piaggio Group · 621261 Backorder

  € 28,31

  Add to cart

17 Screw (4,2x19) Available 258249

•

  Sheet Metal Screw Piaggio Group · 258249 Available

  € 0,99

  Add to cart

18 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

19 Screw Available 259348

•

  Oval Head Screw Piaggio Group · 259348 Available

  € 1,08

  Add to cart

20 4 - Hose clamp Available 844964

•

  Clamp Piaggio Group · 844964 Available

  € 2,27

  Add to cart

21 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 · Quantity needed: 2 Available

  € 1,43

  Add to cart

22 Hose clamp Available 257134

•

  Cable Ties length: 27,7cm Piaggio Group · 257134 · Quantity needed: 2 Available

  € 0,99

  Add to cart
